A Deep Dive into the 2003-2010 Pontiac Vibe Transmission Filter Kit
Keep your Vibe's Toyota-built automatic transmission shifting smoothly by understanding and choosing the right filter kit.
- Confirm your Vibe's specific transmission (FWD, AWD, 1.8L, 2.4L) before buying a kit, as they are not all the same.
- Replacing the filter is always better than cleaning it, and allows you to clean the pan magnets and change more of the old fluid.
- Use the correct transmission fluid type (Toyota T-IV or WS), as using the wrong fluid can cause serious damage.
- High-quality aftermarket brands like Wix and Beck Arnley offer excellent performance and are a reliable alternative to more expensive OEM parts.
Understanding Your Vibe's Transmission
The 2003-2010 Pontiac Vibe is mechanically a twin to the Toyota Matrix, which means it uses a dependable Toyota automatic transmission. However, not all Vibes are the same. Depending on the year, engine, and drivetrain (FWD or AWD), you could have one of several different transmissions. This is the most important thing to know when buying a new filter kit.
- 2003-2008 1.8L FWD (Base): Typically uses a 4-speed A246E transmission.
- 2003-2008 1.8L AWD: Uses a 4-speed U341F transmission.
- 2009-2010 1.8L FWD: Uses a 4-speed transmission.
- 2009-2010 2.4L FWD (Base, GT): Uses a 5-speed automatic transmission.
- 2009-2010 2.4L AWD: Uses a 4-speed automatic transmission. 🎬 See this walkthrough for 2009-2010 Vibe transmission service.
Pro Tip: Before ordering, the best way to be sure is to check your vehicle's specifications or have your VIN ready. Some owners on forums suggest counting the transmission pan bolts to confirm which kit you need.
Symptoms of a Clogged Transmission Filter
When a transmission filter gets clogged, it restricts fluid flow. This can starve the transmission of the pressure it needs to function correctly. Look out for these signs:
- Delayed or Harsh Shifting: The car may hesitate before going into gear or shift with a noticeable clunk.
- Whining or Buzzing Noises: A restricted filter can cause the transmission pump to work harder, leading to unusual noises.
- Slipping Gears: The transmission may unexpectedly slip out of gear while driving.
- Leaking Fluid: While not a direct symptom of a clogged filter, it's often discovered during a service for a leaking pan gasket.
- Check Engine Light: In some cases, severe transmission performance issues can trigger a trouble code. 🎬 Watch: Diagnosing transmission solenoid codes on a 2.4L Vibe.
Is the Filter a Screen or Paper?
There is some debate in owner forums about the filter material. Some base model FWD Vibes may have a simple metal screen that can be cleaned. However, AWD and GT models often use a filter with fabric or paper media that must be replaced. Given the low cost of a new kit and the labor involved, it is always recommended to replace the filter rather than cleaning it.

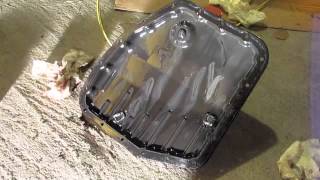

🎬 Watch: Step-by-step guide to changing your Vibe's filter and fluid.Choosing the Right Aftermarket Brand
Since the Vibe uses a Toyota powertrain, high-quality aftermarket parts are widely available and often meet or exceed original specifications. You don't necessarily need to pay dealer prices for a reliable part.

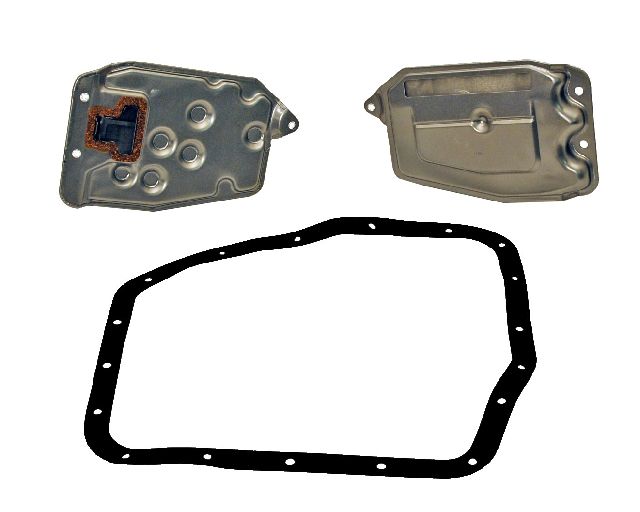

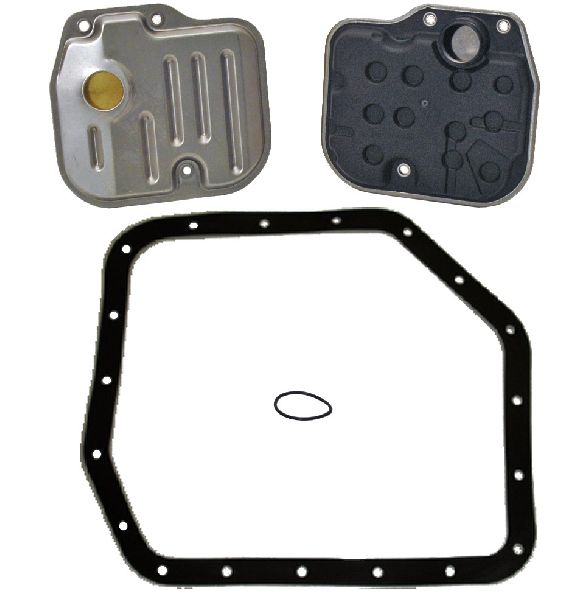

- Premium Tier (Wix, Beck Arnley): These brands are well-regarded by mechanics and DIYers. Beck Arnley is known for sourcing parts that match the original equipment (OE) form and fit. Wix is a top-tier filter manufacturer. You can trust these brands for quality and longevity.
- Standard Tier (ATP, Premium Guard): These are solid, budget-friendly options that offer good performance for daily driving. They are a popular choice and provide a good balance of price and quality.
- Economy Tier (Vaico, various store brands): These kits are the most affordable. They will get the job done, but pay close attention to the gasket material. A lower-quality cork gasket may not last as long as a premium rubber one.
| Brand | Typical Quality Tier | Common Gasket Type | Notes |
|---|---|---|---|
| Wix | Premium | Rubber | Known for excellent filter media. |
| Beck Arnley | Premium | Rubber | Focuses on OE-matching parts. |
| ATP | Standard | Fiber/Rubber | Often praised for their gasket quality. |

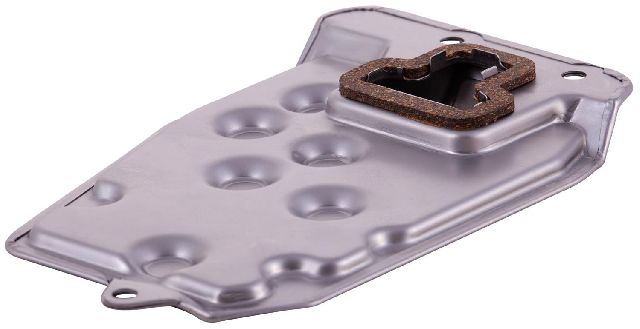

| Premium Guard | Standard | Varies | A reliable mid-range option. |
| Vaico | Economy | Varies (Check kit) | A budget-friendly choice. |
Frequently Asked Questions (FAQ)
How often should I change my Vibe's transmission filter?
While some fluids are marketed as "lifetime," it's good practice to service the transmission. Many mechanics recommend a filter and fluid change every 60,000 to 90,000 miles for preventative maintenance. If you notice any symptoms, you should have it checked immediately.
Can I just do a fluid drain-and-fill instead of changing the filter?
A simple drain-and-fill only replaces about a third of the total fluid, leaving old, dirty fluid in the torque converter. Dropping the pan to replace the filter allows for a more complete fluid change and lets you clean the pan magnets, which collect metal shavings.
What kind of transmission fluid does my 2003-2010 Vibe need?
This is critical. First-generation models (2003-2008) typically use Toyota Type T-IV fluid. Second-generation models (2009-2010) often require Toyota WS (World Standard) fluid. The owner's manual for some 2nd-gen Vibes is known to be incorrect. Always check the transmission dipstick or consult a reliable source for the correct fluid type to avoid damaging your transmission.
Is a new gasket always included in the kit?
Yes, a "kit" should always include the filter and a new pan gasket. Some kits may also include a new drain plug washer. Pay attention to the gasket material—premium rubber gaskets are generally more durable and reusable than cork or paper.
Are there any recalls for the Pontiac Vibe transmission?
Searches of the NHTSA database did not show any recalls specifically for the transmission filter or widespread transmission failure on the 2003-2010 Pontiac Vibe. Most recalls for this vehicle concern airbags.
Helpful Videos
Technical Specifications
OEM Part Numbers: 88972067 19205499 88971813 35330-12040 35330-0W020 35330-0W021
Vehicle-specific fitment is critical. The Pontiac Vibe was produced with several different Toyota automatic transmissions between 2003 and 2010, including the A246E, U341F, and 5-speed units for 2.4L models. The filter and pan gasket shape are unique to each transmission. Always verify the part fits your exact year, engine, and drivetrain combination.
