A Guide to the Engine Intake Manifold Gasket for the 2003-2010 Toyota 4Runner
Understanding the signs of a bad intake manifold gasket and how to choose the right replacement for your V6 or V8 4Runner.
- A failing intake manifold gasket will most likely cause a Check Engine Light with lean codes (P0171, P0174) and a rough idle.
- Both the V6 and V8 engines have different gaskets; ensure you buy the correct part for your 4Runner.
- High-quality aftermarket brands like Beck Arnley and Victor Reinz are reliable alternatives to OEM parts.
- While the part is affordable, replacement is labor-intensive, so it's wise to choose a quality gasket to avoid repeat repairs.
Is Your 4Runner's Intake Manifold Gasket Failing?
The intake manifold gaskets on the 4th generation Toyota 4Runner are durable, but they can fail over time due to age and constant exposure to heat. When they fail, they typically cause vacuum leaks or coolant leaks. The most common signs are directly related to an improper air-fuel mixture or loss of coolant.
Key Failure Symptoms:
- Check Engine Light: This is often the first sign. A vacuum leak will cause the engine to run lean (too much air), triggering codes like P0171 and P0174. 🎬 Watch this full diagnosis and repair of a P0174 lean code.
- Rough Idle: Your 4Runner may shake or idle unevenly at stop lights because the unmetered air makes the engine unstable.
- Hissing Noise: A distinct hissing or whistling sound from the engine bay, especially when the engine is running, points to air being sucked through a gap in the failed gasket.
- Coolant Loss or Overheating: Since the gasket seals coolant passages on V6 and V8 engines, a failure can cause coolant to leak externally or internally. This can lead to a slowly dropping coolant level or, in severe cases, engine overheating.
V6 vs. V8 Engines
The 2003-2010 4Runner was available with a 4.0L V6 (1GR-FE) and a 4.7L V8 (2UZ-FE). These engines use different intake manifold gaskets. Always verify you are purchasing the correct gasket set for your specific engine, as they are not interchangeable.

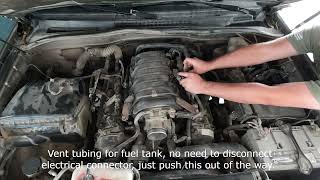

🎬 Watch how to remove the intake manifold on V8 engines.Choosing the Right Aftermarket Gasket
While you can always use a genuine Toyota (OEM) gasket, high-quality aftermarket brands offer reliable performance, sometimes at a better price. For a part like this, where labor is a significant part of the cost, choosing a quality gasket is important to avoid doing the job twice.
Aftermarket Brand Tiers

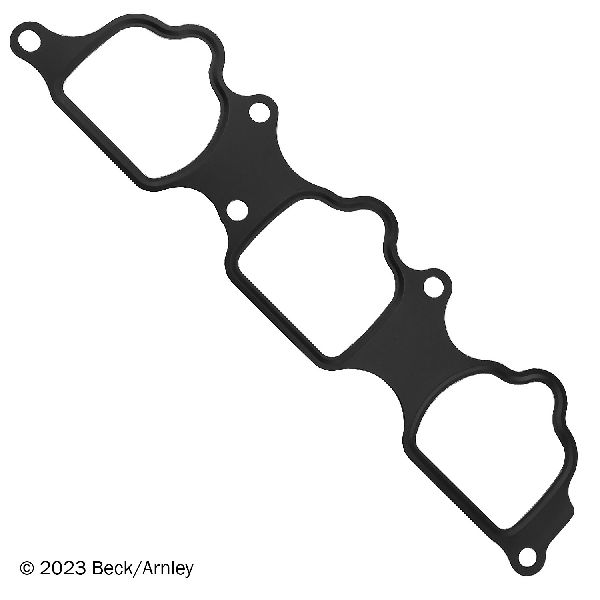

- OEM-Equivalent Brands (Beck Arnley, Reinz): Brands like Beck Arnley and Victor Reinz have a strong reputation for producing parts that meet or exceed original equipment quality. Beck Arnley, in particular, is often known for repackaging parts from the original Japanese manufacturers. These are a safe and reliable choice for most owners.
- High-Performance (Cometic Gasket): Cometic is known for making gaskets from advanced materials designed for high-performance and heavy-duty applications. Their gaskets often feature multi-layer steel (MLS) or nitrile rubber bonded to an aluminum core, providing excellent durability and sealing. This is a premium option if you want maximum longevity.
- Standard Aftermarket (Apex): Brands like Apex offer a cost-effective solution for repairs. While less information is available from owner reviews, they are designed to be a direct replacement for the factory part.
Pro Tip: When replacing the intake manifold gaskets, it's a good time to clean the throttle body and intake manifold passages. You might also consider replacing other nearby wear items, like the PCV valve or vacuum hoses, since you will already have easy access.
Cost to Replace a 4Runner Intake Manifold Gasket
The total cost depends on whether you do it yourself or use a repair shop. The parts themselves are not very expensive, but the job requires a moderate amount of labor.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Gasket Set | $30 - $103 |
| New OEM Gasket Set | $50 - $120 |
| Shop Labor | $320 - $470 |
| Total Professional Replacement | $350 - $590 |
Frequently Asked Questions
Are there any recalls for the 4Runner intake manifold gasket?
No, there are no recalls from Toyota or NHTSA for the intake manifold gasket on the 2003-2010 4Runner. Failures are typically due to normal aging and wear.
Can I replace the intake manifold gasket myself?
Yes, this is a feasible DIY job for someone with moderate mechanical experience. The process involves removing the air intake system, throttle body, fuel rails, and various electrical connectors and hoses to access the manifold. It requires careful work but no highly specialized tools.
🎬 See this step-by-step walkthrough of the upper intake gasket replacement.Should I use sealant on the new gaskets?
Most modern intake manifold gaskets are designed to be installed dry and do not require any additional sealant. Using sealant where it's not specified can sometimes cause the gasket to slip or fail prematurely. Always follow the instructions included with your specific gasket set.
What are the torque specs for the intake manifold bolts?
Proper torque is crucial for a good seal. One source mentions a torque value of 21 ft-lbs for the manifold bolts, applied in a staggered sequence. However, you should always verify the correct torque specification for your specific year and engine (V6 or V8) in a reliable service manual.
Helpful Videos
Technical Specifications
OEM Part Numbers: 17171-50030 (4.7L V8) 17177-AD010 (4.0L V6) 17176-31100 17178-31040 17177-31050
Gaskets are specific to the 4.0L 1GR-FE V6 and 4.7L 2UZ-FE V8 engines. Materials vary by brand, including multi-layer steel (MLS), rubber-coated aluminum, and composite materials.
