Ford E-450 Super Duty Engine Camshaft Position Sensor Guide (2003-2011)
Prevent stalling and no-start issues by understanding your E-450's camshaft sensor.
- For E-450s with a 7.3L or 6.0L Power Stroke diesel, using an OEM Motorcraft sensor is strongly recommended to avoid stalling issues.
- A failing sensor can cause dangerous engine stalling while driving; do not ignore the symptoms.
- Always verify your specific engine (e.g., 5.4L V8, 6.8L V10, 6.0L Diesel) before purchasing, as the part can differ.
- Common trouble codes like P0340 or P0344 point to the cam sensor circuit, but the root cause could also be wiring or a faulty part.
Is Your E-450 Stalling or Running Rough? It Could Be the Camshaft Position Sensor
If you own a 2003-2011 Ford E-450 Super Duty, you have a workhorse vehicle. But even the toughest trucks have parts that wear out. The camshaft position sensor (CMP) is a small but vital component that can cause big problems when it fails. Symptoms often start small, like a rough idle or slight hesitation, but can quickly escalate to the engine stalling while driving or refusing to start at all. 🎬 Watch a breakdown of common bad camshaft sensor symptoms. Understanding the signs of failure and how to choose the right replacement part is key to keeping your E-450 on the road.
Engine Differences Matter
The 2003-2011 E-450 was available with several different engines, including the 5.4L V8 and 6.8L V10 gasoline engines, and the 7.3L and 6.0L Power Stroke diesel engines. The specific part number and location of the camshaft position sensor can vary depending on which engine your vehicle has. Always verify your engine type before ordering a new sensor to ensure you get the correct part.
Known Issues: 7.3L Power Stroke Recall
Ford issued a recall for the camshaft position sensor on 1997-2003 vehicles equipped with the 7.3L Power Stroke diesel engine, which includes early models in this year range. The original sensors were prone to intermittent failure, which could cause the engine to stall without warning, creating a serious safety risk. If you have a 7.3L model, it is crucial to ensure this recall has been performed or to use a high-quality replacement sensor, preferably an OEM Motorcraft part, to avoid these issues.
Choosing the Right Aftermarket Sensor
When it comes to critical sensors, quality matters. While many aftermarket options are available, they are not all created equal. For an essential component like the camshaft position sensor, especially on diesel models, choosing a reputable brand can save you from future headaches.
- Premium Brands (Delphi, Denso, NGK): These companies are often Original Equipment (OE) suppliers to major automakers. Their parts are engineered to meet or exceed factory specifications and are a trusted choice for reliability and performance.
- Professional-Grade Aftermarket (Standard Ignition, Walker Products): Brands like Standard Motor Products (SMP) have a long-standing reputation in the aftermarket for producing quality components that are reliable and often more affordable than OE parts.
- Economy Brands (Dorman, URO Parts, True Tech): While budget-friendly, these brands can be a gamble. Forum discussions among Ford truck owners frequently warn against using cheaper sensors, especially on Power Stroke engines, as they have a higher rate of premature failure or being dead-on-arrival (DOA). While they might work for a gas engine in a pinch, they are generally not recommended for a critical work vehicle.
Pro Tip: OEM is Often Best for Diesels
For the 7.3L and 6.0L Power Stroke diesel engines, the consensus among mechanics and experienced owners is to use a genuine Motorcraft sensor. Aftermarket sensors have a well-documented history of failing on these engines, leading to the same stalling and no-start conditions you were trying to fix. Spending a little more on the OEM part provides significant peace of mind.
How Much Does a Replacement Cost?
The cost will vary based on the part's brand and labor rates in your area. The part itself is relatively inexpensive, but accessing it can sometimes be tricky, which affects the labor charge.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Part | $13.76 - $126.48 |
| New OEM (Motorcraft) Part | $45 - $150 |
| Shop Labor | $90 - $180 |
| Total Estimated Cost | $104 - $330 |
Frequently Asked Questions
Can I replace the camshaft position sensor myself?
Yes, for most E-450 engines, this is a DIY-friendly job. The sensor is typically held in by a single bolt (usually 8mm or 10mm) and has an accessible electrical connector. On some engines, like the 6.0L Power Stroke, access can be tight, requiring you to work through the driver's side fender well with an extension. For gasoline engines, it's often located on the front of one of the cylinder heads. The job typically takes less than an hour.

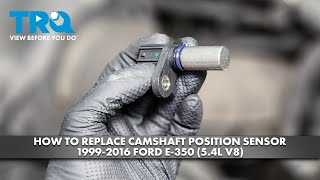

🎬 See how to replace the sensor on a Ford V8.What happens if I don't replace a failing sensor?
Ignoring a bad camshaft sensor is not recommended. The symptoms will likely worsen over time. You may experience reduced fuel economy, poor acceleration, and engine misfires. The most significant risk is the engine stalling unexpectedly while driving, which can be extremely dangerous. Eventually, the vehicle may fail to start at all.
My check engine light is on. How do I know it's the cam sensor?
A check engine light is the most common symptom. An OBD-II scanner can read the diagnostic trouble code (DTC). Codes like P0340 (Camshaft Position Sensor 'A' Circuit Malfunction) and P0344 (Camshaft Position Sensor 'A' Circuit Intermittent) point directly to a problem in the camshaft sensor circuit. However, these codes can also be caused by wiring issues or, in some cases, a problem with the engine's timing components, so a full diagnosis is always best.
🎬 Learn how to fix P0340 and P0344 engine codes.I replaced the sensor, but the problem is still there. What now?
If a new sensor doesn't fix the issue, you may have a different problem. First, check the wiring and connector leading to the sensor for damage, corrosion, or a loose connection. Second, if you used a low-quality aftermarket sensor, it might be faulty out of the box; try a higher-quality brand. Finally, the issue could be more serious, such as a problem with the timing chain, phasers, or the PCM itself, which requires a professional diagnosis.
Helpful Videos
Technical Specifications
OEM Part Numbers: KR3Z-6B288-A 7L3Z6B288A F7TZ-12K073-B 3C3Z-6C315-AA
The sensor is typically a Hall-effect or variable reluctance type, held by a single bolt, with a 2 or 3-pin electrical connector.
