A Guide to Your 2003-2011 GMC Yukon Instrument Cluster Upgrade
If your Yukon's gauges are sticking, dead, or giving you trouble, this guide explains your options for a reliable fix.
- Instrument cluster failure in 2003-2011 Yukons is very common due to faulty factory stepper motors.
- Aftermarket remanufactured clusters from brands like Motormite (Dorman) are a popular, reliable fix as they use upgraded components.
- When replacing the entire cluster, ensure it is programmed with your vehicle's VIN and mileage to avoid issues.
- Replacing the cluster is a simple DIY job that takes less than an hour, but repairing the internal components requires soldering skills.
Common Instrument Cluster Problems in 2003-2011 Yukons
If you own a Yukon from this era, you've likely experienced or heard about the instrument cluster issues. These problems are extremely common, especially in the 2003-2006 models, due to faulty original components. Here’s what typically goes wrong:
- Sticking or Erratic Gauges: The speedometer, tachometer, or other gauges may get stuck, jump around wildly, or show incorrect readings. This is the most frequent complaint.
- Dead Gauges: One or more gauges stop working entirely.
- Dim or Dead Backlighting: The lights behind the gauges burn out, making the cluster impossible to read at night.
- Complete Cluster Failure: In some cases, the entire instrument panel goes dark and stops responding.
What Causes the Failure?
The primary cause of gauge failure in these Yukon models is defective stepper motors. These small motors control the movement of each needle on your cluster. The original factory motors were prone to premature failure. Other issues can include cracked solder joints on the main circuit board, which can cause power loss to backlighting or the digital display (PRNDL).
Known Issues, Recalls, and Technical Service Bulletins (TSBs)
There was no formal recall for this issue. However, the problem was so widespread that General Motors issued a "Special Coverage Adjustment" (Program #07187). This program extended the warranty for the instrument cluster on certain 2003-2005 models to 7 years or 70,000-80,000 miles. This program has since expired for all eligible vehicles, meaning owners are now responsible for the cost of repairs.
Choosing the Right Aftermarket Solution: Repair vs. Replace
Since the OEM parts had known flaws, the aftermarket has developed better, more reliable solutions. Your main choice is between a full replacement cluster and a repair kit.
- Complete Aftermarket Cluster (e.g., Motormite/Dorman): This is a pre-assembled unit that is ready to install. These clusters are typically remanufactured and feature upgraded stepper motors that are more durable than the originals. This is the simplest option, as it's a direct swap. Some even offer upgrades like custom faceplates or LED backlighting.

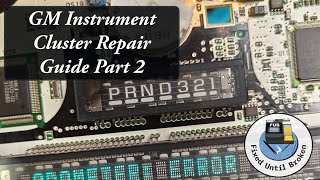

- Repair/Upgrade Kit: This option includes the parts needed to fix your existing cluster, such as a set of new stepper motors and replacement light bulbs. This is a more hands-on repair that requires you to take the cluster apart and use a soldering iron to replace the motors. 🎬 See how to install new stepper motors and repair your speedometer. It's more affordable but requires some technical skill.
A Note on Programming: Your Yukon's mileage is stored in the instrument cluster. When you replace the entire unit, the new cluster must be programmed with your vehicle's correct mileage and VIN. Many aftermarket suppliers offer a service to pre-program the cluster before shipping it to you, making the installation plug-and-play. If you buy a used cluster from a junkyard, you will need to have it programmed by a professional.
| Part/Service | Estimated Cost |
|---|---|
| New OEM Cluster | $600 - $1,000+ |
| New Aftermarket Cluster (Remanufactured) | $250 - $760 |
| Aftermarket Repair Kit (Stepper Motors) | $100 - $150 |
| Shop Labor for Replacement | $100 - $200 |
| Shop Labor for Rebuild/Repair | $150 - $300 |
Frequently Asked Questions (FAQ)
Is replacing the instrument cluster a DIY job?

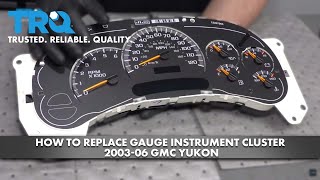

Yes, for many people it is. The process involves removing the dash trim, unscrewing four 7mm screws, and unplugging a single electrical connector. The entire removal and replacement can often be done in under 30 minutes. 🎬 Watch this step-by-step guide to replacing your Yukon's instrument cluster. However, if you are repairing the cluster by replacing the internal stepper motors, it requires desoldering and soldering on the circuit board, which is more difficult.
Should I buy a used cluster from a junkyard?
It's an option, but it's risky. A used cluster from a similar year Yukon likely has the same faulty stepper motors as your original one and could fail soon. It will also have the mileage from the donor vehicle, which will need to be reprogrammed. A remanufactured aftermarket cluster with upgraded components is a more reliable long-term solution.
What is a core charge?
When you buy a remanufactured instrument cluster, you will often see a 'core charge' of a few hundred dollars. This is a deposit that you get back when you send your old, broken cluster back to the supplier. This allows them to rebuild it for another customer.
Will an aftermarket cluster have all my original gauges?
Most aftermarket clusters are designed to be direct replacements. Some even offer an upgrade to add a transmission temperature gauge if your Yukon didn't originally have one activated, as the sensor is already present on the vehicle. Always confirm the gauge layout matches your vehicle before purchasing.

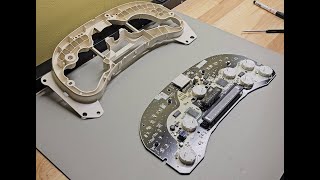

🎬 Watch a demonstration of instrument cluster repairs and custom modifications.Helpful Videos
Technical Specifications
The primary failure point is the X27.168 series stepper motors used in the original cluster. Replacement involves a single main wiring harness connector. The unit is secured by four 7mm screws.
