Honda Element Engine Oil Pressure Switch Guide for 2003-2011 Models
Seeing a flickering oil light on your Element's dashboard? It could be a simple fix.
- A flickering oil light is the most common symptom, but always check your oil level first.
- This is a simple DIY replacement located just above the oil filter, accessible from the passenger wheel well.
- Do not confuse the main oil pressure switch with the VTEC pressure switch; they serve different functions and trigger different warnings.
- For this critical part, choosing a Genuine Honda or a high-quality aftermarket brand like Beck Arnley is strongly recommended over cheaper options.
Is Your Oil Light On? Understanding the Problem
The engine oil pressure switch on the 2003-2011 Honda Element is a common part to fail. It can fail in two main ways: it can stop sending a correct signal, or it can start leaking oil. A flickering oil light at idle, especially when the engine is warm, 🎬 See why your oil light blinks even with full oil. is a classic sign of a failing switch. However, an oil light can also mean your engine has dangerously low oil pressure. You should always check your oil level immediately when this light comes on.
Symptoms of a Bad Engine Oil Pressure Switch
Look out for these signs that your Element's oil pressure switch needs replacement:
- Flickering Oil Light: The red oil light on your dash may flicker or stay on, especially at low RPMs like when you're stopped at a light.
- Oil Leaks: You may notice oil on the switch itself, the electrical connector, or dripping onto the floor from the passenger side of the engine. The switch is located just above the oil filter.
- Check Engine Light: In some cases, a faulty switch can trigger the Check Engine Light. A common trouble code associated with this is P0522.
Warning: VTEC Switch vs. Oil Pressure Switch
Your Element has two different oil pressure switches. The one this article covers triggers the red oil light on the dash. There is another switch on the VTEC solenoid assembly (also called a spool valve). A bad VTEC switch will not turn on the oil light but will cause a Check Engine Light with codes like P2646 or P2647 and may limit your engine RPMs. Do not confuse these two parts.
Choosing the Right Aftermarket Part
When it comes to critical sensors, quality matters. A cheap switch could fail to warn you of a real oil pressure problem, leading to catastrophic engine failure. Here’s a breakdown of available brands:
- Genuine Honda (OEM): This is the original part your Element was built with. It offers the best fit and reliability but is also the most expensive option. Many mechanics recommend using the OEM part for this specific sensor.
- Beck Arnley: A top-tier aftermarket brand known for sourcing parts directly from OEM manufacturers. Often, you get an OEM-quality part in a Beck Arnley box, making it a trusted alternative.
- Standard Ignition (SMP): A well-respected brand that produces reliable aftermarket sensors and is a solid choice.
- URO Parts / Value Brands: These are the most affordable options. While tempting, they may have a higher failure rate or be more prone to leaking. For a part this critical, it's often worth spending more for a better brand.
Pro Tip: Check the Socket Size
The original Honda switch typically requires a 24mm deep socket for removal. 🎬 Watch this DIY walkthrough to see the tools in action. Some aftermarket switches may use a different size, like 27mm. It's a good idea to have the new part in hand before you start the job to make sure you have the correct tool.
Cost to Replace an Engine Oil Pressure Switch
| Part or Service | Estimated Cost |
|---|---|
| New OEM (Genuine Honda) | $45 - $120 |
| New Aftermarket | $10 - $60 |
| Shop Labor | $60 - $120 |
| Total Professional Replacement | $70 - $240 |
Frequently Asked Questions
Where is the engine oil pressure switch located?
On the 2003-2011 Honda Element, the switch is located on the back of the engine block, just above the oil filter. You can access it by removing the front passenger-side wheel.

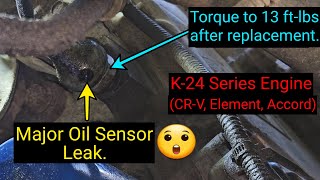

🎬 Watch: Step-by-step oil pressure sensor replacement for K24 engines.Can I replace the oil pressure switch myself?
Yes, this is a good DIY job for beginners. It usually takes less than an hour and requires basic tools, including a special socket. Be careful not to over-tighten the new switch, as this can damage the engine block.
Is it safe to drive with a flickering oil light?
It is not recommended. A flickering light could be a faulty sensor, but it could also be a sign of real, dangerously low oil pressure that can destroy your engine. You should stop the vehicle, check the oil level, and get the problem diagnosed as soon as possible.
Are there any recalls for the Honda Element oil pressure switch?
No, there are no specific recalls from Honda or NHTSA for the engine oil pressure switch on the 2003-2011 Honda Element.
Helpful Videos
Technical Specifications
OEM Part Numbers: 37240-PZA-003 37240-PT0-014 37240-PT0-023 37240-PHM-003
Location: Engine block, above oil filter. Socket Size: 24mm (OEM), may vary for aftermarket. Function: Triggers low oil pressure warning light.
