Jeep Wrangler TJ & JK HVAC Blower Motor Replacement Guide (2003-2011)
Fix the squealing, chirping, or dead fan in your Jeep Wrangler's dashboard.
- If the fan only works on high, replace the blower motor resistor, not the motor.
- This is a very easy DIY repair that usually takes less than 30 minutes and saves over $100 in labor.
- The part is different for 2003-2006 (TJ) and 2007-2011 (JK) Wranglers; ensure you order for your specific year.
- Noise from the passenger dash that changes with fan speed is the most common sign of a failing blower motor.
Is Your Jeep's Blower Motor Failing?
If the fan in your 2003-2011 Jeep Wrangler has stopped working, started making noise, or only works some of the time, the blower motor is the likely culprit. This is a common failure item, but it's also one of the easiest parts to replace on your own. Before you buy, it's important to properly diagnose the problem and understand the key differences between the parts for this year range.
First, Check the Blower Motor Resistor
If your fan only works on the highest speed setting, the problem is almost certainly the blower motor resistor, not the motor itself. This is a very common and inexpensive part to fail. Replacing the motor will not fix this specific issue. The resistor is located right next to the blower motor and is also simple to replace.
🎬 Watch: Step-by-step guide to replacing the TJ blower motor resistor.Symptoms of a Bad Blower Motor
- Strange Noises: A worn-out motor bearing is the most common cause of failure. You'll hear a squealing, chirping, grinding, or buzzing sound from the passenger side of the dash that changes with the fan speed.
- Weak or No Airflow: The fan doesn't blow air from the vents on any speed, even though you can hear the A/C compressor or other parts of the system running.
- Intermittent Operation: The fan works sometimes and not others. Often, giving the housing under the passenger-side dash a good whack will make it start working temporarily. This is a classic sign that the motor's internal components are worn out.
Choosing the Right Aftermarket Blower Motor
The 2003-2011 year range covers two different Wrangler generations: the TJ and the JK. They use different blower motors. You must order the correct part for your specific year.
Generation Differences:

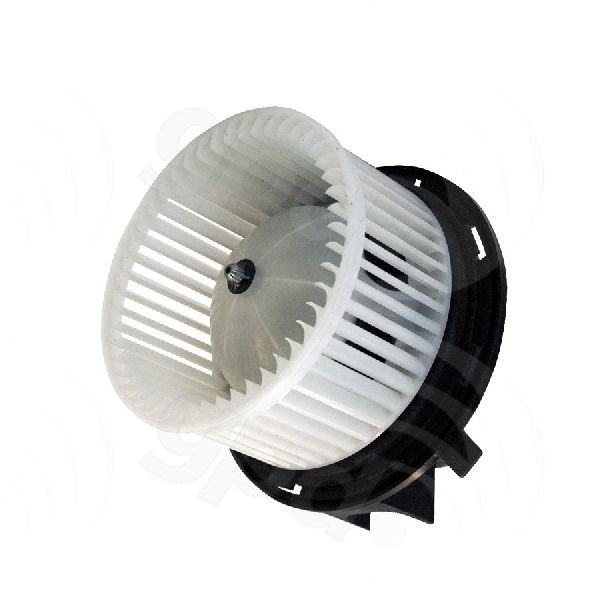

- 2003-2006 Jeep Wrangler (TJ): This model uses a blower motor that typically twists and locks into the HVAC housing under the passenger dash. A failing motor in a TJ can draw too much power and melt the fan speed switch or wiring, so it's important to inspect the connectors. 🎬 See this walkthrough for replacing the blower motor on a TJ.

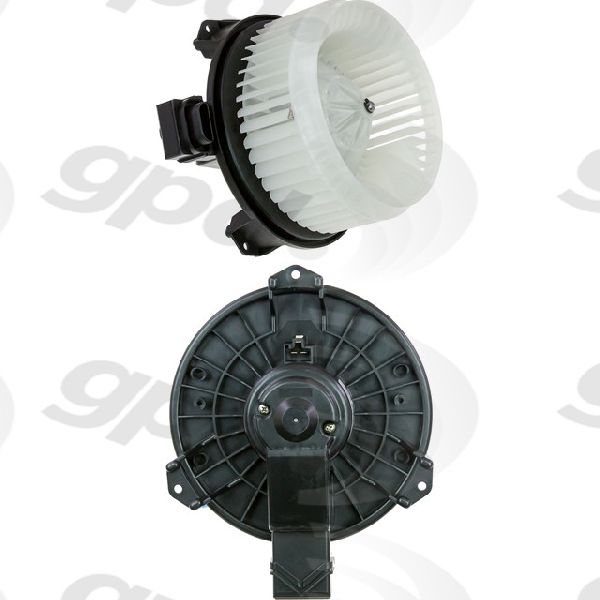

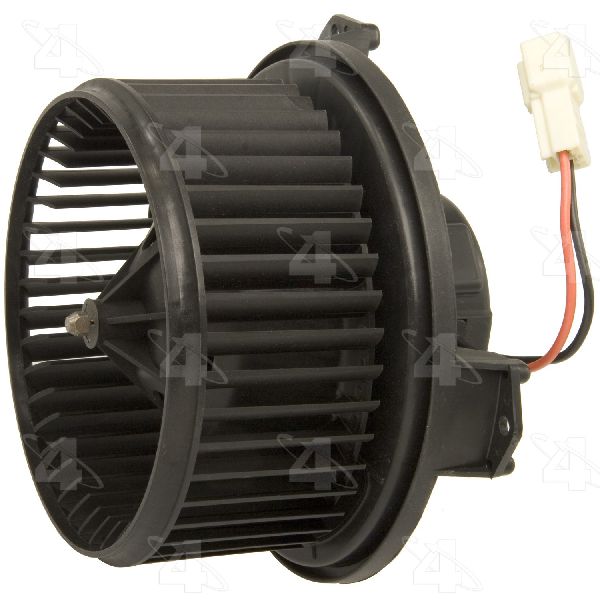

- 2007-2011 Jeep Wrangler (JK): This model uses a blower motor held in by three T20 Torx screws under the passenger-side dash. The replacement is extremely straightforward. 🎬 Watch: Quick diagnosis and replacement for 2007-2011 JK models.
Aftermarket Brand Tiers
For a part like this, the main difference between OEM and aftermarket is often noise level and price. Some owners report that cheaper aftermarket motors can be noisy right out of the box, while others find the cost savings to be worth it.
- Premium Aftermarket (e.g., Four Seasons): Brands like Four Seasons are large, reputable HVAC component manufacturers. They are a solid choice that balances quality and cost.
- Jeep-Specific Brands (e.g., Crown, Omix-Ada): These brands specialize in Jeep parts and are very popular in the community. They offer a direct-fit replacement that meets original specifications and are a reliable choice for most owners.
- Value Brands (e.g., Global Parts): These offer the most budget-friendly option. While perfectly functional, they may have a higher chance of being slightly noisier than an OEM or premium part. For a trail rig or a budget repair, they get the job done.
| Part Type | Price Range |
|---|---|
| New Aftermarket | $66 - $78 |
| New OEM (Mopar) | $140 - $360 |
| Shop Labor | $100 - $150 |
Pro Tip: Easy DIY Replacement
Replacing the blower motor in both the TJ and JK Wrangler is a very easy DIY job that requires only basic tools and about 30 minutes. The motor is located under the passenger dashboard and is held in by a few screws or a twist-lock mechanism. Doing it yourself can save you over $100 in labor costs.
Frequently Asked Questions
Is the blower motor the same for all 2003-2011 Wranglers?
No. The 2003-2006 TJ and 2007-2011 JK use different parts. The TJ motor often twists into place, while the JK motor is secured with three screws. You must buy the part specified for your exact year.
Why does my fan only work on high?
This is a classic symptom of a failed blower motor resistor, not the motor itself. The resistor controls the lower fan speeds, while the high setting bypasses it and gets full battery voltage. The resistor is a small, inexpensive part located next to the blower motor.
Can a bad blower motor cause other damage?
Yes, particularly on the Wrangler TJ. As the motor ages and starts to fail, it can draw excessive electrical current. This can overheat and melt the wiring connector, the blower motor resistor, and even the fan speed switch in the dashboard. When you replace the motor, it's wise to inspect the wiring for any signs of melting or damage.
Do I need any special tools to replace the blower motor?
No. For a 2007-2011 JK, you will need a T20 Torx driver. For a 2003-2006 TJ, you'll typically need an 8mm or 5/16" socket. The job is easily done with basic hand tools.
Helpful Videos
Technical Specifications
OEM Part Numbers: 68089118AA (JK) 68232369AA (JK) 5061382AA (TJ) 5012701AB (TJ)
The key difference is the mounting style. The 2003-2006 TJ motor is a twist-in style. The 2007-2011 JK motor is mounted with three T20 Torx screws.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
