A Practical Guide to the 2003-2005 Lincoln Aviator HVAC Blower Motor Resistor
If your Aviator's climate control fan only works on the highest setting, this guide is for you.
- The correct model years for this part are 2003-2005; the Aviator was not made from 2006-2019.
- The most common symptom of failure is the fan only working on the 'high' setting.
- Replacement is very easy for a DIYer and is located behind the glove box.
- To prevent repeat failure, consider replacing the blower motor at the same time as the resistor.
Is Your Aviator's Fan Acting Up?
A failing blower motor resistor in the 2003-2005 Lincoln Aviator causes very specific and annoying symptoms. The most common problem you'll notice is that the fan only works on the highest speed setting. This happens because the 'high' setting sends full power directly to the fan, bypassing the resistor circuits that control the lower speeds. You might also find that some fan speeds work while others don't, or the fan speed changes on its own. In some cases, the fan may not work at all.
Smell Burning Plastic?
A burning smell coming from your vents when the fan is on is a serious warning sign. This often means the resistor or its wiring connector is overheating and melting. Turn off the fan and inspect the part as soon as possible to prevent further damage.
Choosing the Right Aftermarket Resistor
When replacing the blower motor resistor on your Aviator, you have a choice between OEM (Motorcraft) and several aftermarket brands. For a simple part like this, a quality aftermarket option is often a good value.
Pro Tip: The number one killer of a new blower motor resistor is an old, failing blower motor. An aging motor draws too much electricity, causing the resistor to overheat and burn out prematurely. If your Aviator has high mileage, it is strongly recommended to replace the blower motor and the resistor at the same time. This will prevent you from having to do the job again in a few months.
Brand Quality Tiers

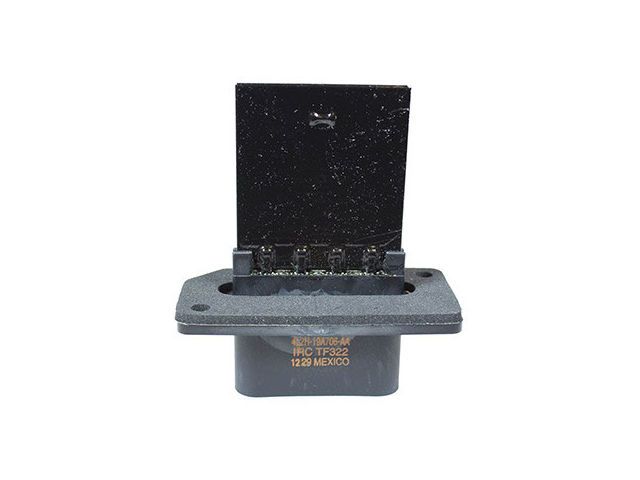

- Tier 1 - OEM: Motorcraft is the original Ford part. It's the benchmark for quality and fit. If you want the highest probability of a long-lasting repair and don't mind paying a bit more, choose Motorcraft.

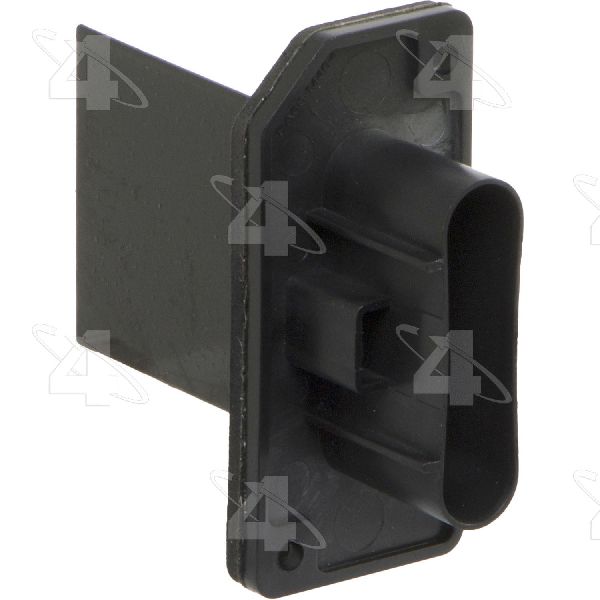

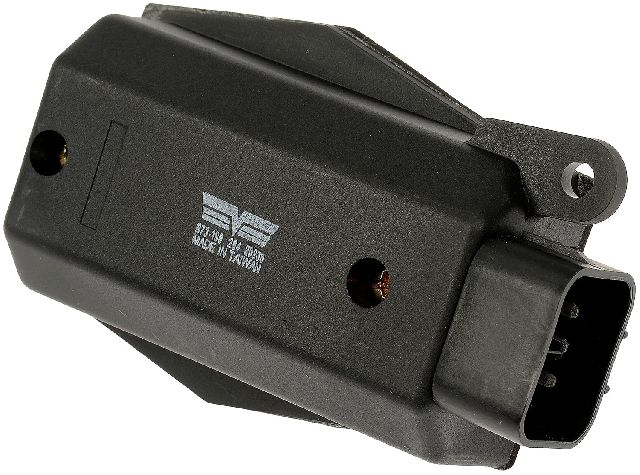

- Tier 2 - Quality Aftermarket: Brands like Standard Ignition (SMP) and Four Seasons have a strong reputation for producing reliable HVAC components that meet or exceed OEM standards. Dorman is another popular choice that often includes a new wiring harness, which is a smart replacement if the old one shows any sign of melting or corrosion.

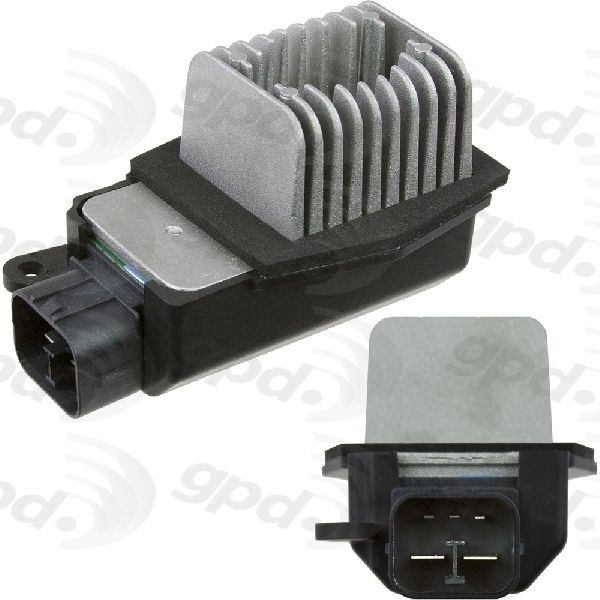

- Tier 3 - Economy: Brands like Global Parts and Holstein offer a budget-friendly price point. These can be a good option if cost is the primary concern, but be aware that their lifespan might be shorter, especially if you are not also replacing an aging blower motor.
Cost to Replace the Blower Motor Resistor
This is an inexpensive part and a very easy job to do yourself. If you take it to a shop, labor will be minimal.
| Part/Service | Estimated Cost |
|---|---|
| New OEM (Motorcraft) Part | $80 - $150 |
| New Aftermarket Part | $29 - $104 |
| Shop Labor | $50 - $100 |
| DIY Total (Aftermarket) | $29 - $104 |
| Shop Total (Aftermarket) | $79 - $204 |
Frequently Asked Questions (FAQ)
Why did my blower motor resistor fail?
The most common reason is an old blower motor drawing too much electrical current, which overheats and burns out the resistor. Clogs in the cabin air filter or debris in the fan can also reduce airflow that cools the resistor, leading to failure.
Is this part hard to replace myself?
No, this is one of the easiest repairs you can do. The resistor is located behind the glove box and is held in by two screws. It typically takes less than 30 minutes with basic tools.
Why does my fan ONLY work on the 'high' setting?
The 'high' fan setting is wired to bypass the resistor and send full battery voltage directly to the blower motor. The lower speeds must pass through the resistor's circuits. When those circuits burn out, only the direct 'high' setting continues to function.
Do I need to replace the wiring connector too?
Inspect the connector closely. If you see any signs of melting, browning, or corrosion on the plastic or metal pins, you must replace it. Many aftermarket resistors from brands like Dorman come with a new connector pigtail for this reason.
Technical Specifications
Connector: 5-pin female. Many aftermarket kits include a replacement wiring harness.
