Toyota 4Runner Vehicle Speed Sensor Guide (2003-2011)
Understanding and replacing the vehicle speed sensor on your 4th generation Toyota 4Runner.
- A bad VSS on a 4th Gen 4Runner causes an erratic speedometer, poor shifting, and multiple warning lights (Check Engine, VSC, ABS).
- The diagnostic code P0500 almost always points to the main VSS on the transmission, not the ABS wheel sensors.
- Replacement is a simple DIY job, typically requiring only basic tools to remove one bolt on the transmission or transfer case.
- While OEM is reliable, reputable aftermarket brands like Delphi or Standard Ignition offer a cost-effective and dependable alternative.
Is Your 4Runner's Speedometer Acting Up?
A failing vehicle speed sensor (VSS) is a common problem on the 4th generation Toyota 4Runner that can cause several confusing issues. The most obvious sign is a speedometer that jumps around, reads incorrectly, or stops working entirely. Because the VSS provides data to multiple systems, you might also notice the automatic transmission shifting harshly or at the wrong times, and your cruise control may refuse to engage. It is also very common for the Check Engine Light to come on, often along with the ABS, VSC, and TRAC warning lights.
Choosing the Right Aftermarket Speed Sensor
When your VSS fails, you have a choice between an original equipment (OEM) part from a Toyota dealer and more affordable aftermarket options. While OEM is always a safe bet for electronic parts, a good quality aftermarket brand can provide a reliable repair for a fraction of the price. However, sensor quality can vary significantly between brands.
Pro Tip: For critical electronic sensors, it is often worth spending a little more on a reputable aftermarket brand over the cheapest available option. Brands with a history of producing reliable electronic components are a safer choice.
Here is a general breakdown of aftermarket brand quality tiers:
- Premium Aftermarket (e.g., Delphi, Standard Ignition, Hella): These brands are well-regarded in the industry for producing parts that meet or exceed OEM quality standards. They are a solid choice for reliability and long-term performance.

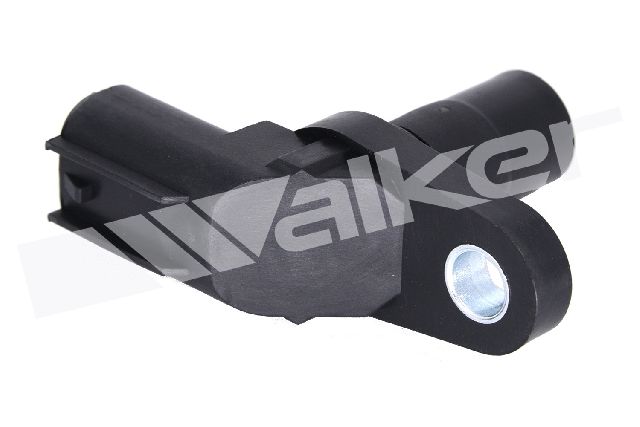

- Standard Aftermarket (e.g., Walker Products, Holstein): These brands offer a good balance of price and quality. They are a popular choice for DIY repairs and independent shops, providing dependable performance for daily driving.
- Economy Brands (e.g., Facet, Global Parts, True Tech, Vemo): These brands focus on providing the most budget-friendly options. While they can get your truck back on the road, their long-term durability and signal accuracy may not match that of higher-priced alternatives.
| Part Type | Estimated Cost |
|---|---|
| New OEM | $116 - $259 |
| New Aftermarket | $29.32 - $135.83 |
| Shop Labor | $69 - $102 |
Known Issues, Recalls, and TSBs
There are no specific recalls from the National Highway Traffic Safety Administration (NHTSA) for the vehicle speed sensor on the 2003-2011 Toyota 4Runner. However, the failure of this sensor is a common topic in owner forums, suggesting it is a frequent maintenance item as these vehicles age. The most common diagnostic trouble code associated with this failure is P0500.
🎬 Watch this guide on how to troubleshoot a P0500 code.Frequently Asked Questions (FAQ)
Where is the vehicle speed sensor located on a 2003-2011 4Runner?
The main vehicle speed sensor (VSS) is located on the transmission, toward the rear at the tail shaft or transfer case. On 4WD models, it is often on the driver's side, just above the front driveshaft. It is held in place by a single 10mm or 12mm bolt.
Is the Vehicle Speed Sensor the same as an ABS sensor?
No. The main VSS is on the transmission and its primary job is to run the speedometer and control transmission shifting. The ABS sensors (one at each wheel) are used by the anti-lock brake and vehicle stability control (VSC) systems. 🎬 See how to replace an ABS wheel sensor on your 4Runner. A P0500 code specifically points to a problem with the main VSS circuit.
Can I replace the VSS myself?
Yes, this is a DIY-friendly job for most people with basic hand tools. It involves safely raising the vehicle, disconnecting the electrical connector, removing one bolt, and swapping the sensor. Access can be tight, but it typically does not require special tools.
🎬 Watch a walkthrough of a 4Runner speedometer and shifter repair.What happens if I don't replace a bad speed sensor?
Driving with a bad VSS is not recommended. You will have an unreliable speedometer, which is a safety risk. More importantly, the transmission may shift erratically or harshly, which can cause excessive wear and potentially lead to more serious and expensive transmission damage over time.
Helpful Videos
Technical Specifications
OEM Part Numbers: 83181-35080 83181-35050 89413-0C010 89413-32011
The main vehicle speed sensor is located on the transmission or transfer case and is distinct from the four ABS wheel speed sensors. It is typically held in place by a single 10mm or 12mm bolt and uses a simple electrical connector. Part numbers can vary, so visual confirmation against the old part is advised.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
