Ford Ranger Engine Coolant Thermostat Guide (2003-2012)
Everything you need to know before replacing the thermostat on your 2003-2012 Ford Ranger.
- A thermostat stuck open is the most common failure, typically causing a P0128 check engine code and a cold-running engine.
- For the 4.0L V6, the factory plastic thermostat housing is a known weak point; upgrading to a cast aluminum housing is highly recommended during replacement.
- Motorcraft (OEM) and reputable aftermarket brands like Gates or Stant are safer choices than budget brands which have mixed reviews.
- Replacement is a feasible DIY job for all engines (2.3L, 3.0L, 4.0L) with basic tools and can be completed in 1-2 hours.
Is Your Ranger's Thermostat Failing?
A bad thermostat can cause confusing symptoms. It most commonly fails in one of two ways: stuck open or stuck closed. Each has a distinct set of signs.
Symptoms of a Thermostat Stuck Open
- Engine Takes Too Long to Warm Up: Your temperature gauge stays on 'C' for a long time or never reaches the middle.
- Check Engine Light (P0128 Code): This is the most common code for a thermostat that's stuck open. The truck's computer notices the engine isn't reaching operating temperature within a set time and triggers the light.
- Poor Heater Performance: If the engine can't get hot, the coolant flowing to your heater core won't be hot either, leaving you with lukewarm air.
- Decreased Fuel Economy: An engine that runs too cool stays in its warm-up fuel mode longer, burning more gas than necessary.
Symptoms of a Thermostat Stuck Closed
- Engine Overheating: This is a serious condition. The temperature gauge will climb into the red because coolant is blocked from reaching the radiator to be cooled.
- Coolant Leaks: Extreme pressure from overheating can force coolant out of weak points. On the 4.0L SOHC V6, this often means a cracked plastic thermostat housing.
- Gurgling or Boiling Sounds: You may hear strange noises from the engine as the coolant boils.
Special Note for 4.0L SOHC V6 Owners
The original factory thermostat housing on the 4.0L V6 engine is made of plastic and is a notorious failure point. It is known to crack and develop leaks over time, often at the seam. If you are replacing the thermostat, it is highly recommended to replace the entire housing assembly with an upgraded cast aluminum version. This is a permanent fix for a very common problem.
Choosing the Right Aftermarket Thermostat
When shopping for a new thermostat, you'll find several options. Here’s a breakdown of the available brands to help you decide.
Tier 1: OEM & Premium Aftermarket
- Motorcraft: This is the Original Equipment Manufacturer (OEM) brand for Ford. Choosing Motorcraft guarantees a perfect fit and original performance. While it's often the most expensive option, it's a safe bet for reliability.
- Mishimoto: A performance-oriented brand. Their thermostats, like the high-end $267 model, often open at a slightly lower temperature to keep performance-modified engines cooler. This is overkill for a stock truck but a quality option for modified ones.
- Gates / Stant: These are well-respected aftermarket brands with a long history. They are generally considered reliable, quality alternatives to OEM parts and are a solid choice for most Ranger owners.
Tier 2: Standard / Budget Aftermarket
- Motorad: Motorad is a huge manufacturer that produces thermostats for many other brands, including some OEM applications. However, their consumer-grade parts have mixed reviews. Some owners use them without issue, while others report premature failures. They are typically the most budget-friendly option.
Pro Tip: Always replace the gasket or seal when you replace your thermostat. Many thermostats come in a kit with the gasket. For the 2.3L and 4.0L engines, the thermostat is often sold as a complete housing assembly.
Cost to Replace a Ford Ranger Thermostat
| Part Type | Estimated Cost |
|---|---|
| New OEM (Motorcraft) | $40 - $120 |
| New Aftermarket | $7 - $268 |
| Shop Labor | $100 - $215 |
Frequently Asked Questions
Why is my Ranger running cold and showing a P0128 code?
This is the classic symptom of a thermostat that is stuck in the open position. It allows coolant to circulate through the radiator constantly, preventing the engine from reaching its proper operating temperature. Replacing the thermostat will almost always fix this issue.
My 4.0L Ranger is leaking coolant from the top of the engine. Is it the thermostat?
Most likely, yes. The plastic thermostat housing on the 4.0L SOHC engine is a very common failure point. It cracks from age and heat cycles, causing coolant to leak out, especially under pressure. The best solution is to replace the plastic housing with a more durable aluminum aftermarket version.
Should I buy an OEM Motorcraft thermostat or a cheaper aftermarket one?
For a daily-driven truck, a Motorcraft thermostat is a reliable, worry-free choice. Reputable aftermarket brands like Gates and Stant also offer good quality. Budget brands like Motorad have inconsistent reviews; they might work fine, or they might fail early. Given the importance of the part and the relatively low cost, spending a little more for a trusted brand is a good investment.
How difficult is it to replace the thermostat myself?
For most DIY mechanics, this is a manageable job. On the 3.0L and 2.3L engines, the thermostat is fairly easy to access. On the 4.0L, it's located at the back of the engine and is more challenging, but it can be done with basic tools in a few hours. There are many video guides available online for all three engines.

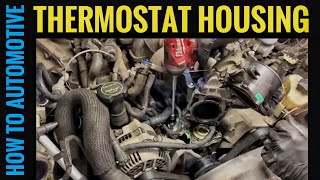

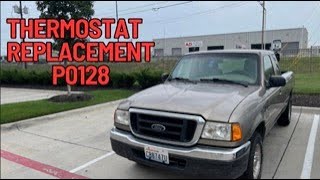

Helpful Videos
Technical Specifications
OEM Part Numbers: RT-1167 (4.0L) RT-1157 (3.0L) W0133-1827853 (2.3L Assembly) 3M4Z8575AB (2.3L)
Standard opening temperature is typically 190°F or 192°F. The thermostat is engine-specific and may be sold as a standalone part (3.0L) or as a complete housing assembly (2.3L, 4.0L).
