A Ford Ranger Owner's Guide to the 2003-2012 Engine Intake Manifold Gasket Set
Leaking coolant or hearing a hiss? Your intake manifold gasket might be the culprit.
- Lean codes P0171 and P0174 are the most common indicators of a failed intake manifold gasket on V6 Rangers.
- For V6 engines, coolant leaks are a major concern; address any signs of overheating immediately to prevent severe engine damage.
- Thoroughly cleaning the manifold and cylinder head surfaces before installing the new gasket is critical for a lasting repair.
- Aftermarket gaskets from brands like Victor Reinz offer a reliable, cost-effective alternative to OEM parts.
Is Your Ranger's Engine Acting Up? It Could Be the Intake Gasket.
If you own a 2003-2012 Ford Ranger, especially one with a V6 engine, the intake manifold gasket is a common failure point. These gaskets live in a harsh environment of constant temperature changes, and over time, they can become brittle, crack, or compress. This leads to leaks that can cause a range of problems, from annoying idling issues to critical engine overheating.
Symptoms of a Failing Intake Manifold Gasket
A bad intake gasket can cause several noticeable issues. The most common signs on a Ford Ranger are:
- Check Engine Light: The most frequent sign is a check engine light with lean codes P0171 (Bank 1) and P0174 (Bank 2). This happens when unmetered air enters the engine through a leak in the gasket, throwing off the sensor readings. You may also see misfire codes (P0300-P0306).
- Rough Idle: Your truck may shake or idle unevenly, especially when stationary.
- Hissing or Whistling Noises: A vacuum leak from a bad gasket can create a distinct hissing or sucking sound from the engine bay, which may get louder on acceleration.
- Coolant Leaks & Overheating: On V6 models, a failed gasket can leak coolant externally (you might see puddles or smell a sweet scent) or internally. An external leak can cause the engine to run low on coolant and overheat, which is a serious risk.
- Milky Engine Oil: In severe cases of an internal coolant leak, coolant can mix with the engine oil. If you check your oil cap and see a milky, coffee-colored sludge, stop driving immediately to prevent catastrophic engine bearing damage.
Pro Tip: On the 4.0L SOHC V6, the thermostat housing is a known weak point and is often disturbed during this repair. It's highly recommended to replace the thermostat and its housing at the same time you replace the intake gaskets to prevent future leaks.
Choosing the Right Aftermarket Gasket Set
You don't need to go to the dealer for a reliable gasket. Quality aftermarket brands offer excellent performance, often at a better price. When shopping, consider these tiers:

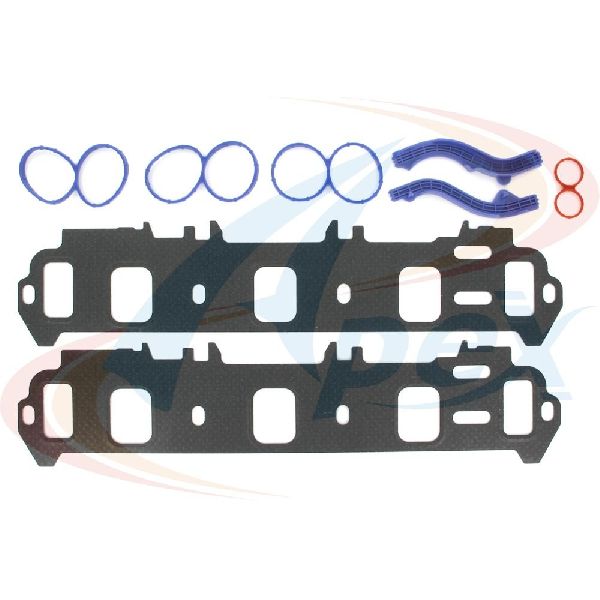

- Good (Budget-Friendly): Apex
Apex gaskets are a budget-conscious choice. They are manufactured to meet or exceed OEM specifications and can be a good value for a daily driver. While some forum users have used them without issue, others prefer to stick with more established names for critical jobs like this. - Better (Trusted Performance): Victor Gaskets (Reinz)
Victor Reinz is a well-regarded brand and an OEM supplier for many European vehicles. Forum discussions show that many mechanics and DIYers trust them for a reliable seal that lasts. They are often seen as a high-quality alternative to dealer parts.
Another popular and trusted brand you will encounter is Fel-Pro, which has a strong reputation in the aftermarket for quality and innovative designs that solve common leak problems.
How Much Does an Intake Manifold Gasket Replacement Cost?
The cost can vary significantly based on which engine your Ranger has (the 4-cylinder is easier than the V6) and local labor rates. The gaskets themselves are inexpensive, but the labor makes up most of the cost.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Gasket Set | $12 - $60 |
| New OEM Gasket Set | $70 - $150+ |
| Shop Labor | $250 - $400 |
| Total Estimated Cost (Shop Repair) | $320 - $670 |
Cost estimates are based on industry averages and may vary.
Common Ordering Mistake
The 2003-2012 Ford Ranger was available with three different engines: the 2.3L I4, 3.0L V6, and 4.0L SOHC V6. Each engine requires a different intake manifold gasket set. Always verify your engine size before ordering to ensure you get the correct parts.
Frequently Asked Questions (FAQ)
Can I just tighten the intake manifold bolts to fix the leak?
This is not recommended and is unlikely to work. The gasket has already failed due to age and heat cycles. Once compressed and hardened, it will not reseal properly. The only reliable fix is to replace the gasket.
Do I need to use RTV sealant with the new gaskets?
It depends on the gasket and location. Some gaskets are designed to be installed dry. However, a small dab of RTV sealant is often required at the corners where engine components meet (e.g., where the cylinder head meets the engine block). Always follow the instructions included with your new gasket set or consult a repair manual.
Is this a good DIY job for a beginner?
This is considered an intermediate to advanced repair. While possible for a determined DIYer, it requires disconnecting fuel lines, electrical connectors, and several other components in a specific order. If you are not comfortable with a job of this complexity, it is best to leave it to a professional mechanic.
What's the most important step of the replacement?
Thoroughly cleaning the mating surfaces on both the cylinder heads and the intake manifold is critical. Any leftover old gasket material, oil, or dirt will prevent the new gasket from sealing correctly, causing the leak to return.

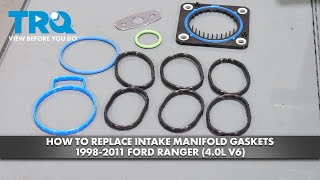

Helpful Videos
Technical Specifications
OEM Part Numbers: F6DZ-9433-A (3.0L V6, Upper/Lower Set) 7R3Z-9439-AA (4.0L SOHC V6, Lower) 1S7G-6K260-AA (2.3L I4, part of kit)
Set contents vary by engine. V6 kits typically include upper (plenum) and lower (manifold-to-head) gaskets. Some kits may also include throttle body or EGR gaskets. Materials are typically molded rubber or composite.
