Engine Water Pump Guide for the 2003-2012 Mazda 6
Keep your Mazda 6's engine cool and avoid serious damage by understanding its most critical cooling system part.
- V6 engines (3.0L, 3.7L) have an internal, timing-chain-driven water pump that is extremely labor-intensive and expensive to replace.
- Failure of the V6 water pump can cause coolant to mix with engine oil, leading to catastrophic engine failure.
- 4-cylinder engines (2.3L, 2.5L) have a much simpler, externally-mounted water pump that is easier and cheaper to replace.
- When replacing the water pump on a V6, it is critical to use a high-quality brand (like Aisin) and also replace the timing chain components.
Understanding Your Mazda 6 Water Pump
The water pump in your 2003-2012 Mazda 6 is essential for engine health. However, not all pumps for this car are the same. The specific engine in your Mazda 6 determines the type of water pump it uses and how difficult it is to replace. This is the most important thing to know before you buy a new part.
Key Differences Between Mazda 6 Engines
The 2003-2012 Mazda 6 came with two types of engines, and the water pump design is completely different for each.
- 4-Cylinder Engines (2.3L and 2.5L): If you have a 4-cylinder Mazda 6, your water pump is externally mounted. It is driven by the serpentine belt. This design is common, and replacing the pump is a straightforward job for a DIY mechanic or any repair shop.
- V6 Engines (3.0L and 3.7L): If you have a V6 model, your water pump is located inside the engine and is driven by the timing chain. This is a much more complex and labor-intensive design. Replacing it requires removing the timing cover, which can involve dropping the subframe and partially lowering the engine. 🎬 Watch: See the V6 internal water pump location and replacement explained.
A Critical Issue for V6 Owners
The internal water pump on the 3.0L and 3.7L V6 engines is a known failure point. When it fails, it can leak coolant directly into the engine oil. This can quickly lead to catastrophic engine damage, requiring a full engine replacement. A class-action lawsuit was filed concerning this issue for the V6 engines, highlighting the seriousness of a potential failure. Because of the high labor cost and potential for engine damage, it is critical to use a high-quality replacement pump and consider replacing the timing chain and tensioners at the same time.
Signs of a Failing Water Pump
A bad water pump will give you several warning signs. If you notice any of these, you should get your cooling system inspected right away.
- Coolant Leaks: This is the most common symptom. You may see puddles of green, orange, or pink fluid under the front of your car. On the pump itself, there is a "weep hole." A small stain might be normal, but a steady drip or accumulation of crystallized coolant means the internal seal has failed.
- Engine Overheating: If the pump can't circulate coolant, your engine temperature will rise. You might see the temperature gauge in the red or get a warning light on your dashboard.
- Whining or Grinding Noises: A high-pitched whine or a grinding sound from the front of the engine that changes with engine speed often points to a failing bearing inside the water pump.
- Steam from the Engine Bay: If your engine is overheating badly, the coolant can boil, creating steam that comes from under the hood. If you see this, pull over immediately and turn off the engine to prevent severe damage. 🎬 Watch: A quick guide to the top symptoms of pump failure.
Choosing the Right Aftermarket Water Pump
When replacing a critical part like a water pump, quality matters—especially on the V6 engines. Here’s a breakdown of available aftermarket brands to help you choose.
Brand Quality Tiers
- Top Tier (OEM Quality): These brands are often original equipment manufacturers for Mazda or other automakers. They offer the best reliability and are highly recommended for the V6 engines.
- Aisin: Widely regarded as an OEM supplier for many Japanese vehicles, Aisin pumps are known for their durability and are a top choice for any engine.

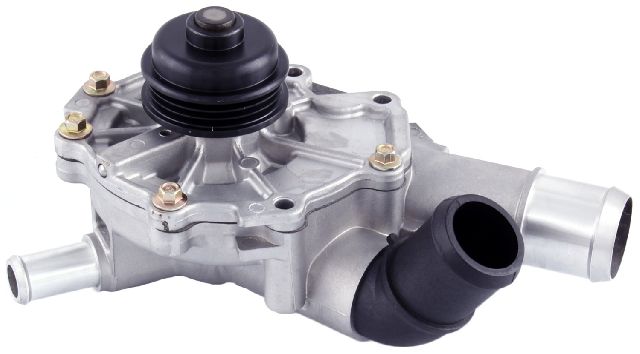

- Gates & Dayco: Both are leaders in cooling and timing system components. While they are primarily belt manufacturers, their water pumps are generally considered high quality. Some users have had good experiences, especially with Gates kits.
- Mid Tier (Reliable Aftermarket): These brands offer a good balance of quality and cost. They are a solid choice for the 4-cylinder engines and a viable option for V6 models if on a budget.

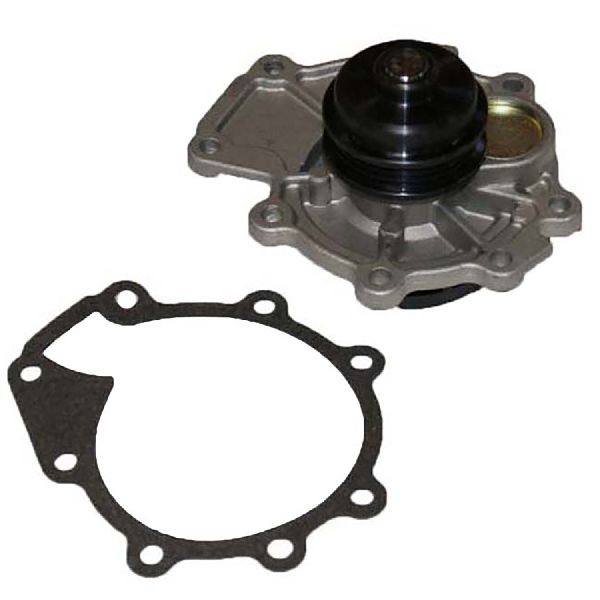

- GMB: A well-known aftermarket manufacturer that produces a wide range of pumps, often praised for its balance of price and performance.

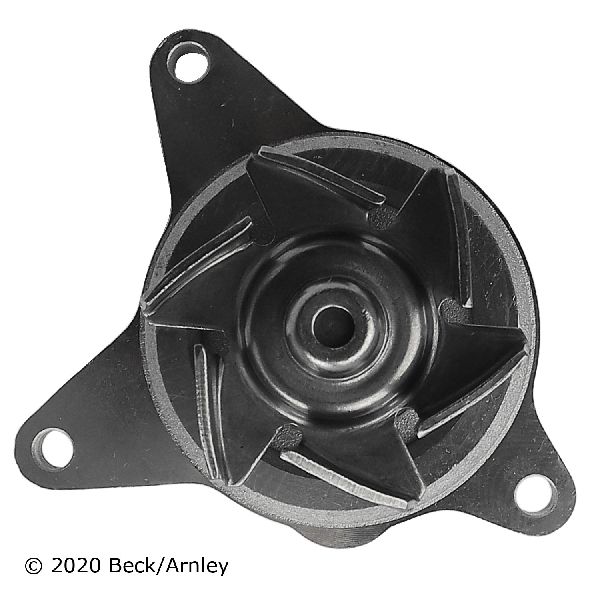

- Beck Arnley: This brand sources parts from various manufacturers, often including OEM suppliers, to match the original part's form and function.
- Graf & Saleri: European brands with a reputation for producing quality water pumps.
- Economy Tier (Value-Focused): These brands meet basic requirements and are the most affordable. They are suitable for older, high-mileage 4-cylinder vehicles where budget is the main concern.
- US Motor Works & Skyward: These brands provide a functional replacement at a low price point, but may not offer the same longevity as higher-tier options.
Pro Tip: Replace More Than Just the Pump
When you replace the water pump, it's a good idea to replace other related parts at the same time. This saves you from paying for the same labor twice. For all engines, replace the thermostat and coolant. For V6 engines, it is highly recommended to also replace the timing chain, guides, and tensioners since they must be removed to access the pump.
🎬 Watch: Step-by-step walkthrough of the V6 water pump and timing job.Cost of Replacing a Mazda 6 Water Pump
The cost varies dramatically depending on your engine type due to the huge difference in labor time.
| Engine Type | Aftermarket Part Cost | Estimated Labor Cost | Estimated Total Cost |
|---|---|---|---|
| 4-Cylinder (2.3L, 2.5L) | $40 - $90 | $150 - $250 | $190 - $340 |
| V6 (3.0L, 3.7L) | $60 - $125 | $1,200 - $2,500+ | $1,260 - $2,625+ |
Note: Costs are estimates and can vary by location and repair shop. The V6 labor is extremely high because of the internal pump design.
Frequently Asked Questions
Are there any recalls for the Mazda 6 water pump?
No, there are no official recalls for the water pump on the 2003-2012 Mazda 6. However, a class-action lawsuit was filed regarding failures of the internal water pump on V6 models. There is also a Technical Service Bulletin (TSB) from Mazda that helps technicians distinguish between normal seepage from the pump's weep hole and a true leak that requires replacement.
When should I replace my water pump?
You should replace it immediately if you notice any signs of failure like leaks, overheating, or noise. For V6 models, some owners and mechanics recommend proactively replacing the water pump and timing components around 100,000 miles to avoid catastrophic failure, even if it hasn't failed yet.
Is an aftermarket water pump as good as the OEM part?
It depends on the brand. Top-tier aftermarket brands like Aisin are often the original manufacturer for Mazda, so the quality is identical. Other quality brands like Gates or GMB can also be very reliable. For the V6 engine, due to the high labor cost of replacement, it is strongly advised to use a top-tier brand to ensure longevity and avoid having to do the job twice.
What kind of coolant should I use in my Mazda 6?
Always use a coolant that meets Mazda's specifications. For this generation, a green or blue long-life, ethylene-glycol based coolant is typically required. Check your owner's manual or the coolant reservoir cap for the exact type. Using the wrong coolant can cause corrosion and damage to the water pump and other cooling system components.
Helpful Videos
Technical Specifications
OEM Part Numbers: AJ57-15-010E L327-15-100A GY01-15-010A CA01-15-010
Configuration varies by engine. 4-Cylinder models use an external, belt-driven pump. V6 models use an internal, timing-chain-driven pump.
