A Practical Guide to the 2003-2012 Toyota Camry Disc Brake Hardware Kit
Don't overlook these small but critical parts during your next Camry brake job.
- Always replace the disc brake hardware kit when you replace your Camry's brake pads and rotors to ensure quiet operation and even wear.
- Aftermarket kits from brands like Raybestos and Centric are excellent choices and may offer upgrades like stainless steel components.
- Ensure you purchase the correct kit for the front or rear axle, as they are not interchangeable.
- Properly cleaning the caliper bracket and lubricating the slide pins with silicone grease is a critical step during installation.
Why New Hardware is Essential for Your Camry's Brakes
When you perform a brake job on your 2003-2012 Toyota Camry, replacing the brake pads and rotors is obvious. However, the disc brake hardware is just as important. The original clips and springs are exposed to thousands of heat cycles and road grime, causing them to lose tension and corrode. Reusing old, worn hardware can lead to annoying brake noises, uneven pad wear, and even sticking calipers, undoing all the hard work of your brake replacement. For a complete and long-lasting repair, a new hardware kit is a non-negotiable part of the job.
Symptoms of Failing Brake Hardware
Failing brake hardware often makes its presence known through sound. 🎬 Watch this guide to diagnosing common Toyota brake noises. Here are the common symptoms:
- Rattling or Clunking: This is the most common sign. Loose or missing anti-rattle clips allow the brake pads to vibrate in the caliper bracket, especially over bumps or during light braking.
- Squealing or Scraping: Corroded clips can prevent the brake pads from moving freely, causing them to drag lightly on the rotor and create noise.
- Uneven Brake Pad Wear: If the caliper slide pins (which are serviced with the hardware) cannot move smoothly due to old rubber boots and lack of lubrication, the caliper can bind. This causes the brake pads on one side to wear out much faster than the other.
- Brakes Sticking or Dragging: Seized slide pins can cause a brake to remain partially applied, leading to a burning smell, excessive heat, and poor fuel economy.
Pro Tip: Always Replace, Never Reuse
Brake hardware is considered a single-use part. The high temperatures of the braking system weaken the metal springs and clips. For the low cost of a new kit, you ensure your new pads and rotors work correctly and quietly from the start.
Choosing the Right Aftermarket Kit for Your Camry
For a part like a hardware kit, aftermarket options are often just as good, if not better, than OEM. Many aftermarket kits use stainless steel, which offers superior rust resistance compared to the standard steel often used in original parts. Here is a breakdown of available brands:
Premium & Well-Regarded Brands:
- Raybestos & Centric: These are highly respected names in the brake industry. They offer quality kits that often include coated or stainless steel components for longevity. Many professional mechanics trust these brands for reliable fit and performance.
- Beck Arnley: This brand specializes in parts that meet or exceed OEM specifications, making them a very safe and reliable choice if you want a direct, high-quality replacement.
Standard & Value Brands:
- Carlson & Dynamic Friction: These brands provide functional, cost-effective solutions that meet the needs of a daily driven Camry. They are a solid choice for budget-conscious repairs.
- Dorman: Dorman offers a wide range of parts, including brake hardware. While they provide a functional replacement, some professional opinions suggest that brands specializing in brakes, like Raybestos or Centric, may offer more consistent quality.
Common Ordering Mistake
The front and rear brake hardware kits on a Toyota Camry are different. They are not interchangeable. Always double-check that you are ordering the correct kit for the axle you are servicing.
🎬 See a step-by-step walkthrough for replacing front pads and rotors.| Part Type | Estimated Cost Range |
|---|---|
| New Aftermarket Kit (per axle) | $6.67 - $41.22 |
| New OEM Kit (per axle) | $30 - $60 |
| Shop Labor (as part of brake job) | $100 - $250 per axle |
Frequently Asked Questions
Do I really need to replace the hardware with every brake job?
Yes. It is highly recommended by mechanics and manufacturers. The old clips have been heat-cycled and have lost their spring tension, and the rubber boots for the slide pins may be cracked. A new kit is a small price to pay to guarantee the performance and longevity of your new pads and rotors.
What's the benefit of stainless steel hardware?
Stainless steel hardware offers much better corrosion resistance than standard steel. For Camry owners in areas with snow, salt, and high humidity, stainless steel kits will prevent rust from building up on the clips, ensuring the brake pads can move freely for their entire service life.
What are the rubber boots in the kit for?
Those are the caliper slide pin boots. They protect the slide pins from dirt, water, and road debris. A torn boot will lead to a seized slide pin, which causes the caliper to stick and results in rapid, uneven brake wear. Always replace them and lubricate the pins with silicone grease.
🎬 Watch how to properly lubricate your caliper slide pins.Are there any recalls on my Camry's brake hardware?
No. While there were some brake-related investigations and recalls for the Camry Hybrid models of this era concerning the brake assist system, there are no active recalls or common TSBs specifically for the mechanical disc brake hardware kit on the 2003-2012 Toyota Camry.
Helpful Videos
Technical Specifications
OEM Part Numbers: 04947-06080 04947-33100 04948-06050 04948-33060

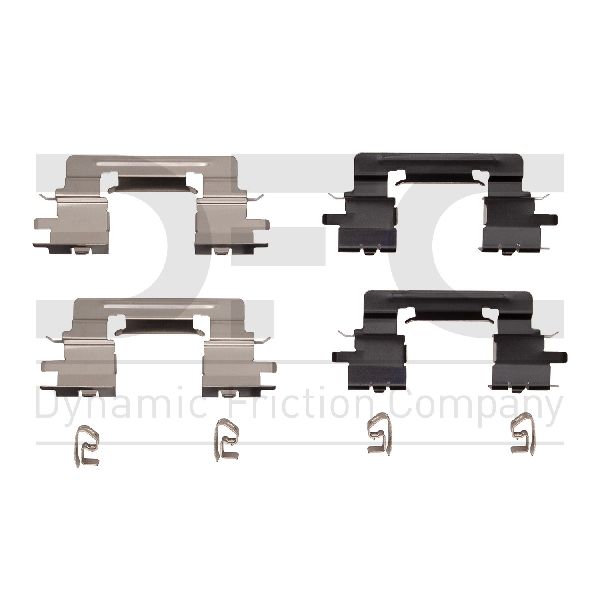

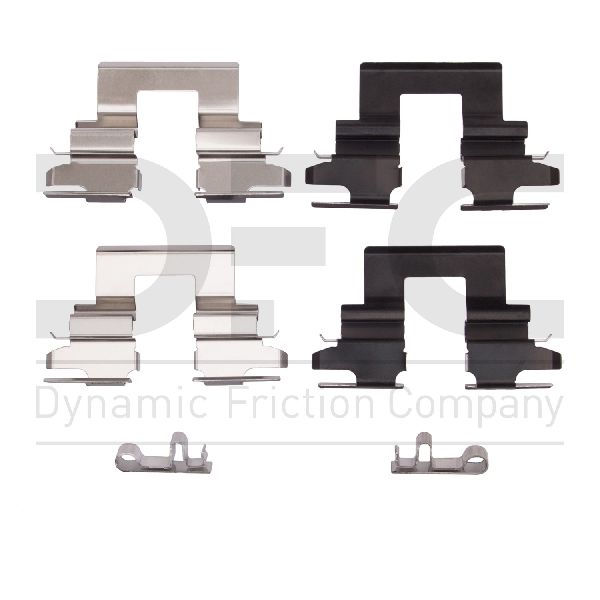

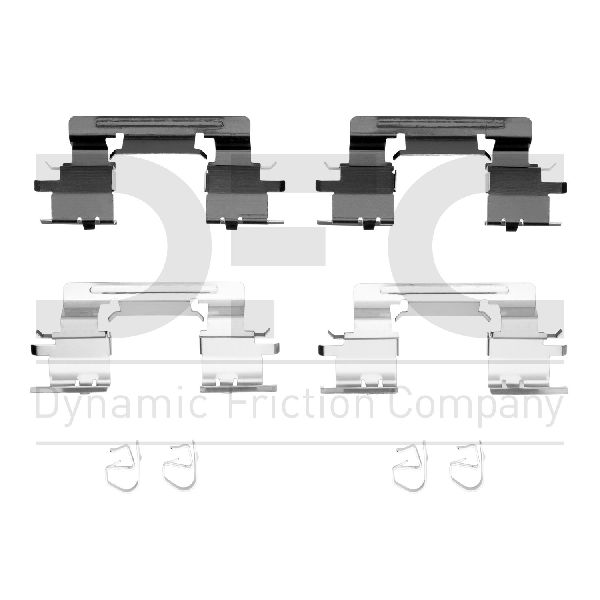

Kit typically includes anti-rattle clips, pad support springs, and caliper slide pin boots. Material can be standard steel or upgraded stainless steel.
