A Guide to the Engine Cooling Fan Module for the 2003-2013 Mazda 6
If your Mazda 6 is overheating in traffic or the A/C is weak at stoplights, the engine cooling fan module is a likely culprit.
- A faulty fan module is a very common issue, especially on 2003-2006 V6 models which had a service campaign for this part.
- Always check that the fan motors spin freely before replacing only the module; a bad motor will destroy a new module.
- Symptoms are most obvious at idle and include engine overheating and poor A/C performance.
- Replacement is a straightforward DIY job that takes about an hour with basic tools.
Is Your Mazda 6 Fan Module Failing?
A bad engine cooling fan module on a 2003-2013 Mazda 6 causes very specific and noticeable problems. Because the fans are most needed when there is no natural airflow from driving, symptoms are most obvious when the car is stationary.
Common Symptoms:
- Engine Overheats at Idle: This is the most serious sign. The temperature gauge will rise when you're in traffic but may return to normal once you're driving at speed.
- A/C Blows Warm Air When Stopped: The A/C needs airflow over the condenser to get cold. If the fans aren't running, your A/C will feel weak at a stoplight but may get cold again once you start moving.
- Fans Run Constantly or Won't Shut Off: The module can fail in the 'on' position, causing the fans to run at full speed all the time, even after the car is turned off. This can drain your battery.
- Fans Don't Turn On at All: You can test this by warming up the car and turning on the A/C. If the fans behind the radiator aren't spinning, the module, fuse, or fan motor could be the cause.
Known Issue: 2003-2006 V6 Fan Module Campaign (SSP 71)
Mazda issued a Special Service Program (SSP 71) for 2003-2006 Mazda 6 models with the 3.0L V6 engine due to a high failure rate of the original fan control module. The issue was traced to internal soldering problems causing fans to run erratically or not at all. While this campaign is old, it confirms that the module is a known weak point on first-generation V6 models. If you own one of these vehicles and are experiencing fan issues, there's a high probability the module is the cause.
🎬 Watch: How to diagnose cooling fan problems on V6 models.Choosing the Right Aftermarket Fan Module
When your original module fails, you have a choice between OEM and several aftermarket brands. For a part this critical, quality matters.
- Premium Aftermarket (e.g., Gates): Gates is a well-known leader in cooling systems. Their parts are engineered to meet or exceed original equipment (OE) performance. They are a trusted choice for reliability and a proper fit.
- Standard Aftermarket (e.g., Standard Ignition): Standard Ignition (SMP) is an established manufacturer that produces reliable replacement parts. These brands offer a good balance of quality and cost for a daily driver and are a significant step up from no-name online parts.
- Budget Brands: While many low-cost modules are available online, their long-term durability can be questionable. A common cause of repeated module failure is a worn-out fan motor drawing too much power, which can quickly burn out a cheaper module.
Pro Tip: Check Your Fan Motors First!
Before you install a new fan module, check the fan motors themselves. A worn-out fan motor can draw too much electrical current, which will cause your new module to fail prematurely. With the car off, try to spin each fan blade by hand. They should spin freely with little resistance. If a fan is stiff, noisy, or doesn't spin at all, you should replace the entire fan assembly (which includes the motors and a new module).
🎬 See this walkthrough for removing and replacing the fan assembly.Cost of Replacing a Mazda 6 Fan Module
| Part Type | Estimated Cost |
|---|---|
| New OEM Module | $140 - $200 |
| New Aftermarket Module | $123.54 - $529.98 |
| Shop Labor | $95 - $200 |
Frequently Asked Questions (FAQ)
Can I drive with a bad engine cooling fan module?
It is not recommended. You can drive for short distances if you can maintain speed without stopping, but if you get stuck in traffic, your engine will quickly overheat, risking severe and expensive damage like a blown head gasket.
Is replacing the fan module a DIY job?
Yes, for most home mechanics, this is a very manageable job. It typically takes about 30-60 minutes and requires basic hand tools. You will need to remove the plastic engine cover and air filter box to access the module, which is mounted to the fan shroud with two 10mm bolts.
🎬 Watch: A step-by-step guide to troubleshooting and replacing the module.Is the fan module the same as a fan relay?
No. A simple relay is just an on/off switch. The fan control module on your Mazda 6 is more complex; it's a solid-state controller that can vary the speed of the fans based on the car's cooling needs.
Why do some shops say I need to replace the whole fan assembly?
For some second-generation (2009-2013) models, Mazda dealers may only offer the complete fan assembly instead of selling the module separately. Additionally, if one of your fan motors is failing, replacing the entire assembly is the correct repair to prevent the bad motor from damaging the new module.
Helpful Videos

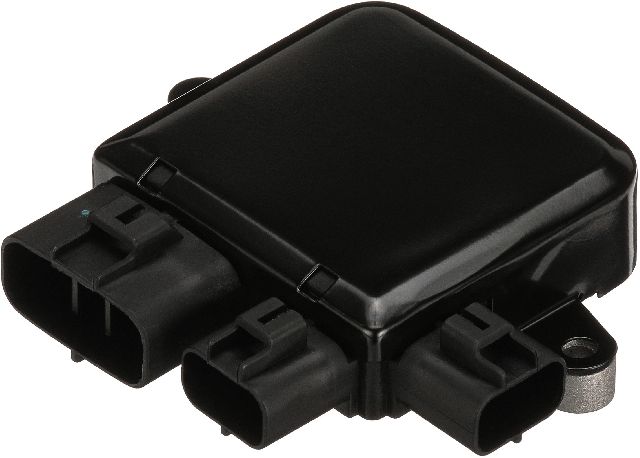

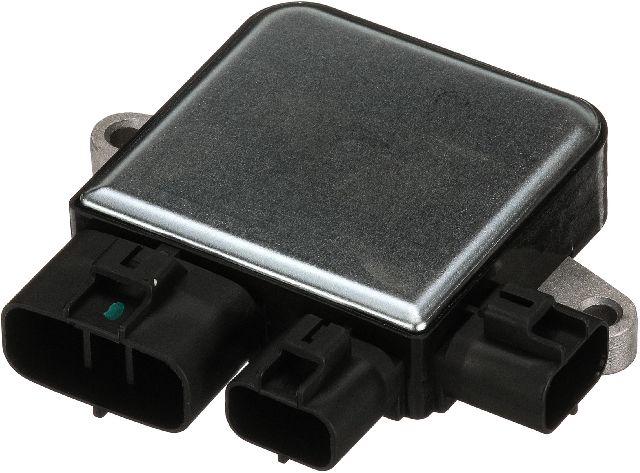

Technical Specifications
OEM Part Numbers: 1355A124 1355S124 1C232-19700 AJY215SC0 1355A053 AJ51-15-15YA L510-15-15Y
Controls dual radiator cooling fans. Receives a pulse-width modulation (PWM) signal from the PCM to vary fan speed. Mounts directly to the cooling fan shroud.
