A Mechanic's Guide to the Nissan Pathfinder ABS Wheel Speed Sensor (2003-2013)
Fixing the ABS, VDC, and SLIP lights on your Pathfinder starts with understanding this critical sensor.
- Warning lights for ABS, VDC, and SLIP all at once strongly point to a wheel speed sensor failure.
- Confirm your Pathfinder's generation (R50, R51, or R52) before ordering, as the parts are not interchangeable.
- Use an ABS-capable scan tool to identify the specific failed sensor; guessing is expensive.
- Aftermarket sensors offer significant cost savings and are a practical choice for this repair.
Understanding Your Pathfinder's Generation is Key
The 2003-2013 model years cover three different Nissan Pathfinder designs, and the ABS sensors are not the same for all of them. Before buying a part, you must know your vehicle's specific model year and generation.
- 2003-2004 (R50 Generation): These sensors are known to have issues with rust dust and debris from the hub getting on the sensor tip, which can cause false readings. Cleaning the sensor and the area around it can sometimes be a temporary fix.
- 2005-2012 (R51 Generation): This is the most common platform in this range. On these models, the front sensors are located on the wheel knuckles, while the rear sensors are mounted on the rear differential. The rear harness combines both left and right sensors into a single connector.

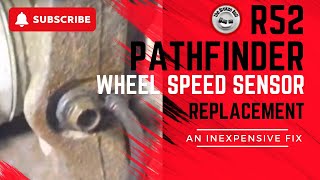

- 2013 (R52 Generation): The 2013 Pathfinder is a completely different unibody vehicle. Its sensors are not interchangeable with earlier models. Be extra careful when ordering for this year to ensure you get the correct part for the R52 chassis. 🎬 Watch: Step-by-step wheel speed sensor replacement for the 2013 Pathfinder.
Common Failure Symptoms
When an ABS sensor fails, your Pathfinder will give you clear warning signs. The most common symptom is a combination of warning lights on your dashboard. 🎬 Watch: How to diagnose SLIP, VDC, and ABS warning lights. You will almost always see the ABS light turn on. Often, the SLIP and VDC OFF lights will also illuminate, because these safety systems rely on the same sensors and are disabled when a fault is detected.
You might also notice:
- Brakes feel different: The ABS may activate at the wrong times, causing a pulsating or grinding feeling under normal braking.
- Loss of 4WD: On some models, the 4WD system may be disabled when there is an ABS fault.
- Inaccurate Speedometer: In some cases, a faulty sensor can cause the speedometer to stop working or show the wrong speed.
Known Issues & Recalls
While there are no major recalls specifically for the ABS wheel speed sensors on the 2003-2012 models, Nissan did issue a Technical Service Bulletin (TSB) NTB12-080a for 2007-2013 vehicles. This TSB provides dealers with specific diagnostic steps for trouble codes C1101-C1108, which all point to wheel speed sensor faults. Another TSB from 2005 (02120A) addresses ABS lights and sensor codes on 2003 models. There was a recall for faulty front wheel hubs on some 2012 models which could potentially impact the sensor's operation.
Choosing the Right Aftermarket Part
When it comes to replacing your ABS sensor, you have a choice between Original Equipment (OEM) from a Nissan dealer and various aftermarket brands. For a vehicle in this age range, an aftermarket sensor is often the most practical and cost-effective choice.
OEM vs. Aftermarket
An OEM sensor for a 2013 Pathfinder could be quoted at over $800 from a dealership, with labor costs on top of that. Aftermarket sensors are available for a fraction of that price. While OEM parts guarantee a perfect fit, many owners have had success with aftermarket brands like Dorman, Delphi, Holstein, and Standard Ignition. For this repair, the significant cost savings of aftermarket parts make them a compelling option. The quality of these brands is generally considered sufficient for a reliable repair.
Pro Tip: Before you replace a sensor, first inspect it. Sometimes the issue is simply a damaged wire or a buildup of dirt and metal shavings on the sensor's magnetic tip. Cleaning the sensor and its mounting surface can sometimes solve the problem, especially on older R50 models.
Cost to Replace a Nissan Pathfinder ABS Sensor
The cost can vary widely based on who does the work and the parts you choose. The sensors themselves have a wide price range.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Sensor | $37 - $333 |
| Shop Labor | $95 - $100 |
| Total Professional Replacement (Aftermarket Part) | $198 - $315 |
Frequently Asked Questions (FAQ)
Which wheel sensor is bad?
You can't know for sure without a diagnostic scan tool that can read ABS codes. A standard OBD-II scanner often won't work. An ABS-capable scanner will give you a specific code, like C1102 (Rear Left Sensor), which tells you exactly which sensor has failed. Guessing is not recommended and can get expensive.
Can I replace just one sensor?
Yes. You only need to replace the sensor that has failed. The one exception is the rear of the 2005-2012 (R51) models; the two rear sensors are part of a single harness that plugs in with one connector, so they are often replaced in pairs.
Is this a difficult DIY job?
For someone with basic tools and experience, this is a manageable job. The sensor is usually held in by a single 10mm bolt. The biggest challenge is often rust and corrosion, which can cause the bolt to break or the sensor to become seized in the wheel hub or differential. Using rust penetrant is highly recommended.
Do I need to do anything after replacing the sensor?
After installing the new sensor, you should clear the ABS trouble codes from the computer using a capable scan tool. Sometimes, the lights will go off on their own after driving the vehicle for a short distance, allowing the system to see the new, working sensor.

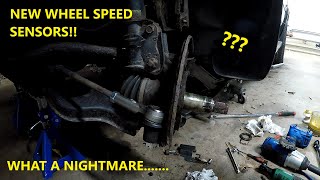

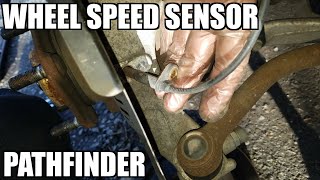

Helpful Videos
Technical Specifications

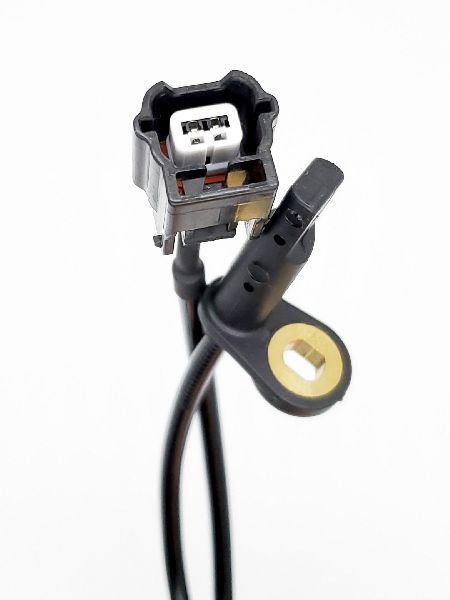

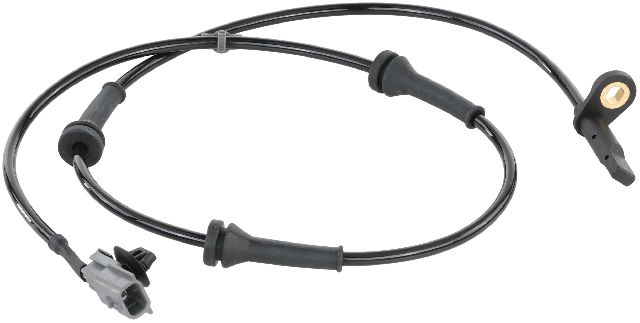

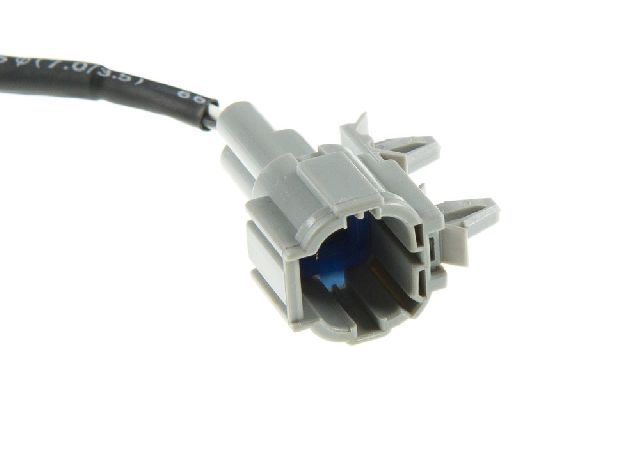

OEM Part Numbers: 47900-5X01A 47901-5X01A 47910-EA025 47911-EA025 47900-1JA0B 47910-1JA0B
Sensors are specific to location (Front Left, Front Right, Rear Left, Rear Right) and vehicle generation (R50, R51, R52). The R51 rear sensors are sold as a single harness assembly. Connectors and wire lengths vary.
