A/C Compressor Replacement Guide for the 2003-2014 Chevrolet Express 1500
Don't sweat a failing A/C. Here’s how to choose the right new aftermarket compressor for your Express van.
- A failed compressor can contaminate the entire A/C system with metal debris ('Black Death'), requiring replacement of multiple components.
- For best results, choose a new compressor from an OEM-quality brand like Denso or Delphi.
- Always replace the accumulator/drier and orifice tube at the same time as the compressor to ensure system longevity and warranty compliance.
- This repair requires special tools for handling refrigerant; if you are a DIYer, consider replacing the parts yourself and having a professional shop perform the final vacuum and recharge.
Is Your Express Van's A/C Losing Its Cool?
When the air conditioning in your 2003-2014 Chevrolet Express 1500 stops blowing cold, a failing A/C compressor is a common suspect. These vans work hard, and their A/C systems often see heavy use, leading to wear and tear on the compressor. Understanding the signs of failure and how to choose a quality replacement can save you from a hot cabin and repeat repairs.
Symptoms of a Bad A/C Compressor
- Warm Air from Vents: The most obvious sign. If the compressor can't build pressure, the refrigerant won't cool properly.
- Strange Noises: A grinding, squealing, or rhythmic knocking sound when the A/C is turned on points to failing internal parts or a bad clutch bearing. 🎬 Watch: How to identify that grinding noise under your hood.
- Visible Leaks: The compressor has seals that can fail, leading to refrigerant and oil leaks on the compressor body. Some GM compressors of this era were known for leaking from the case halves, earning them the nickname "bellyleakers".
- Compressor Clutch Not Engaging: The outer pulley of the compressor should spin with the engine. When you turn on the A/C, the center part of the pulley (the clutch) should engage and spin with it. If it doesn't, it could be an electrical issue or a seized compressor.
Known Issue: Compressor "Black Death"
A catastrophic compressor failure, known as "Black Death," is a serious concern. This is when the compressor grenades internally, sending tiny metal particles throughout the entire A/C system. If this happens, simply replacing the compressor is not enough. The new compressor will fail almost immediately as it ingests the debris. A complete repair requires replacing the compressor, accumulator/drier, and orifice tube, plus a thorough flush of all lines and the evaporator and condenser.
Choosing the Right Aftermarket A/C Compressor
You don't need to buy from the dealer to get a quality part. Many aftermarket brands are the original equipment (OEM) suppliers or offer comparable quality. For the Express 1500, brands fall into a few tiers.
- Top Tier (OEM Quality): Delphi and Denso are often the original manufacturers for GM. Choosing a new compressor from one of these brands is the safest bet for long-term reliability and performance that matches the factory part.
- Mid Tier (Quality Aftermarket): Brands like Valeo and some new units from Four Seasons offer a good balance of price and quality. They are reputable aftermarket manufacturers.
- Economy Tier: This category includes many store brands and lesser-known names. While the upfront cost is low, the risk of premature failure is higher. These are best for budget-focused repairs where longevity is less of a concern.
Pro Tip: Always Buy New and Buy a Kit
Avoid remanufactured compressors if possible; forum users report mixed results and a higher failure rate. Always buy a new compressor. It is also highly recommended to purchase an A/C kit that includes a new accumulator/drier and orifice tube. Your warranty will likely require you to replace these parts anyway, and it's critical for the health of the new compressor.
🎬 See this walkthrough on replacing the compressor, drier, and orifice tube.Estimated Replacement Costs
The cost to replace the A/C compressor in your Express 1500 can vary significantly based on who does the work and the extent of the damage.
| Item | Estimated Cost |
|---|---|
| New Aftermarket A/C Compressor | $207 - $448 |
| A/C Replacement Kit (Compressor, Drier, Orifice Tube, Oil) | $250 - $550 |
| Shop Labor (including system evacuation and recharge) | $350 - $900+ |
| Total Professional Installation | $700 - $1,500+ |
Frequently Asked Questions
Do I have to replace other parts with the compressor?
Yes. At a minimum, you MUST replace the accumulator (also called a receiver/drier) and the orifice tube. The accumulator contains a desiccant that removes moisture from the system, and it can only absorb so much. Opening the system to replace the compressor exposes the desiccant to air, ruining it. Failing to replace these parts will void the warranty on your new compressor and lead to its early failure.
Is this a good DIY project?
For experienced DIYers, yes. However, it is not recommended for beginners. The job requires specialized tools, including a refrigerant recovery machine, a vacuum pump, and an A/C manifold gauge set to properly evacuate and recharge the system. Releasing refrigerant into the atmosphere is illegal and harmful to the environment. If you are not equipped for this, you can save on labor by replacing the components yourself and then taking the van to a shop for a professional evacuation and recharge.

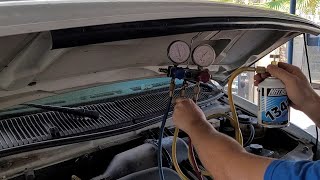

🎬 Watch: How to vacuum down and recharge your A/C system.Was there a recall on the A/C compressor?
No, there have been no specific recalls for the A/C compressor on the 2003-2014 Express 1500. There was a recall (NHTSA 23V-247) for the rear HVAC wiring on cutaway chassis models, but this does not affect the compressor itself. A Technical Service Bulletin (TSB) was issued to update software that could cause refrigerant to be vented, but this was not a recall for the compressor hardware.
What kind of oil does the A/C system use?
The A/C system in your Express van uses PAG 46 oil. Most new compressors come pre-filled with the correct amount of oil. However, you must always verify the amount and type in the compressor's instructions. If you are flushing the system, you will need to add the correct total amount of oil back into the various components (compressor, accumulator, evaporator) according to the service manual.
Helpful Videos
Technical Specifications
OEM Part Numbers: 19130456 89018944 89019028 1520940 1521127
Compressor Type: Varies by engine and year (e.g., HT6, 10S20C). Refrigerant Type: R-134a. Clutch Included: Yes. Pulley Grooves: 6.
