A Guide to the 2003-2014 Chevrolet Express 1500 Rear Differential Cover
Stop gear oil leaks and protect your van's rear axle with the right aftermarket differential cover.
- The primary reason for replacement is rust on the original stamped steel cover causing gear oil leaks.
- Upgrading to an aftermarket cover with a drain plug from a brand like Dorman will make future fluid changes much easier.
- For heavy towing or demanding use, a cast iron or aluminum cover from Yukon Gear & Axle provides superior protection and cooling.
- Before starting the job, always loosen the fill plug first to ensure you'll be able to refill the differential after draining it.
Is Your Express 1500 Leaking from the Rear?
The most common reason to replace the differential cover on a 2003-2014 Chevrolet Express 1500 is rust. The original factory cover is made of stamped steel, which can corrode over time, especially in regions that use road salt during winter. This rust creates small pinholes, causing gear oil to seep out. You might notice dark, oily spots on your driveway or a wet appearance on the differential itself.
Symptoms of a Failing Differential Cover
- Gear Oil Leaks: Dark fluid spots under the rear axle are the most obvious sign.
- Whining or Howling Noises: A whining sound from the rear of the van that gets louder as you accelerate can mean the gear oil is low due to a leak.
- Visible Rust and Corrosion: Bubbled paint or heavy rust on the cover itself is a sign that it's failing and may be leaking.
Pro Tip: Check the Vent Tube
Before you assume the cover is the only problem, check the axle's vent tube. This small tube, usually located on one of the axle tubes, allows pressure to escape. If it gets clogged with mud or rust, pressure can build up inside the axle and force oil out past seals, making it look like you have a leak. A quick cleaning of the vent might solve your problem.
Choosing the Right Aftermarket Differential Cover
When replacing your cover, you have several options that range from basic replacements to heavy-duty upgrades. The original GM part is a simple stamped steel cover, but the aftermarket offers superior choices.
Good: Standard Replacement (OE-Style)
These are direct, no-frills replacements for the factory cover, typically made from stamped steel. Brands like Replacement and basic Dorman models fall into this category. They are the most affordable option and are perfect if you just need to fix a leak and restore original function.
🎬 See a quick summary of the differential fluid change process.Better: Upgraded Steel or Cast Covers

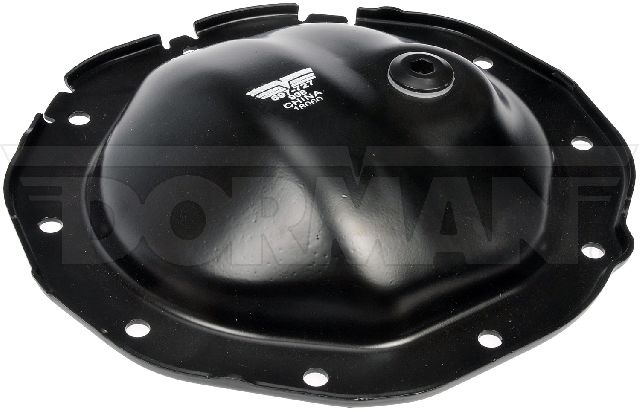

This tier, often offered by brands like Dorman, provides an improvement over the stock design. Many of these covers are made from thicker steel or cast aluminum for better durability. A key feature to look for is an integrated drain plug. The original cover has no drain plug, meaning you have to remove the whole cover to change the fluid. An aftermarket cover with a drain plug makes future maintenance much easier.

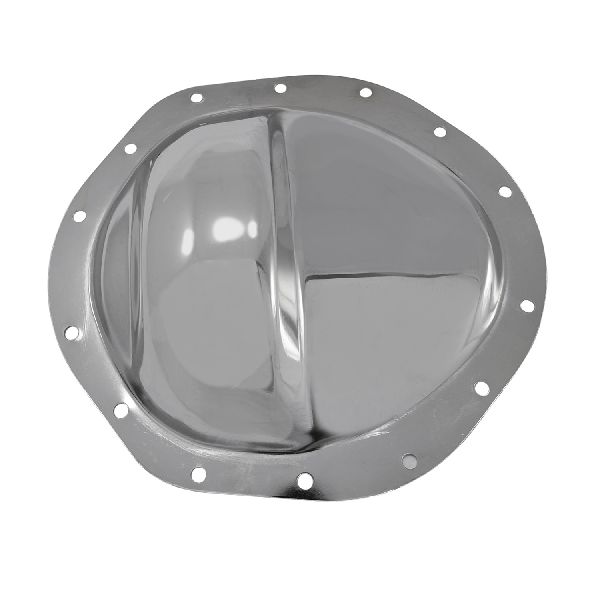

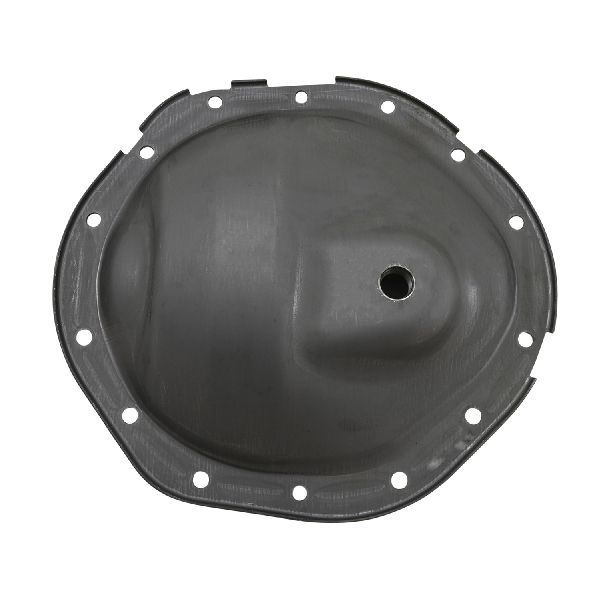

Best: Heavy-Duty & Performance Covers
For vans that tow heavy loads or see severe use, a heavy-duty cover from a brand like Yukon Gear & Axle is a worthwhile investment. These covers are made from thick, high-strength nodular iron or cast aluminum and offer several benefits:
- Cooling Fins: Help dissipate heat from the gear oil, extending the life of your differential.
- Increased Rigidity: The thick construction can help strengthen the axle housing itself.
- Magnetic Drain Plugs: Capture tiny metal particles, keeping the oil cleaner.
- Increased Oil Capacity: Some designs hold more oil for better lubrication and cooling.
Known Issues, Recalls, and Service Bulletins
There are no specific recalls or Technical Service Bulletins (TSBs) from the NHTSA for the differential cover on the 2003-2014 Chevrolet Express 1500. Searches for common problems consistently point to the stock cover rusting through, which is a maintenance and wear issue rather than a factory defect.
| Part Type | Estimated Cost |
|---|---|
| New OEM | $75 - $120 |
| New Aftermarket | $61.70 - $106.36 |
| Shop Labor | $100 - $200 |
Frequently Asked Questions (FAQ)
Do I need a new gasket or should I use RTV sealant?
Both a physical gasket and high-quality, gear-oil-resistant RTV sealant can create a reliable seal. Many technicians prefer using RTV sealant alone for a durable, leak-free fit. The most critical step for either method is ensuring both the new cover and the axle housing's mating surfaces are perfectly clean and free of old gasket material, rust, and oil before installation.
What kind of gear oil does my Express 1500 need?
Most 2003-2014 Chevrolet Express 1500 vans require SAE 75W-90 or 80W-90 synthetic gear lubricant. If your van has a limited-slip differential (G80 option code), you must also add a special limited-slip additive. 🎬 Watch how to service a G80 differential and replace the gasket. Always check your owner's manual or a reliable service guide for the exact fluid specification for your vehicle.
Is an aluminum cover better than a steel one?
Cast aluminum covers are generally considered an upgrade. They do not rust like steel covers and are better at dissipating heat, which helps keep your differential running cool, especially under load. They are also much more rigid than stamped steel covers.
Can I replace the differential cover myself?
Yes, this is a job that a DIYer with basic tools can handle. The process involves safely lifting and supporting the rear of the van, draining the old oil, removing the old cover, cleaning the sealing surface, and installing the new one. You may need to carefully move brake line brackets 🎬 Watch this full walkthrough of the fluid and cover replacement. that are attached to the cover bolts. Always use a torque wrench to tighten the bolts to the manufacturer's specification in a star pattern to ensure an even seal.
Helpful Videos
Technical Specifications
Fits GM 8.5"/8.6" rear axles with 10 cover bolts, which is standard on the 2003-2014 Chevrolet Express 1500.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
