Guide to Direct Ignition Coil Boot Kits for the 2003-2014 Ford E-150
Fixing engine misfires and rough idling on your Ford E-150 often starts with replacing these simple, yet critical, parts.
- Failing coil boots are a common cause of misfires (P030X codes), rough idle, and poor performance on the 2003-2014 E-150.
- It is best practice to replace all eight coil boots and spark plugs at the same time for reliability.
- Always use a small amount of dielectric grease inside the new boots to seal out moisture and prevent them from sticking.
- Quality aftermarket brands like Denso and Standard offer a reliable, cost-effective alternative to OEM parts for this repair.
Is Your E-150's Ignition Coil Boot Failing?
Ignition coil boots on Ford's modular engines, like the 4.6L or 5.4L V8 in your E-150, live in a high-heat environment. Over time, the rubber becomes brittle, cracks, and loses its ability to insulate properly. This allows the spark to jump to the cylinder head instead of the spark plug, causing an engine misfire. Moisture getting past a bad seal is another common reason for failure. Symptoms often start small but can lead to more significant issues, including damage to the catalytic converter if ignored.
Symptoms of a Bad Coil Boot
If your E-150 has a failing coil boot, you'll likely notice one or more of these signs:
- Engine Misfires: The van may shake, shudder, or jerk, especially when you accelerate or when the engine is under load.
- Rough Idle: The engine might sputter or run unevenly when you're stopped.
- Check Engine Light: A failing boot will almost always trigger the check engine light. You may see a random misfire code like P0300, or a code for a specific cylinder, such as P0301, P0302, etc.
- Loss of Power: Your van will feel sluggish and won't accelerate like it should.
Flashing Check Engine Light
If your check engine light is flashing, it signals a severe misfire that is dumping unburned fuel into the exhaust. This can quickly overheat and destroy your catalytic converter, a very expensive repair. Avoid driving the vehicle if possible.
Choosing the Right Aftermarket Coil Boot Kit
For a part like an ignition coil boot, aftermarket options provide excellent value without sacrificing quality. The original coils are often durable, and only the boot and the internal spring need replacement. When shopping for your E-150, you'll find reliable brands that meet or exceed OEM specifications.
- Denso: Denso is a well-respected brand and is often the original equipment manufacturer (OEM) for many ignition components. Choosing a Denso kit is the closest you can get to buying the original part, ensuring a perfect fit and long-lasting performance.
- Standard Wires (Standard Motor Products): SMP is a major aftermarket manufacturer known for producing quality replacement parts. Their coil boot kits are a solid, reliable choice for a standard repair and are widely available.
Both brands are considered good choices by mechanics and DIYers. The key is to ensure you are buying from a reputable seller to avoid counterfeit parts, which can be a problem with popular brands like Denso.
🎬 Learn how to spot the difference between authentic and fake Denso coils.Pro Tip: Replace Boots and Plugs Together
It is highly recommended to replace all the coil boots at the same time you replace your spark plugs. Since you already have to remove the coils to get to the plugs, replacing the boots adds very little extra time or labor. This ensures the entire secondary ignition system is refreshed, preventing future misfires from another old boot failing. Also, always apply a small amount of dielectric grease to the inside of the new boot to seal out moisture and make future removal easier.

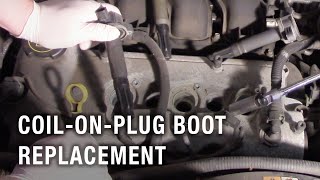

🎬 See a step-by-step guide on replacing ignition coil boots on your E-Series.Estimated Costs for a Full Set (8) of Coil Boots
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket (Denso, Standard) | $54.00 - $57.33 |
| Shop Labor | $150 - $250 |
Frequently Asked Questions (FAQ)
Should I replace all eight coil boots at once?
Yes. The rubber on all boots degrades at a similar rate due to heat and age. If one has failed, others are likely not far behind. Replacing them all at once is the best practice to ensure reliability and avoid repeating the repair in the near future.
Do I need to replace the entire ignition coil or just the boot?
Often, only the boot and spring have failed, not the coil itself. You can test this by swapping the suspect coil with a known good one from another cylinder. If the misfire code moves to the new cylinder, the entire coil is bad. If the misfire stays, the problem may be the spark plug or another issue. However, if the boot is visibly damaged, torn, or has signs of moisture, replacing just the boot kit is a cost-effective first step.
What is dielectric grease and is it necessary?
Yes, it is highly recommended. Dielectric grease is a non-conductive, silicone-based grease that you apply to the inside ends of the coil boot. It serves two purposes: it seals the connection from moisture which prevents corrosion and misfires, and it prevents the rubber boot from getting stuck to the spark plug's ceramic insulator. Use a small dab on each end of the boot before installation.
Are there any recalls or TSBs for my E-150's ignition system?
Searches for recalls on the 2003-2014 Ford E-150 did not show any specific to the ignition coils or boots. However, Ford did issue a Technical Service Bulletin (TSB 05-22-8) for a wide range of vehicles, including the E-Series, regarding diagnosing coil-on-plug issues. This TSB provides diagnostic tips for technicians but does not indicate a specific manufacturing defect with the boots themselves. Another TSB for F-150s (14-0180) noted that misfires could be caused by the boots and recommended replacing them along with the plugs, but this was for a different engine series.
Helpful Videos
Technical Specifications
This kit contains the rubber boots and internal contact springs that connect the main ignition coil body to the spark plug. The boots are designed for a coil-on-plug (COP) ignition system and are made from high-temperature silicone to resist heat and prevent voltage leaks.
