Ford E-150 Ignition Lock Cylinder Guide: 2003-2014
Key won't turn or gets stuck? Here's what every 2003-2014 Ford E-150 owner needs to know before replacing the ignition lock cylinder.
- The biggest hurdle is Ford's PATS anti-theft system, which requires programming the new keys to the van before it will start.
- Replacement is very easy IF the key can be turned to the 'RUN' position; otherwise, it becomes a difficult job requiring drilling.
- Symptoms like a freely spinning key may point to a broken actuator inside the steering column, not the lock cylinder itself.
- Choose a brand based on your budget, but factor in the cost of professional key programming unless you have the tools.
Is Your E-150 Ignition Lock Cylinder Failing?
On the 2003-2014 Ford E-150, ignition lock cylinder failure is a common problem. Due to the high number of key cycles these work vans endure, the small metal parts (called wafers or tumblers) inside the cylinder wear out. This leads to several distinct and frustrating symptoms.
Common Symptoms of Failure:
- Key is Hard to Turn: You feel increasing resistance when trying to turn the key. It might feel gritty or sticky.
- Key Won't Turn at All: The most common failure. The key goes in but is completely stuck and won't rotate to the 'RUN' or 'START' position. This can happen suddenly, leaving you stranded.
- Key Gets Stuck in the Ignition: You can start and stop the van, but you can't remove the key from the cylinder.
- Lock Cylinder Spins Freely: The key and cylinder spin around without engaging any of the ignition positions. This often points to a different, related failure of the actuator rod inside the column, not the cylinder itself. 🎬 See how a broken actuator rod causes the cylinder to spin.
- Key Can Be Removed While Driving: Worn tumblers may allow the key to be pulled out in any position, which is a safety risk.
CRITICAL: Can You Turn the Key?
Before ordering a part, check if your existing key can turn to the 'RUN' position. If it can, the replacement is a simple, 15-minute job. 🎬 Watch this step-by-step guide to replacing your lock cylinder. If it CANNOT, the job becomes much harder and may require drilling out the old cylinder, which risks damaging the steering column. A locksmith may be required if you cannot turn the key.
Choosing the Right Aftermarket Ignition Cylinder
For the E-150, the quality of the mechanical cylinder itself is similar between OEM and good aftermarket options. The most important consideration is dealing with the van's anti-theft system.
A Note on Ford's PATS (Passive Anti-Theft System): Your original key has a transponder chip inside that your van must recognize to start. A new lock cylinder comes with new keys that are NOT programmed to your van. After installation, the van will crank but will not start until the new keys are programmed. This requires a special scan tool, a mobile locksmith, or a trip to a dealership. Some kits may include a DIY programmer, but this is not common for this model year.
Aftermarket Brand Tiers for Ford E-150
- Standard Ignition (SMP): Often considered a premium aftermarket brand, providing quality and fit that meets or exceeds OEM specifications. A solid choice for reliability.

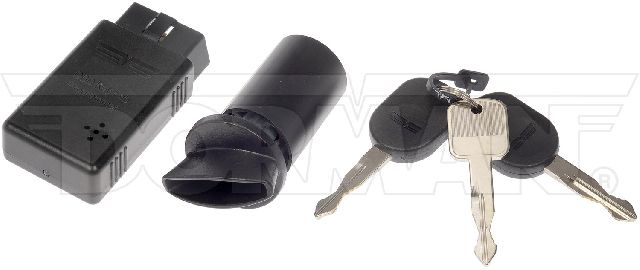

- Dorman: A well-known brand that offers a direct replacement for the E-150. Dorman parts are widely available and are a reliable, mid-tier option for daily use. Some Dorman kits for other vehicles include DIY programming tools, but check the specific part number for your van.
- Replacement: This is typically a private-label, budget-friendly option. It will get the job done, but may not have the same long-term durability as higher-priced brands. It's a viable choice if the budget is the primary concern.
Cost of Replacing the Ignition Lock Cylinder
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Ignition Lock Cylinder | $33 - $154 |
| Shop Labor (Installation) | $60 - $120 |
| Key Programming (Locksmith/Dealer) | $75 - $150 |
| Total Estimated Cost | $168 - $424 |
Costs are estimates and can vary based on your location and the specific services required. Labor cost assumes the old key can be turned.
Frequently Asked Questions
My key is stuck and won't turn. What should I do?
First, make sure the gear shifter is firmly in Park and try wiggling the steering wheel left and right while gently trying to turn the key, as the steering lock can bind the cylinder. You can also try a small spray of dry graphite lubricant (use sparingly). If it still won't turn, do not force it. The cylinder will likely need to be drilled out by you or a professional to be removed.
What's the difference between the ignition lock cylinder and the ignition switch?
The lock cylinder is the mechanical tumbler you put your key into. The ignition switch is the electronic component behind it that the cylinder turns. If your key turns but nothing happens (no dash lights, no start), the switch is a more likely culprit. If your key won't turn or gets stuck, the cylinder is the problem.
Can I use my old keys with the new lock cylinder?
No. A new lock cylinder is keyed differently and comes with its own set of new keys. To use one key for the doors and ignition, you would need to either have the new cylinder re-keyed by a locksmith to match your old key, or replace the door lock cylinders at the same time.
Why won't my van start after installing the new cylinder?
This is due to the PATS anti-theft system. The van's computer does not recognize the chip in your new keys. You must have the new keys programmed to the vehicle's computer using a compatible scan tool. The anti-theft light on your dashboard may be flashing rapidly to indicate this problem.
🎬 Learn more about Ford PATS info and the key relearn procedure.Helpful Videos
Technical Specifications
Comes with two new keys containing transponder chips for the PATS system. Requires programming. Does not include the electronic ignition switch.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
