Ford E-250 Front Axle Pivot Bushing Guide (2003-2014)
Address front-end clunks and wandering steering by understanding and replacing your van's axle pivot bushings.
- Worn axle pivot bushings are a common cause of clunking noises, wandering steering, and uneven tire wear on 2003-2014 E-250s.
- Replacement is a difficult job requiring special tools like a ball joint press; professional installation is recommended for most owners.
- Always get a front-end alignment immediately after replacing the bushings to prevent tire damage and ensure safe handling.
- Verify the correct bolt and bushing diameter for your specific van before ordering parts, as variations exist.
Is Your E-250's Front End Making Noise?
A common source of front-end problems on the 2003-2014 Ford E-250 is a worn-out axle pivot bushing. Because these vans are heavy and often used for work, these bushings take a lot of abuse. When the original rubber wears out, it allows for excess movement in the Twin I-Beam suspension. This can lead to a number of noticeable symptoms that affect handling and safety.
Symptoms of a Bad Axle Pivot Bushing
If you're experiencing any of the following, your pivot bushings are a likely suspect:
- Clunking or Popping Noises: You may hear a distinct "clunk" or pop from the front end, especially when going over bumps, potholes, or making sharp turns. 🎬 Watch: How to identify and diagnose front-end clunking noises This is the sound of the metal I-beam moving around in its bracket because the bushing is no longer holding it securely.
- Wandering or Vague Steering: The van may feel like it's drifting or wandering on the road, requiring constant steering corrections to keep it straight. This happens because the worn bushings allow the front axles to shift, changing the wheel alignment as you drive.
- Uneven Tire Wear: Worn pivot bushings are a common cause of abnormal tire wear, particularly on the inside or outside edges. Even after a fresh alignment, the tires will continue to wear unevenly if the bushings are bad.
- Steering Wheel Shimmy: A shimmy or vibration felt in the steering wheel at certain speeds (like 45-50 mph) can sometimes be traced back to worn pivot bushings.
Known Issues & Recalls
Searches of the National Highway Traffic Safety Administration (NHTSA) database did not find any specific recalls or widespread Technical Service Bulletins (TSBs) for the axle pivot bushings on the 2003-2014 Ford E-250. Most issues are related to normal wear and tear on these heavy-duty vehicles. While some TSBs exist for suspension noises, they are not specific to pivot bushing failure.

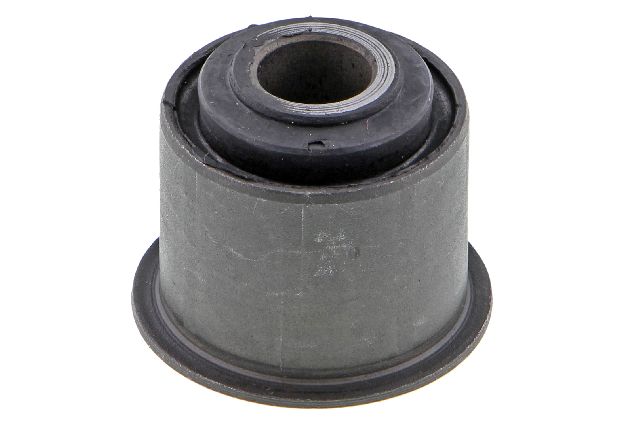

Choosing the Right Aftermarket Bushing
For the E-250, you have a few good aftermarket choices. The decision often comes down to standard replacement vs. a potential upgrade.
Brand Tiers for Ford E-250
- Dorman: Dorman is a well-known aftermarket brand that provides direct replacement parts. Their axle pivot bushings are designed to fit and perform like the original equipment. They are a cost-effective choice for a standard repair and are generally considered a budget-friendly option that gets the job done for daily driving.
- Mevotech: Mevotech offers parts that balance quality and affordability. For some applications, they offer "problem-solver" designs that may be more durable than the original. They are often priced in the mid-range and provide acceptable performance for most users.
- OEM (Ford): The original Ford bushings are what your van came with. While aftermarket options are the focus here, it's worth noting that some mechanics prefer to stick with OEM for suspension parts to guarantee fit and material quality, though they come at a higher cost.
Pro Tip: Check Your Bolt Size
Some E-250 models have different pivot bolt diameters (e.g., 9/16 inch or 5/8 inch) or bushing outside diameters. It is critical to verify the correct size for your specific van before ordering. If possible, measure the old part or check for markings on the axle beam itself.
Replacement Cost
The cost to replace axle pivot bushings can vary based on shop labor rates and which parts you choose.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Bushings (Dorman, Mevotech) | $10 - $23 (per side) |
| Shop Labor | $150 - $300 |
| Total Estimated Cost | $160 - $323 |
Note: Labor costs can be higher if the old bushings are seized and difficult to remove. An alignment is highly recommended after replacement, which adds to the total cost.
Frequently Asked Questions (FAQ)
Can I replace the axle pivot bushings myself?
This is a challenging DIY job that requires specific tools. You will need to safely lift and support the front of the van, unbolt the I-beams, and then use a ball joint press or a combination of chisels, saws, and hammers to remove the old bushing. 🎬 See this easy method for removing stubborn axle pivot bushings Installing the new one also requires a press to avoid damage. Due to the difficulty and the need for special tools, most owners opt to have a professional mechanic perform this repair.
🎬 Watch a complete step-by-step axle pivot bushing replacement walkthroughDo I need an alignment after replacing the bushings?
Yes, absolutely. The axle pivot bushings are a key alignment point for the Twin I-Beam suspension. Replacing them will change your van's alignment. You must get a professional front-end alignment done immediately after the repair to prevent rapid tire wear and ensure the vehicle drives straight.
Should I replace both sides at the same time?
It is highly recommended. If one bushing has failed due to age and mileage, the other is likely not far behind. Replacing both at the same time ensures balanced handling, saves you from having to do the job twice, and allows for a single, accurate alignment.
What's the difference between rubber and polyurethane bushings?
Original bushings are typically made of rubber, which provides a softer, quieter ride. Some aftermarket brands offer polyurethane bushings, which are stiffer and more durable. Polyurethane can improve steering response and last longer, but may transmit more road noise and vibration into the cabin compared to rubber. For a heavy work van like the E-250, many owners find the durability of polyurethane to be a worthwhile trade-off.
Helpful Videos
Technical Specifications
Fits Ford Twin I-Beam front suspension. Bushing material is typically rubber or polyurethane. Bolt sizes can vary (e.g., 9/16" or 5/8"). Outside diameter can also vary (e.g., 1.702" or 1.762").
