A Ford E-250 Owner's Guide to the Engine Cooling Fan Clutch (2003-2014)
Stop your van's engine from overheating by understanding, diagnosing, and replacing a faulty fan clutch.
- Engine overheating at idle is the #1 sign of a bad fan clutch; address it immediately to avoid engine damage.
- A loud, constant roaring noise means the clutch is seized, which hurts performance and fuel economy.
- For a work van like the E-250, choosing a 'heavy-duty' or 'severe-duty' aftermarket clutch is a smart upgrade.
- DIY replacement is possible but requires a special fan clutch wrench set, which can often be rented.
Is Your E-250's Fan Clutch Failing?
A bad fan clutch can cause issues ranging from annoying noises to severe engine damage. Because these vans often operate under heavy loads, catching a failing clutch early is crucial. Look for these common signs.
Key Symptoms of a Bad Fan Clutch
- Engine Overheating: The temperature gauge climbs in stop-and-go traffic or when idling, but may return to normal at highway speeds. This is the most serious symptom.
- Loud Roaring Noise: A constant roaring or whirring sound from the engine that increases with RPMs suggests the fan clutch is seized or locked in the engaged position. This also hurts fuel economy and engine power.
- Fan Spins Too Freely: With the engine off and cool, try spinning the fan by hand. If it spins more than one or two times with no resistance, the internal fluid has likely failed.
- Wobbly Fan: If you can wobble the fan blade back and forth (towards the radiator and back), the bearing inside the clutch is worn out and the part needs to be replaced.
Choosing the Right Aftermarket Fan Clutch
While you can always get a Motorcraft part from a Ford dealership, quality aftermarket brands offer reliable performance for less money. For a work vehicle like the E-250, it's wise to invest in a quality replacement. Aftermarket clutches are often available in different duty levels.
- Standard Duty: A suitable replacement for daily driving and light-duty use.
- Heavy-Duty / Severe-Duty: Recommended for the E-250, especially if you use it for towing, hauling heavy loads, or in hot climates. These clutches engage more firmly to provide maximum cooling under stress.
Based on owner feedback and brand reputation, here is a general guide to available brands:
- Top-Tier Aftermarket: Brands like Hayden are frequently recommended by Ford owners and have a long history of making reliable cooling parts.
- Good Value Options: GMB and US Motor Works are also common choices that generally offer good performance for the price.
- Standard Replacement: Four Seasons and Global Parts are large suppliers with wide availability. While some users have had success, others have reported mixed results, so check for part-specific reviews.
Estimated Replacement Costs
| Part/Service | Estimated Cost |
|---|---|
| New OEM (Motorcraft) Part | $155 - $233 |
| New Aftermarket Part | $71.84 - $128.62 |
| Shop Labor | $171 - $251 |
| Total Professional Replacement 🎬 See this replacement walkthrough to save money by doing it yourself. | $326 - $484 |
A Note on Known Issues
Searches of the National Highway Traffic Safety Administration (NHTSA) database and technical service bulletins (TSBs) did not find any specific recalls or widespread defects for the engine cooling fan clutch on the 2003-2014 Ford E-250. Failures are almost always due to normal wear and tear over many years and miles.
Frequently Asked Questions (FAQ)
How do I test my fan clutch? 🎬 Watch: A mechanic demonstrates how to diagnose a bad fan clutch.
With the engine completely cool and turned off, try to spin the fan by hand. It should have some resistance and stop within 1 to 1.5 rotations. If it spins freely for several rotations, it's bad. Also, try to wiggle the fan blade assembly; there should be no side-to-side play. If the engine is hot, shut it off and watch the fan; it should stop almost immediately. If it continues to spin, the clutch is not engaging properly.
Can I drive with a bad fan clutch?
It depends on the failure. If the clutch is seized and making a loud roaring noise, you can drive it, but you will have reduced power and fuel economy. If the clutch is not engaging and the engine is overheating, you should not drive it. Driving an overheating engine can cause severe and expensive damage.
Do I need special tools to replace the fan clutch?
Yes, a special fan clutch wrench set is required to do this job properly. It includes a large, thin wrench for the main nut and a tool to hold the water pump pulley still. Many auto parts stores offer these sets as a free loaner or low-cost rental tool.
🎬 Watch: See how this specialized fan clutch wrench set works.Why is my new fan clutch so loud?
A new fan clutch, especially a heavy-duty model, may seem more aggressive or louder than the old, worn-out one. It will engage more forcefully when the engine is hot, which is normal. Some aftermarket brands are known to be more aggressive than the OEM design, which can result in more fan noise. However, if the noise is constant and never disengages even when the engine is cold, the part may be faulty.

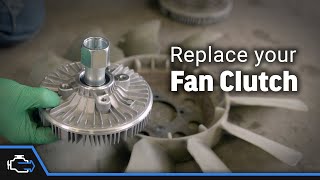

Helpful Videos
Technical Specifications
OEM Part Numbers: W0133-1883631
This is a thermally-activated, mechanical fan clutch that bolts to the water pump pulley. Rotation direction and thread size are critical for fitment.
