Ford E-250 Ignition Coil Guide for 2003-2014 Models
Solve rough idling and misfires in your Ford van by choosing the right replacement ignition coil.
- A flashing check engine light indicates a severe misfire; stop driving to prevent catalytic converter damage.
- Use an OBD-II scanner to identify the specific cylinder (e.g., P0304 for cylinder 4) causing the misfire.
- For reliability, choose reputable aftermarket brands like Bosch, Delphi, Denso, or NGK over cheap, unbranded coils.
- Always apply dielectric grease to the new coil boot to protect against moisture and ensure a good connection.
Is Your E-250 Running Rough? It Could Be an Ignition Coil.
A failing ignition coil is a common problem on Ford's modular engines, including the 4.6L and 5.4L V8s found in your 2003-2014 E-250. 🎬 Watch a breakdown of common Ford E-250 reliability issues. When a coil starts to go bad, it can't produce a strong enough spark, leading to an engine misfire. You might feel this as a shudder or hesitation, especially when accelerating or idling at a stoplight. Ignoring a misfire can lead to more serious issues, like damage to your catalytic converter, which is an expensive repair.
Flashing Check Engine Light? Pull Over.
If your check engine light is flashing, it signals a severe misfire. Unburned fuel is being dumped into the exhaust, which can quickly destroy the catalytic converter. It's best to stop driving as soon as it's safe to do so to prevent further damage.
Choosing the Right Aftermarket Ignition Coil
When it comes to ignition parts for these Ford vans, quality matters. While Ford's own Motorcraft brand is the original equipment manufacturer (OEM) and a trusted choice, several aftermarket brands offer comparable or better quality, often at a lower price. Cheap, unbranded coils found on sites like Amazon or eBay are often hit-or-miss and can fail quickly, leading to more headaches down the road.
Brand Quality Tiers for Your E-250
- Top Tier (OEM Equivalents): Brands like Bosch, Delphi, Denso, and NGK are often original equipment suppliers to major automakers. They are known for their reliability and are considered a safe bet for a long-lasting repair. 🎬 See a comparison of the best performing ignition coil brands. Denso is reported to be the original manufacturer for many Motorcraft coils.
- Reliable Aftermarket: Standard Motor Products (SMP) and Hitachi have a solid reputation among mechanics for producing quality parts that meet or exceed OEM specifications. These offer a great balance of price and performance.
- Budget & Performance: Brands like DriveWire and Spectra offer budget-friendly options, while Edelbrock and MSD focus on high-performance applications. For a workhorse van like the E-250, sticking with brands known for durability over high performance is usually the best approach.
Pro Tip: Replace in Sets?
If one coil fails on a high-mileage van, the others may not be far behind. Many mechanics recommend replacing all eight coils at once, along with the spark plugs, to save on future labor and ensure consistent performance. If you're on a budget, you can replace just the failed coil, but be prepared for another to fail later.
Known Issues, Recalls, and Service Bulletins
For the 2003-2014 Ford E-250, there are no specific recalls or Technical Service Bulletins (TSBs) directly related to widespread ignition coil failure. Most issues are due to age, heat, and mileage. However, a persistent misfire on the same cylinder after replacing the coil could point to a wiring issue or, in rare cases, a problem with the engine control module (ECM).
| Part / Service | Estimated Cost |
|---|---|
| Single Aftermarket Ignition Coil | $23 - $80 |
| Single OEM (Motorcraft) Ignition Coil | $45 - $90 |
| Shop Labor (Single Coil) | $75 - $150 |
| DIY Replacement (Single Coil) | Cost of part only |
Frequently Asked Questions
How do I find which ignition coil is bad?
The easiest way is to use an OBD-II scanner. When the check engine light is on, the scanner will read a trouble code like P030X, where 'X' is the cylinder number that's misfiring (e.g., P0305 is cylinder 5). You can also get a code like P035X, which points directly to an issue with the coil circuit for that cylinder. A common diagnostic trick is to swap the suspected bad coil with a coil from a known good cylinder. If the misfire code moves to the new cylinder, you've confirmed the coil is faulty.

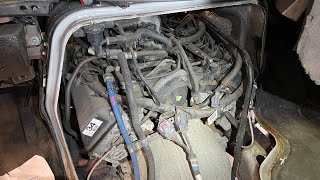

🎬 Learn the first steps for diagnosing a Ford E-250 misfire.Should I replace the spark plugs at the same time?
Yes, it's highly recommended. Worn-out spark plugs have a wider gap, which forces the ignition coil to work harder to create a spark. This extra strain can cause new coils to fail prematurely. Since you already have to access the area, replacing the plugs and coils together is efficient.
Is replacing an E-250 ignition coil a DIY job?
Yes, for most people with basic tools. The coils are located on top of the engine, one for each cylinder. Access can be tight, especially for the cylinders at the back of the engine bay, which are located under the interior "doghouse" engine cover. Each coil is held in by a single 7mm bolt. You simply unplug the electrical connector, remove the bolt, and pull the coil straight up.
What is dielectric grease and do I need it?
Dielectric grease is a non-conductive, silicone-based grease applied to the inside of the new coil's boot before installing it. It helps seal out moisture and dirt, prevents the boot from getting stuck to the spark plug, and protects the electrical connection. It's a small but important step for a lasting repair.
Helpful Videos
Technical Specifications
OEM Part Numbers: DG508 3L3Z-12029-BA FD503
The 2003-2014 Ford E-250 with the 4.6L or 5.4L 2-valve V8 engine uses a Coil-on-Plug (COP) system. Each coil is secured by one 7mm bolt. No special tools are required for replacement beyond a basic socket set and perhaps an extension for rear cylinders.
