Toyota Matrix A/C Expansion Valve: A Guide for 2003-2014 Models
Is your Matrix A/C blowing warm? This guide covers common symptoms and how to choose the right replacement expansion valve.
- A failing expansion valve is a common cause for warm A/C in a Toyota Matrix.
- Replacement is not a DIY job; it requires special equipment to handle refrigerant legally and safely.
- Always replace the receiver/drier when replacing the expansion valve to ensure system longevity.
- Denso is the preferred brand for OEM-quality fit and performance, while Four Seasons offers a reliable, budget-friendly alternative.
Is Your Toyota Matrix A/C Not Cold Enough?
If the air conditioning in your 2003-2014 Toyota Matrix isn't performing like it used to, a failing A/C expansion valve could be the culprit. This component is essential for regulating refrigerant flow, and when it fails, your comfort suffers. Common signs include air from the vents that isn't cold, is only slightly cool, or fluctuates in temperature. You might also notice frost on your A/C components or hear unusual hissing sounds from the dashboard area.
🎬 Watch: A detailed breakdown of bad expansion valve symptoms.A/C System Contamination
If your A/C compressor has failed, it may have sent metal debris throughout the system. This debris can clog the new expansion valve, causing it to fail immediately. It is critical to flush the entire A/C system and replace the receiver/drier anytime you replace the compressor or expansion valve to prevent repeat failures.
Choosing the Right Aftermarket Expansion Valve
When replacing the A/C expansion valve on your Matrix, you have several aftermarket options. Since Toyota often uses Denso for its original equipment (OE) parts, Denso is a top-tier choice for replacement. However, other brands offer a good balance of quality and value.
- Denso: As a likely Original Equipment (OE) supplier for Toyota, Denso parts are considered the gold standard for fit and performance. Choosing Denso ensures you are getting a part that meets or exceeds the original factory specifications. Many mechanics and owners prefer Denso for its reliability.

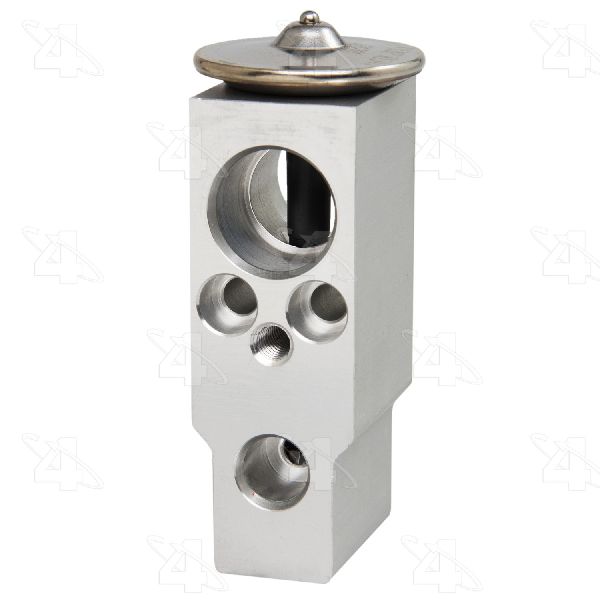

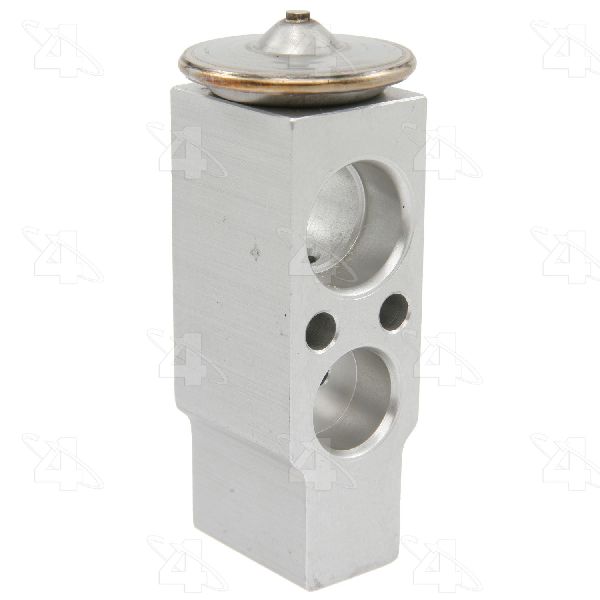

- Four Seasons: Four Seasons is a well-known aftermarket brand that has been producing A/C components for a long time. They offer a good balance of affordability and quality, making them a popular choice for many repairs. While generally considered a solid option, some professional opinions vary, with some preferring OE brands like Denso.

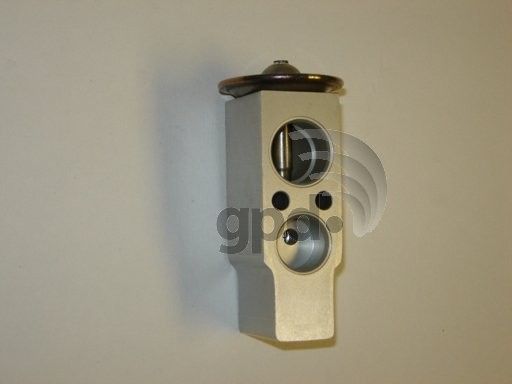

- Global Parts Distributors (GPD): GPD is another aftermarket supplier offering cost-effective A/C components. Their parts are designed to meet OE specifications for fit and function and are durability tested. While some users report success with GPD parts, others have noted inconsistent quality compared to OE or premium aftermarket brands. They can be a good budget-friendly option, especially if the primary concern is cost.
Pro-Tip: Replace the Receiver/Drier
Whenever you open the A/C system to replace a component like the expansion valve, you must also replace the receiver/drier (also called an accumulator). The drier contains a desiccant that absorbs moisture from the refrigerant. Once exposed to atmospheric air, this desiccant becomes saturated and can no longer protect your A/C system from moisture, which can lead to corrosion and component failure.
Cost to Replace a Toyota Matrix A/C Expansion Valve
The cost of replacement involves the part itself and the labor to install it. Labor is a significant factor because the job requires specialized equipment to recover and recharge the refrigerant.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Expansion Valve | $25 - $75 |
| Shop Labor (including refrigerant recovery/recharge) | $465 - $900+ |
| Total Estimated Cost | $490 - $975+ |
*Cost estimates are for reference only and can vary based on location, vehicle year, and specific shop rates. 🎬 See a full diagnosis and replacement walkthrough for the Matrix.
Frequently Asked Questions
Can I replace the expansion valve myself?
This is not recommended for a typical DIYer. Replacing the expansion valve requires specialized tools, including an A/C manifold gauge set and a vacuum pump. More importantly, the refrigerant in the system must be legally and safely recovered by a licensed professional before work can begin. Improper handling of refrigerant is harmful to the environment and can cause severe frostbite.
🎬 Watch this video to understand the expansion valve replacement process.Are there any recalls for the A/C system on the 2003-2014 Toyota Matrix?
Searches of the National Highway Traffic Safety Administration (NHTSA) database did not find any recalls specifically for the A/C expansion valve or A/C system components for the 2003-2014 Toyota Matrix. Recalls found for this vehicle range were primarily related to airbag inflators and control modules.
What's the difference between an expansion valve and an orifice tube?
Both parts serve the same basic function: they meter refrigerant into the evaporator. Your Toyota Matrix uses an expansion valve, which is a more complex part that can actively regulate flow based on temperature. Orifice tubes are simpler, fixed-size devices found in other vehicle A/C systems.
How can I tell if the expansion valve is stuck open or closed?

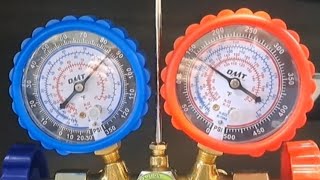

A technician can tell by using A/C manifold gauges. A valve stuck open often causes high readings on the low-pressure side. A valve stuck closed or clogged will cause abnormally low readings on the low-pressure side, sometimes even pulling into a vacuum.
Helpful Videos
Technical Specifications
OEM Part Numbers: 88515-02420 88515-02110 88515-02100 88515-07020 88515-02200 88515-02290
Block Type Expansion Valve
