Toyota Matrix Back Up Light Switch Guide for 2003-2014 Models
If your reverse lights are flickering or have stopped working, this guide will help you choose the right replacement switch for your Matrix.
- The most common symptom of failure is reverse lights that flicker or don't turn on at all.
- This is a very easy DIY repair that most owners can complete in under 30 minutes with basic tools.
- Quality aftermarket brands like Beck Arnley are a reliable and cost-effective alternative to the OEM part.
- Always check the bulbs and the 'GAUGE' fuse before assuming the switch has failed.
Is Your Toyota Matrix Back Up Light Switch Failing?
A faulty back up light switch is a common issue on many vehicles, including the 2003-2014 Toyota Matrix. The symptoms are usually straightforward, making it a relatively easy problem to diagnose. Because the reverse lights are a critical safety feature to warn pedestrians and other drivers, a non-working switch should be replaced promptly.
Symptoms of a Bad Switch
- No Reverse Lights: The most obvious sign is that your reverse lights do not turn on at all when you shift into reverse. Before blaming the switch, always check the bulbs and the 'GAUGE' fuse first, as these are simpler fixes. 🎬 Watch: How to replace the reverse light bulbs first.
- Flickering or Intermittent Lights: You might notice the reverse lights flicker or only work sometimes when you shift. This often points to worn internal contacts in the switch.
- Lights Stay On: In rare cases, the switch can fail in the 'on' position, causing the reverse lights to remain lit even when the car is not in reverse.
Check This First!
Before buying a new switch, you can perform a simple test. Locate the switch on top of the transmission and unplug its electrical connector. Use a small piece of wire or a paperclip to jump the two contacts inside the vehicle-side connector. Turn the ignition to the 'ON' position (without starting the engine). If the reverse lights turn on, the wiring, fuse, and bulbs are good, and the switch is the culprit.

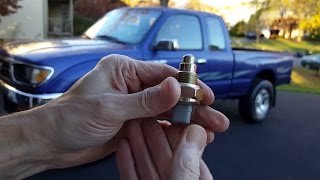

🎬 Watch this video to see how to diagnose the switch.Choosing the Right Aftermarket Back Up Light Switch
For a simple part like a back up light switch, an aftermarket replacement is often a cost-effective and reliable choice. The original equipment (OEM) switch from Toyota works perfectly well, but quality aftermarket brands offer similar performance for less money. There are no widespread reports of issues with reputable aftermarket switches for the Matrix.
Available Aftermarket Brands:
- Good Tier (Reputable & Tested): Brands like Beck Arnley and Standard Ignition (SMP) are well-known in the industry. Beck Arnley is specifically mentioned and used in DIY repair videos for the Toyota Matrix with positive results, making it a trusted option. 🎬 See a DIY walkthrough using a Beck Arnley replacement switch. Standard is a major supplier of automotive switches and is generally considered a safe bet.
- Economy Tier (Use with Caution): Brands like Facet and Rostra Powertrain are also available. However, there is very little independent data or owner reviews available for their specific back up light switches. While they may function correctly, their long-term durability is less proven compared to more established brands.
Pro Tip: The replacement process for manual and automatic transmissions is very similar for this part. The switch is located on top of the transaxle and is easily accessible from under the hood.
Cost of Replacing a Toyota Matrix Back Up Light Switch
The cost to replace this switch is low, especially if you do it yourself. The job is simple and requires only basic tools.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket | $29.93 - $56.37 |
| New OEM | $40 - $60 |
| Shop Labor | $62 - $95 |
| Total Professional Replacement | $100 - $155 |
Frequently Asked Questions (FAQ)
Where is the back up light switch located on a Toyota Matrix?
For both generations (2003-2008 and 2009-2014), the back up light switch is located on the top of the transmission housing, accessible from the engine bay. You do not typically need to lift the vehicle to access it.
Can I replace this switch myself?
Yes, this is a great DIY job for beginners. The difficulty is very low, and it should take less than 30 minutes. You will need a 27mm (or 1-1/16") socket or wrench to remove and install the switch. Simply disconnect the electrical plug, unscrew the old switch, screw in the new one (with its new washer), and reconnect the plug.
Are there any recalls for the Toyota Matrix back up light switch?
No. Searches of the National Highway Traffic Safety Administration (NHTSA) database and other sources show no recalls or technical service bulletins (TSBs) specifically for the back up light switch on the 2003-2014 Toyota Matrix.
Will a bad back up light switch cause a check engine light?
No, a failing back up light switch will typically not trigger the check engine light. The primary symptoms are related to the operation of the reverse lights themselves.
Helpful Videos
Technical Specifications
OEM Part Numbers: 84210-52050 84210-12040
Location: Top of transmission housing. Connector: 2-pin male. Tool Required: 27mm or 1-1/16" wrench/socket.
