Toyota Matrix Brake Caliper Guide (2003-2014)

Is Your Toyota Matrix Caliper Failing?

A common problem for the 2003-2014 Toyota Matrix, especially in areas with road salt, is a seized or sticking brake caliper. This happens when the caliper piston or the slide pins get stuck due to rust and corrosion. When a caliper sticks, it can keep the brake pads pressed against the rotor even when you're not braking. This leads to a range of problems, from annoying noises to serious safety risks.

Symptoms of a Bad Brake Caliper

• Vehicle Pulling: The car pulls to one side while driving or braking.
• Burning Smell: A strong, acrid smell from the wheels after driving, which is a sign of overheating brakes.
• Uneven Brake Pad Wear: One pad wearing out much faster than the other is a classic sign of a stuck caliper slide pin.
• Brake Drag or Sluggishness: It might feel like the car is down on power or that the handbrake is partially on.
• Abnormal Noises: Grinding or squealing sounds can occur when a stuck caliper forces the pad to stay in contact with the rotor.
• Spongy Brake Pedal: If the caliper's seals fail and leak brake fluid, air can get into the system, making the pedal feel soft.

Known Issues, TSBs, and Recalls

While there are no widespread recalls specifically for brake calipers on the 2003-2014 Toyota Matrix, there are some related service bulletins (TSBs).

• TSB BR004-07: For 2003-2007 models, Toyota issued a bulletin for a front brake squeak noise when driving in reverse at low speeds. The fix involved updated caliper mountings and pad support plates.
• TSB T-SB-0048-13: Some 2009-2013 Matrix vehicles could experience uneven rear brake pad wear or a grinding noise. An updated rear disc brake pad kit was released to address this.
• SSC-90H: A safety recall for some 2009-2010 models involved potential loss of power brake assist in very cold weather, but this was related to the vacuum system, not the caliper itself.

The most common owner-reported issue is calipers seizing, particularly the slide pins or the piston itself, often due to rust.

Choosing the Right Aftermarket Caliper

Since your Matrix is out of warranty, a new aftermarket caliper is a cost-effective choice. They are designed to be direct-fit replacements. Quality can vary, so it's helpful to think of brands in tiers.

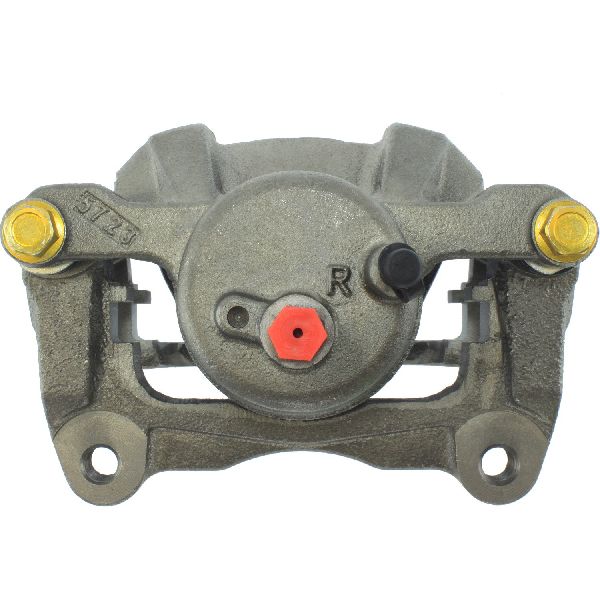

Premium Brands: Powerstop, Raybestos (Element3), Centric (Posi Quiet)

These brands often offer features that improve on the original design. Look for calipers that are fully coated (often with powder coating or a specialized paint) to resist rust and corrosion, which is a major plus for longevity. Powerstop calipers, for example, often come in a signature red powder coat and include all new hardware, seals, and boots. Raybestos and Centric are well-regarded in forums for their quality and reliability. These are a great choice if you live in the rust belt or want the best possible performance and durability.

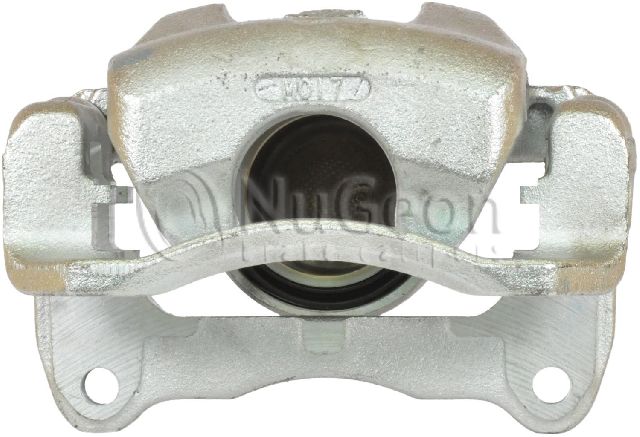

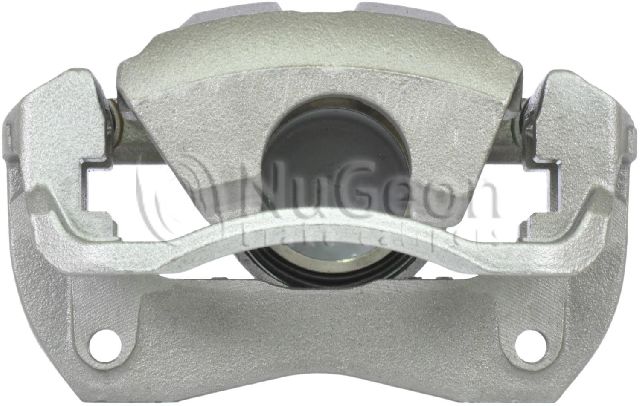

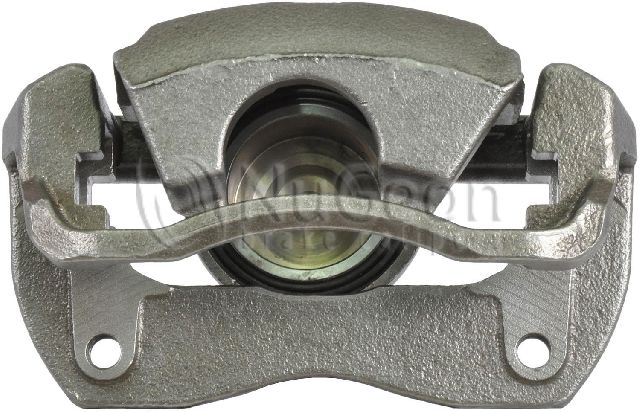

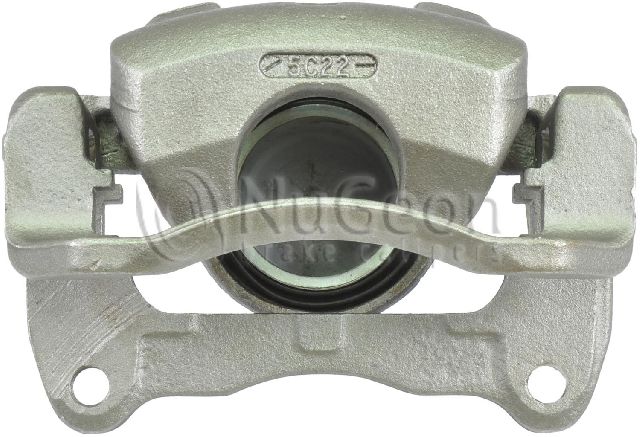

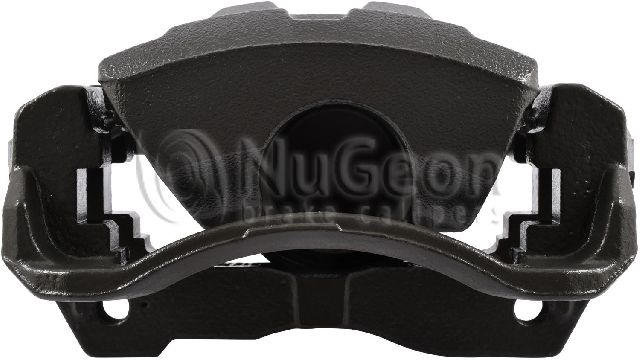

Standard/OE-Quality Brands: Cardone, Dynamic Friction, BBB Industries

These brands provide reliable, direct replacements that meet or exceed original equipment (OE) specifications. Cardone is a huge name in the aftermarket, and while some have mixed experiences with their remanufactured parts, their new calipers are a solid option. They often come with new hardware and brackets included. These are excellent all-around choices for a daily driver, offering a good balance of quality and price.

Economy Brands: Skyward

Economy brands offer a functional replacement at the lowest price point. These calipers will get your car back on the road safely but may not have the advanced coatings or premium hardware of more expensive options. They are a practical solution for budget-conscious repairs or for older vehicles where minimizing cost is the primary goal.

Estimated Costs for Caliper Replacement

Frequently Asked Questions (FAQ)
