Volvo XC90 Windshield Washer Pump Guide (2003-2014)
If your washer fluid isn't spraying, the pump is the most likely reason—here's how to choose the right replacement.
- The 2003-2014 XC90 uses one dual-outlet pump for both front and rear windows; failure is common and replacement is straightforward.
- Symptoms include no spray, a weak spray, or no motor sound when activated. Always check the fuse first.
- DIY replacement is highly feasible, taking under an hour with basic tools by accessing the pump through the passenger-side wheel well.
- High-quality aftermarket pumps are a cost-effective and reliable alternative to expensive OEM parts for this specific component.
Is Your XC90 Washer Pump Failing?
A dead washer pump is more than an annoyance; it's a safety issue. When dirt, bugs, or road salt block your view, you need to be able to clear it instantly. On the 2003-2014 XC90, the windshield and rear window washer pump is a common part to fail, but it's an easy and affordable fix.
Common Failure Symptoms
- No Spray: You pull the lever and hear nothing, and no fluid comes out on the front or rear glass. This is the most common sign of a dead pump.
- Motor Hums, No Fluid: If you can hear the pump motor running but nothing sprays, the pump's filter may be clogged with slime from old fluid, or a hose may be disconnected.
- Weak or Sputtering Spray: A dying pump may lose pressure, resulting in a weak stream that barely reaches the windshield.
- Works in One Direction Only: If the pump sprays on the front but not the rear (or vice-versa), the dual-pump motor is likely failing internally.
- Fluid Leaks: Puddles of washer fluid under the front passenger side of the car can indicate a cracked pump housing or a bad seal.
First, Check the Fuse
Before buying a new pump, it's always a good idea to check the fuse. In the XC90, the washer pump fuse is often fuse #34 in the passenger compartment fuse box. Check your owner's manual to confirm the location for your specific model year. 🎬 Watch: How to find your XC90 fuse box locations If the fuse is good, the pump is the next logical part to check.
Choosing a New Aftermarket Pump
For a common failure part like this, you don't need to pay dealership prices. Aftermarket pumps offer excellent value and are a popular choice among XC90 owners. The original Volvo pump is often cross-referenced with a Ford part, which shows that even the manufacturer sources this part from a high-volume supplier. This makes quality aftermarket versions a reliable and smart choice.
Here’s a look at the available brand tiers:
- Good Tier (Basic Replacement): Brands like Professional Parts Sweden offer a direct-fit replacement at a very low cost. While some of their parts may be sourced from various global manufacturers, they provide a budget-friendly way to get your washers working again.
- Better Tier (Known Aftermarket): Brands such as Vemo position themselves as offering OE-quality alternatives. They are a common choice in the European aftermarket and provide a good balance of price and expected quality.
- Best Tier (Premium Aftermarket): A brand like Trico, famous for its wiper blades, also produces washer pumps. They focus on meeting or exceeding original specifications and are a trusted name in windshield clearing systems.
Pro Tip: Replace the Grommet

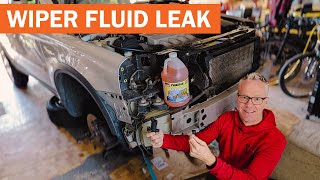

The washer pump pushes into a small rubber seal called a grommet. This grommet also acts as a filter. Over time, it can get clogged or brittle and cause leaks. It's smart to replace this inexpensive seal when you replace the pump to ensure a leak-free installation.
🎬 See this walkthrough for replacing the pump and grommetCost of Replacing an XC90 Washer Pump
Replacing the washer pump is one of the more affordable repairs you can make. The part itself is not expensive, and labor is minimal.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Pump | $18 - $45 |
| New OEM Pump | $60 - $130 |
| Shop Labor | $95 - $195 |
| Total DIY Cost (Aftermarket) | $18 - $55 (with new grommet) |
| Total Shop Cost (Aftermarket) | $113 - $240 |
Frequently Asked Questions (FAQ)
Is the front and rear washer pump the same on the XC90?
Yes. For the 2003-2014 generation, a single pump is used for both the front and rear windows. It's a "dual pump" or "dual-outlet" pump that reverses its motor to change the direction of the fluid. You do not need to buy two separate pumps.
How hard is it to replace the washer pump myself?
This is a great DIY job for beginners. The difficulty is low, and it requires basic hand tools. You'll need to raise the front of the car, remove the passenger-side front wheel, and pull back the plastic fender liner to access the pump at the bottom of the reservoir. The pump itself just pulls out and the new one pushes in. The whole job usually takes less than an hour.
🎬 Watch a mechanic fix this common Volvo washer issueMy headlight washers work, but my windshield washers don't. Is it still the pump?
Yes, most likely. The XC90 has a separate, high-pressure pump for the headlight washers. If the headlights spray but the windshield doesn't, it strongly points to a failure of the main windshield/rear window washer pump.
What is the OEM part number for the XC90 washer pump?
The most common original part number is 30699952. This has been updated by Volvo to part number 31349228. Many aftermarket parts will cross-reference these numbers. An equivalent Ford part number, 1355124, has also been noted by owners.
Helpful Videos
Technical Specifications
OEM Part Numbers: 30699952 31349228 30663139 30699391
Voltage: 12V, Pump Type: Dual Pump
