Engine Crankshaft Position Sensor Guide for 2003-2015 Cadillac Escalade ESV
Having trouble starting your Escalade or dealing with a sudden stall? Your crankshaft position sensor might be the culprit.
- A failing crankshaft sensor is a critical issue that can cause a no-start condition or dangerous engine stalling while driving.
- For this specific part, using an OEM/OEE brand like ACDelco or Delphi is highly recommended for reliability.
- Replacement requires removing the starter motor for access, making it a moderately difficult DIY job.
- A 'crank relearn' procedure with a professional scan tool is necessary after installation to avoid further issues.
Is Your Escalade's Crankshaft Sensor Failing?
A failing crankshaft position sensor can cause problems that range from annoying to leaving you stranded. Because this sensor is so important for engine timing, a bad signal can make your Escalade run poorly or not start at all. Common signs of failure include the engine cranking but not starting, stalling unexpectedly while driving, rough idling, and a noticeable decrease in fuel economy. Often, a failing sensor will trigger the Check Engine Light.

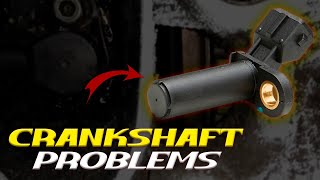

🎬 Watch: 6 signs of a failing crankshaft position sensorCritical Failure Warning
A complete failure of the crankshaft position sensor can cause the engine to shut off while driving. This leads to a loss of power steering and power brakes, creating a serious safety risk. It is highly recommended not to drive if you suspect the sensor has failed completely.
Choosing the Right Aftermarket Sensor
When it comes to critical electronic sensors, quality and reliability are key. For your 2003-2015 Escalade, you have several options, from OEM brands to various aftermarket choices.
- OEM/OEE Brands (ACDelco, Delphi): For GM vehicles, ACDelco is the official parts brand, and Delphi is often the Original Equipment Manufacturer (OEE) that made the part for the factory. For a critical sensor like the crankshaft position sensor, choosing ACDelco or Delphi is the safest bet to ensure perfect fitment and reliable performance without compatibility issues.
- Premium Aftermarket (NGK, Standard Ignition, Holstein): Brands like NGK (also known as NTK for sensors), Standard Motor Products (SMP), and Holstein are well-regarded in the aftermarket. They often produce high-quality parts that meet or exceed OEM specifications and are a solid alternative to the dealer part.
- Value Aftermarket (Dorman, Walker, etc.): Other brands offer a more budget-friendly price point. While some of these parts work fine, forum discussions suggest that for critical sensors, the risk of premature failure or incorrect signals can be higher. Sometimes, these parts may not last as long or could cause subtle performance issues that are hard to diagnose.
Pro Tip: The Crank Relearn Procedure
After replacing the crankshaft position sensor on your Escalade, a "crankshaft variation relearn" procedure is often required. This procedure calibrates the new sensor to the engine's computer. Without it, you may still have a Check Engine Light with a code like P1336, and the engine might not run smoothly. This procedure requires a compatible professional scan tool. If you're doing the replacement yourself, you may need to visit a repair shop to have the relearn procedure completed.
Installation and Cost
Replacing the crankshaft position sensor on the 2003-2015 Escalade ESV is a moderately difficult job.
- Location: The sensor is located on the passenger side of the engine block, above the starter motor.

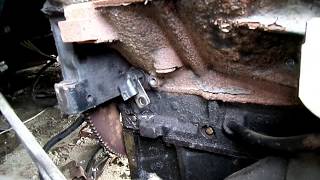

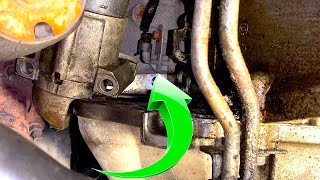

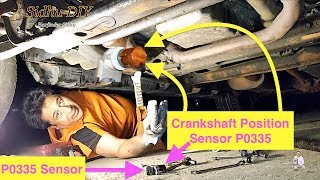

- Process: To access the sensor, the starter motor must be removed or at least unbolted and moved out of the way. This involves disconnecting the battery, raising the vehicle, and working in a tight space. The sensor itself is held in by a single 10mm bolt. 🎬 See this step-by-step sensor replacement walkthrough
| Item | Cost |
|---|---|
| New Aftermarket Part | $27.24 - $96.39 |
| New OEM Part (ACDelco/GM Genuine) | $30 - $100+ |
| Shop Labor | $140 - $250 |
| Total (Shop Repair) | $170 - $350+ |
Frequently Asked Questions
Do I need to perform a crank relearn after replacing the sensor?
Yes, it is highly recommended. Most GM vehicles of this era, including the Escalade, require a crankshaft variation relearn procedure after the sensor is replaced to prevent driveability issues and Check Engine Light codes like P1336. This requires a specific type of scan tool.
🎬 Watch: How to perform the crankshaft variation relearn procedureWhere is the crankshaft position sensor located on my Escalade?
It is on the passenger side of the engine, positioned just above the starter motor. You will need to remove the starter to gain access to it.
Can I drive my Escalade with a bad crankshaft sensor?
It is not recommended. If the sensor is failing, it can cause the engine to stall at any time, which is a major safety hazard. If the sensor has completely failed, the engine will likely not start at all.
Are there any recalls for this part on my Escalade?
My search did not find any specific recalls on the 2003-2015 gasoline V8 Escalade models for the crankshaft position sensor itself. However, recalls for other engine components that could potentially affect the sensor's operation have been issued for different model years. It is always best to check your specific VIN with the NHTSA for any open recalls.
Helpful Videos
Technical Specifications
OEM Part Numbers: 10456607 12562910 213-3520
The crankshaft position sensor on the 2003-2015 Cadillac Escalade is a three-wire Hall-effect sensor. It is located on the passenger side of the engine block, above the starter. It is held in place by a single 10mm bolt.
