Chevrolet Corvette Turn Signal Switch Guide (2003-2015)
Fixing the common turn signal and high beam problems in your C5, C6, or C7 Corvette.
- You MUST verify if you have a C5 (03-04), C6 (05-13), or C7 (14-15) Corvette before ordering, as the parts are different.
- For C6 Corvettes, high beams activating with the turn signal is a classic sign of a failed switch.
- Replacement is an easy DIY job on C5 and C6 models but requires steering wheel removal on C7 models.
- Both ACDelco (OEM) and Standard Ignition are reliable, trusted brands for this part.
Is Your Corvette Turn Signal Switch Failing?
If you're dealing with strange electrical issues in your 2003-2015 Corvette, a failing turn signal switch is a likely suspect. This part is a known failure point, especially on the C6 generation. Symptoms can range from annoying to dangerous. This guide will help you diagnose the problem, choose the right replacement part, and understand what the repair involves for your specific Corvette.
Critical: One Part Does NOT Fit All Years
The 2003-2015 model years span three different Corvette generations (C5, C6, and C7), and they do not use the same turn signal switch. Ordering the wrong part is the most common mistake. You must confirm your vehicle's generation before purchasing.
- 2003-2004 Corvette (C5): Uses a specific C5 switch.
- 2005-2013 Corvette (C6): Uses a different C6 switch. This is the most common model with a well-known failure pattern.
- 2014-2015 Corvette (C7): Uses a completely different switch shared with other GM cars.
Common Symptoms of a Bad Turn Signal Switch
While a complete failure is possible, the switch usually starts acting up in specific ways depending on your Corvette's generation.
- High Beams Turn On With Right Signal (C6 Specific): This is the most common and well-documented failure for 2005-2013 Corvettes. Activating the right turn signal accidentally triggers the high beams due to worn internal contacts.
- Turn Signals Work Intermittently: The signals may not turn on, or you may have to hold the lever in place to keep them flashing. On C5 models, this can also be caused by a faulty hazard light switch.
- Signals Don't Cancel: The switch fails to 'click' off after you complete a turn, leaving the signal flashing.
- Wiper or Cruise Control Issues: Since these functions are integrated, a failing switch can sometimes affect their operation as well.
Known Issues, Recalls, and Bulletins
There are no major safety recalls from GM or NHTSA for turn signal switch failure on the 2003-2015 Corvette. The widespread GM ignition switch recalls from the mid-2010s were for a different part and are not related to this switch. Failures are generally considered a result of normal wear and tear on the internal switch contacts.
Choosing the Right Aftermarket Brand
When replacing the switch, you have a choice between OEM and quality aftermarket parts. For this specific component, both are good options.
| Brand Tier | Our Brands | Honest Assessment |
|---|---|---|
| OEM / Premium Aftermarket | ACDelco | ACDelco is General Motors' own parts brand. Choosing ACDelco ensures you get a part that meets the original factory specifications. Many Corvette owners on forums prefer to stick with ACDelco for electrical parts to ensure compatibility and function, though they can be more expensive. |
| Standard Aftermarket | Standard Ignition (SMP) | Standard Motor Products is a highly respected aftermarket manufacturer known for quality electrical components. Forum users report using Standard parts for years without problems and consider them a reliable, cost-effective alternative to OEM. They are a trusted choice for professional technicians. |
Replacement Cost
The cost to replace your Corvette's turn signal switch depends on your vehicle generation and whether you do the job yourself.
| Part/Service | Estimated Cost | Notes |
|---|---|---|
| New Aftermarket Switch | $92 - $188 | Price for a quality part from ACDelco or Standard Ignition. |
| Shop Labor (C5/C6) | $95 - $150 | The job takes about an hour and does not require removing the airbag or steering wheel. |
| Shop Labor (C7) | $100 - $200 | The job takes about 1.5 hours and requires removing the airbag and steering wheel, making it more complex. |
| Total Professional Repair | $187 - $388 | Varies by model generation and local labor rates. |
DIY Pro Tip (C5 & C6 Models)
Replacing the switch on a C5 or C6 Corvette is a great DIY project. You only need to remove the plastic shrouds around the steering column to access the switch. It's held by a few Torx screws and an electrical connector. You do NOT need to remove the steering wheel or airbag, making it a safe and straightforward job that takes about an hour.

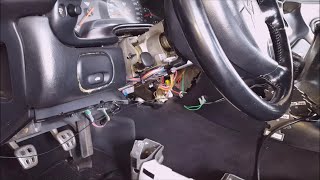

🎬 Watch: Step-by-step multi-function switch replacement walkthroughFrequently Asked Questions
Do I have to replace the whole switch if only the high beams are acting up?
Yes. The turn signal, high beam, and other functions are all part of a single, sealed assembly. The entire unit must be replaced even if only one function has failed.
Why do my turn signals work sometimes but not others?
This is a classic sign of worn electrical contacts inside the switch. For C5 Corvettes (2003-2004), this symptom can also point to a failing hazard switch. Many owners find that cycling the hazard button several times can temporarily clean the contacts and restore turn signal function, confirming the hazard switch is the problem.

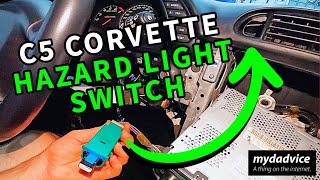

🎬 See how to replace a faulty C5 hazard switchDo I need to disconnect the battery for this repair?
Yes, it is always recommended to disconnect the negative battery terminal before starting any work on your vehicle's electrical system. This prevents accidental shorts and ensures your safety.
Is it hard to replace the turn signal switch on a Corvette?
It depends on the year. For 2003-2013 (C5 and C6) models, it is an easy repair that doesn't require special tools or removing the steering wheel. For 2014-2015 (C7) models, it is much more difficult because the airbag and steering wheel must be removed.
🎬 Watch: How to safely remove the C7 steering wheelHelpful Videos
Technical Specifications
OEM Part Numbers: 19329582 D6254E 10362761 20940314 23377700

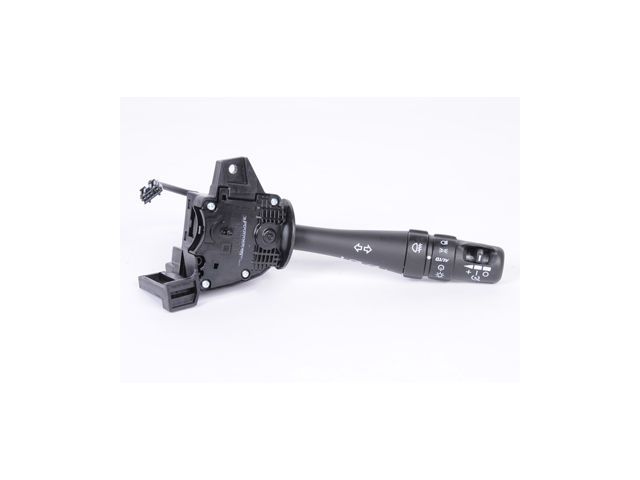

The turn signal switch for the 2003-2015 Corvette is a multi-function assembly mounted to the steering column. It integrates controls for turn signals, headlights (high/low beams), and often windshield wipers and cruise control. The correct part varies significantly between the C5 (2003-2004), C6 (2005-2013), and C7 (2014-2015) generations.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
