A Complete Guide to the BMW Z4 A/C Condenser (2003-2016)
Is your Z4's air conditioning blowing warm? Your A/C condenser might be the problem.
- The most common cause of condenser failure on a Z4 is damage from road debris due to its exposed location.
- Replacement is not a simple DIY job because it requires special equipment to handle the A/C refrigerant.
- For the 2009-2016 (E89) Z4, the condenser often has an integrated drier, making a new aftermarket part a safer choice than a used one.
- Always replace the refrigerant line O-rings when installing a new condenser to prevent leaks.
Signs of a Failing A/C Condenser in a BMW Z4
When an A/C condenser fails, the signs are usually obvious, especially on a hot day. Because it's located at the front of the vehicle, it is highly exposed to damage from road debris. Here’s what to look for:
- Warm Air From Vents: This is the most common symptom. If the condenser is leaking, clogged, or damaged, it cannot cool the refrigerant, and your A/C will only blow lukewarm or ambient air.
- A/C Works on the Highway but Not in Traffic: If your A/C gets cold while driving at speed but warms up when you stop, it can point to a problem. This happens when a partially clogged or damaged condenser isn't getting enough airflow at low speeds to work correctly.

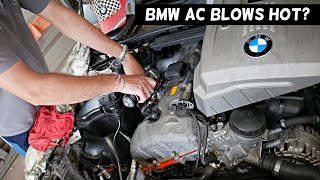

- Visible Leaks or Oily Residue: The refrigerant in your A/C system is mixed with oil. A leak from a puncture or corrosion will often leave a greasy or oily film on the condenser's surface or on the ground beneath it. A mechanic can also use a UV light to spot leaks if a special dye is in the system. 🎬 Watch: A step-by-step diagnosis of a Z4 A/C system failure.
- Engine Running Hotter While Idling: The condenser sits directly in front of the engine's radiator. If the condenser is severely clogged with dirt or its fins are bent, it can block airflow to the radiator. This may cause your engine temperature to rise in stop-and-go traffic.
- Burning Smell: In severe cases, a blocked condenser can cause pressure in the A/C system to build up. This can overwork the A/C compressor, causing it to overheat and create a burning smell. If you notice this, turn off your A/C immediately to prevent further damage.
Choosing the Right Aftermarket Condenser
When replacing the A/C condenser on your Z4, you have a choice between original BMW parts (OEM) and aftermarket brands. For this part, a quality aftermarket unit can offer similar performance to OEM for a fraction of the price. However, quality varies between brands.
Premium Aftermarket Brands ($200 - $335)
These brands are known for high-quality manufacturing and often supply parts directly to automakers. They are a reliable choice for your BMW.
- Denso: A well-respected Japanese company known for its high-quality A/C components and as an OEM supplier for many brands.
- Nissens: A Danish manufacturer with a strong reputation for producing reliable cooling and climate system parts that meet or exceed OE specifications.
- CSF Radiator: Specializes in high-performance cooling solutions. Their products are well-regarded for quality and durability.
- Mahle Behr: A German company that is a major OEM supplier to BMW and other European carmakers. A part from Behr is often identical to the original part from the dealer.
Standard Aftermarket Brands ($105 - $200)
These brands provide a functional replacement at a lower cost. They are a good option for budget-conscious repairs, but long-term durability may not match premium brands.
- Global Parts / One Stop Solutions: These brands offer a wide range of affordable A/C components.
- APDI: This is a budget-focused brand. While the price is low, some forum users have reported issues with fit and quality compared to other aftermarket options.
Generation-Specific Part Note
The 2009-2016 BMW Z4 (E89) often uses a condenser with an integrated receiver/drier. 🎬 See how to replace the condenser and integrated drier assembly. The drier contains a material that absorbs moisture from the refrigerant. If you are considering a used part for an E89, be aware that if it was not sealed immediately after removal, the drier is likely contaminated with moisture and will not function properly, potentially harming your A/C system. For this reason, a new aftermarket condenser is often the safer and more reliable choice.
Known Issues, Recalls, and Service Bulletins
There are no major recalls specifically for the A/C condenser on the 2003-2016 BMW Z4. The most common reason for failure is physical damage from rocks and road debris hitting the front of the car. A Technical Service Bulletin (TSB) was issued for some 2016 models for A/C refrigerant leaks at the O-ring seals on connecting lines, but this was not a condenser defect itself.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Condenser | $106 - $333 |
| New OEM BMW Condenser | $450 - $600+ |
| Shop Labor | $250 - $450 |
| Total (Aftermarket Part) | $356 - $783 |
Frequently Asked Questions (FAQ)
Can I replace the Z4's A/C condenser myself?
This job is recommended for experienced DIYers or professionals. While unbolting the condenser is straightforward, the A/C system must be legally and safely evacuated of refrigerant before starting work and then vacuum-tested and recharged afterward. This requires specialized and expensive A/C service equipment.
🎬 Watch this walkthrough of the condenser removal and replacement process.Do I need to replace any other parts at the same time?
Yes, it is critical to replace the small O-ring seals for the refrigerant lines that connect to the condenser. This ensures a leak-free connection. If the old A/C compressor failed and sent metal debris through the system, the entire system, including the condenser, compressor, and receiver/drier, must be replaced and flushed.
My A/C is blowing warm. Can I just add more refrigerant?
No. The A/C is a sealed system. If it's low on refrigerant, it has a leak. Simply adding more is a temporary fix that doesn't solve the underlying problem. Overcharging the system can also cause damage. The correct procedure is to find and repair the leak, then charge the system to the exact specification.
What is the difference between the E85/E86 and E89 Z4 condensers?
The 2003-2008 (E85/E86) and 2009-2016 (E89) are different generations with different parts. They are not interchangeable. The E89 condenser often includes an integrated receiver/drier, which is a critical component that absorbs moisture.
Helpful Videos
Technical Specifications
OEM Part Numbers: 64539229022 64536917842 64539113678 64506804721
The A/C condenser is a parallel flow aluminum heat exchanger. Part numbers and designs differ between the E85/E86 (2003-2008) and E89 (2009-2016) generations. Some E89 models feature an integrated receiver/drier.
