A Guide to BMW Z4 Direct Ignition Coil Replacement (2003-2016)
Engine misfiring or running rough? Your Z4's ignition coils are a likely and common cause.
- Ignition coil failure is a very common issue on 2003-2016 BMW Z4s, causing misfires, rough idle, and power loss.
- For best results, replace all coils and spark plugs at the same time using a quality OEM-supplier brand like Bosch, Delphi, Bremi, or Hella.
- If your Z4 has an N52 engine, BMW specifically recommends replacing original Bosch coils with Delphi coils for improved reliability.
- This is an easy and cost-effective DIY repair that most owners can complete in under an hour.
Is Your BMW Z4's Engine Running Rough?
A sudden engine shudder, hesitation when you accelerate, or a new check engine light on the dash are common experiences for BMW Z4 owners. More often than not, the culprit is a failing direct ignition coil. These parts are a known weak point and a regular maintenance item on many BMW engines from this era, including the M54, N52, and N54 engines found across the 2003-2016 Z4 model years. When a coil fails, the cylinder it's responsible for can no longer fire properly, leading to a host of noticeable problems.
Symptoms of a Bad Ignition Coil
A bad ignition coil will make its presence known. If you experience any of the following, a faulty coil is a strong possibility:
🎬 Watch: BMW misfire causes, symptoms, and solutions explained.- Engine Misfires and Rough Idle: This is the most classic symptom. The engine will shake, sputter, or feel unbalanced, especially when stopped at a light or during acceleration.
- Check Engine Light: A misfire will almost always trigger the check engine light. A code scanner will likely show codes P0300 (random misfire) or P0301 through P0306, which point to a specific cylinder (e.g., P0304 indicates a misfire in cylinder 4).
- Loss of Power: Your Z4 will feel sluggish and slow to accelerate. With one less cylinder providing power, the engine struggles to perform as it should.
- Worse Gas Mileage: When a cylinder misfires, unburned fuel may be dumped into the exhaust, which can damage expensive catalytic converters over time. Your car's computer also tries to compensate, leading to increased fuel consumption.
- Difficulty Starting: In cases where multiple coils are weak or one has failed completely, the engine may take longer to start or fail to start at all.
Check for Oil Leaks!
When you pull the old ignition coil out, check for oil in the spark plug tube. Oil presence is a clear sign of a leaking valve cover gasket. This oil will damage the new ignition coil and cause it to fail prematurely. The gasket must be replaced to solve the root problem.
🎬 See how to fix oil in your spark plug holes.Choosing the Right Aftermarket Ignition Coil
You don't need to buy a Genuine BMW-branded part to restore your engine's performance. BMW itself doesn't manufacture coils; they source them from OEM (Original Equipment Manufacturer) suppliers. Buying a coil from one of these suppliers gives you the same quality without the dealership price tag. For the Z4, primary OEM suppliers have included Bosch, Delphi, and Eldor.
Aftermarket Brand Quality Tiers
When shopping for aftermarket coils, it's helpful to think in terms of quality tiers:

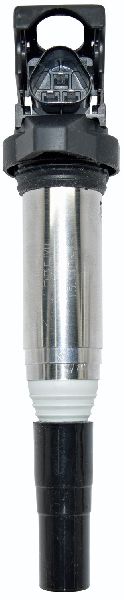

- Tier 1: OEM Suppliers (Recommended): Brands like Bosch, Delphi, Bremi, and Hella are excellent choices. They have a long history of supplying parts to BMW and are trusted by enthusiasts and mechanics. Forum discussions frequently recommend Bosch and Delphi as reliable, cost-effective replacements.

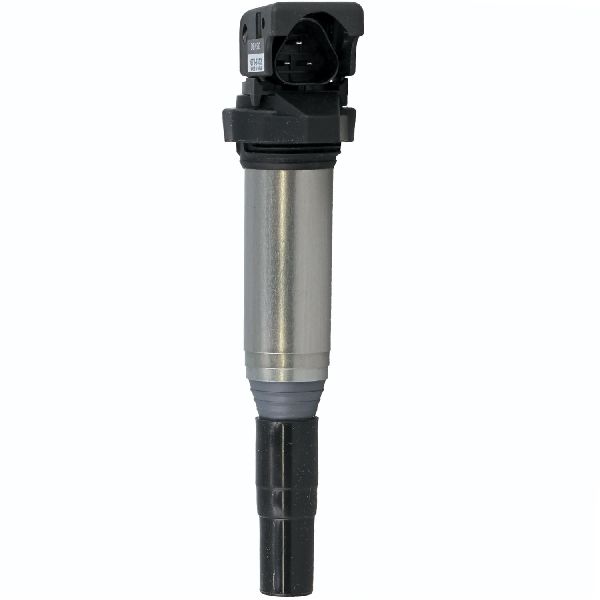

- Tier 2: Reputable Aftermarket: Denso and NGK are top-tier Japanese brands known for exceptional quality, and while less common as BMW OEM, they are a solid choice if available for your specific model.

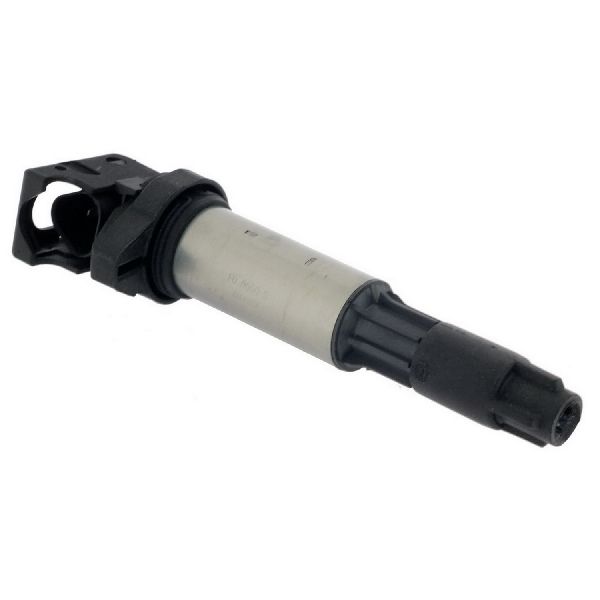

- Tier 3: Value Brands: Brands like Vemo, Facet, Prenco, and other lesser-known names fall into this category. While they offer a lower price, their long-term durability and performance may not match the OEM-supplier brands.
Pro Tip: Replace Coils and Plugs as a Set
It is highly recommended to replace all ignition coils at the same time. They have all been exposed to the same heat and wear for the same amount of time, so when one fails, others are likely to follow. Also, do not mix different brands of coils. For best results and to prevent future headaches, replace all coils and all spark plugs simultaneously.
Vehicle-Specific Issues & Bulletins
For Z4 models equipped with the N51 or N52 engine (common from 2006-2011), BMW issued a Technical Service Bulletin (TSB) regarding failures of original-equipment Bosch coils. The bulletin (SI B12 18 14) recommends replacing all Bosch coils with Delphi-branded coils during the first service visit for a coil failure, as the Delphi design was found to be more robust for these engines.
Cost of Replacing BMW Z4 Ignition Coils
| Part & Labor | Estimated Cost |
|---|---|
| Single Aftermarket Ignition Coil | $37 - $84 |
| Single Genuine BMW OEM Ignition Coil | $74 - $100 |
| Shop Labor (Diagnosis + 1 Coil) | $105 - $154 |
| Total Professional Replacement (1 Coil) | $249 - $396 |
| DIY Replacement (Set of 6 Aftermarket Coils) | $220 - $500 |
Frequently Asked Questions (FAQ)
Is it hard to replace the ignition coils myself?
No, this is one of the easiest DIY jobs on a BMW Z4. The coils are located directly on top of the engine under a plastic cover. The job requires only basic hand tools, involves unplugging a connector and pulling the old coil straight up. Most owners can replace all six coils in under an hour.
🎬 Watch this step-by-step ignition coil replacement walkthrough.Should I replace just the one bad coil?
While you can replace only the failed coil to get the car running, it is strongly recommended to replace all of them at once. Ignition coils are wear items, and if one has failed due to age and heat cycles, the others are likely near the end of their service life. Replacing them all at once prevents you from having to repeat the job in a few months when the next one fails.
What's the difference between an ignition coil and a spark plug?
The ignition coil creates the high-voltage electricity, and the spark plug uses that electricity to create the physical spark inside the cylinder. They work together as a team. Worn spark plugs can put extra strain on the ignition coils, causing them to fail sooner, which is why it's best practice to replace them together.
My Z4 has an N52 engine. Should I avoid Bosch coils?
Based on BMW's own service bulletin (SI B12 18 14), if you have an N52 engine and are replacing coils, it is advisable to use Delphi coils. The bulletin was issued to address higher-than-normal failure rates of Bosch coils on that specific engine family, recommending a switch to Delphi for better long-term reliability.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12138616153 12137594937 12137571643 12137562744 12131712219

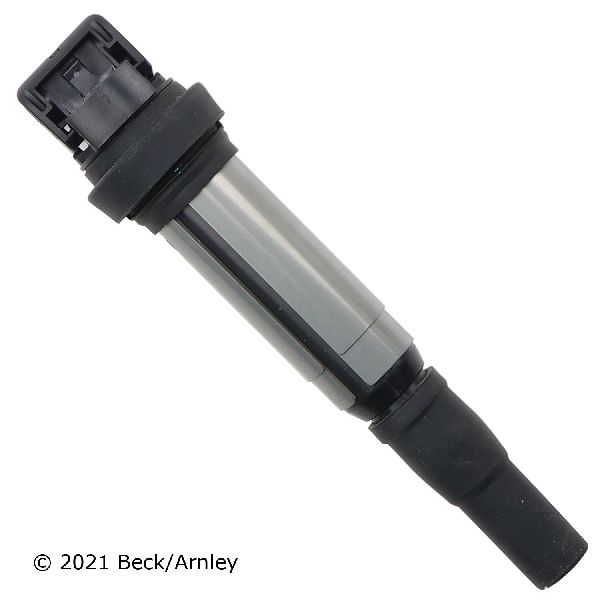

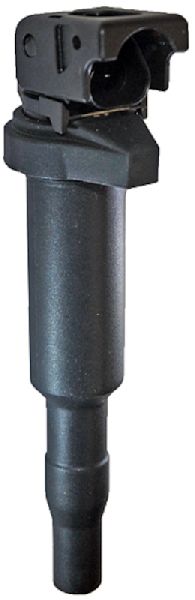

Coil-on-plug design, 3-pin blade-type connector. Specific part number varies by engine (M54, N52, N54, N20). Always verify fitment with your vehicle's specific engine type.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
