Honda Pilot A/C Expansion Valve Guide (2003-2016)
Is your Pilot's A/C blowing warm? The expansion valve could be the culprit; here's what you need to know before you buy a new one.
- A common symptom in Pilots is warm air from the front vents while the rear A/C still blows cold, pointing to a clogged front expansion valve.
- Replacement is a complex job because the valve is behind the dashboard; professional installation is recommended.
- Always replace the receiver/drier at the same time to protect your A/C system and ensure longevity.
- Aftermarket brands like Denso (OEM quality) and Four Seasons offer reliable, cost-effective alternatives to the dealer part.
Is Your Pilot's A/C Not as Cold as It Used to Be?
If your 2003-2016 Honda Pilot's air conditioning isn't performing well, a faulty A/C expansion valve is a common suspect. This small part plays a huge role in how cold the air from your vents gets. When it fails, it can lead to a range of frustrating A/C problems, from warm air to a system that doesn't work at all.
Common Symptoms of a Failing Expansion Valve
A bad expansion valve can show several signs. Paying attention to them can help you diagnose the problem correctly.
🎬 Watch this video to learn more about expansion valve symptoms.- Warm or Inconsistent Air: The most common symptom is warm air blowing from the vents, even when the A/C is on full blast. You might also notice the temperature fluctuating between cool and warm.
- Frost on Vents or A/C Lines: If the valve is stuck open, it can allow too much refrigerant into the evaporator, causing it to get too cold and form ice. This can sometimes be seen as frost coming from the vents.
- A/C Compressor Always Running: A valve stuck in the wrong position can trick the system, causing the A/C compressor to run constantly, which can lead to further damage.
- Front A/C is Warm, Rear A/C is Cold: On Pilots with rear air conditioning, a clogged front expansion valve can cause the front vents to blow warm while the rear vents still blow cold. This happens because the clogged valve restricts refrigerant flow to the front evaporator. 🎬 See how to fix front-only cooling issues on a Pilot.
Don't Mistake It for Low Refrigerant
Many symptoms of a bad expansion valve, like warm air, are similar to those of a simple refrigerant leak. A key difference can be uneven cooling, where one side of the dash is colder than the other. It's often best to have a professional diagnose the system with pressure gauges to confirm the expansion valve is the true cause before replacing parts.
Choosing the Right Aftermarket Expansion Valve
When replacing the A/C expansion valve on your Pilot, you don't have to buy the expensive OEM part. Quality aftermarket brands offer reliable performance at a better price. Here’s a look at the brands available.
Brand Quality Tiers
- Tier 1 (OEM Supplier Quality): Denso
Denso is a well-respected brand and an original equipment manufacturer (OEM) for many Honda parts. Choosing a Denso expansion valve is the closest you can get to the original part's quality and fit without the dealership price tag. They are known for durability and precise performance. - Tier 2 (Trusted Aftermarket): Four Seasons & Global Parts (GPD)

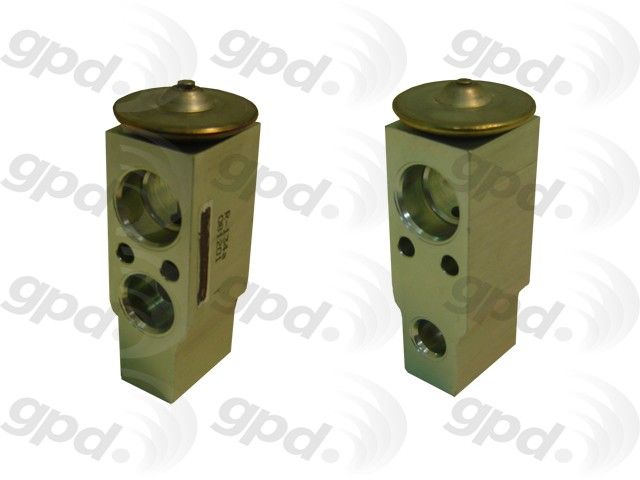

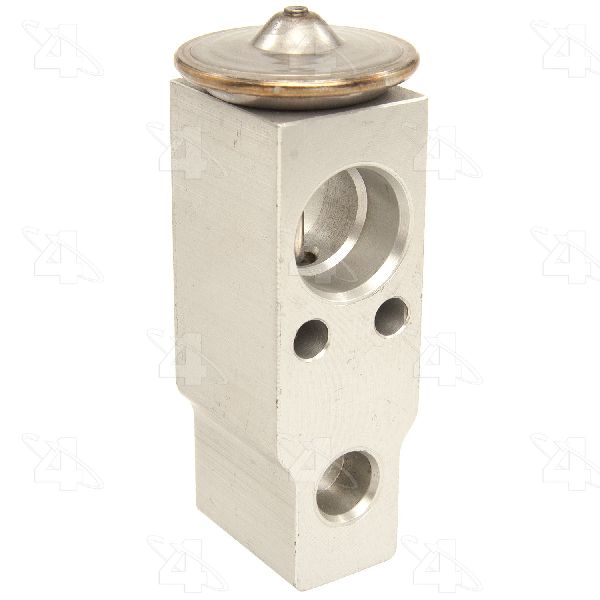

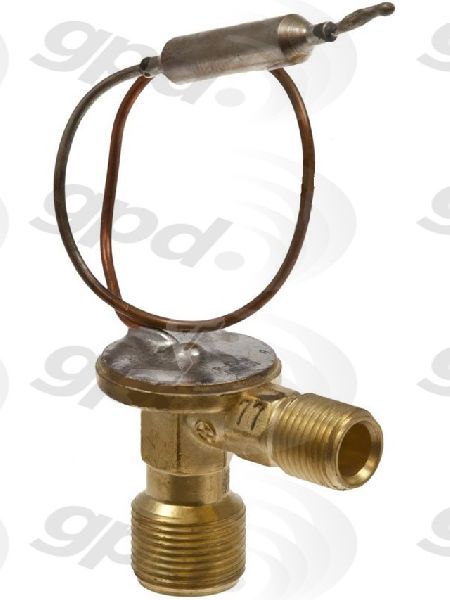

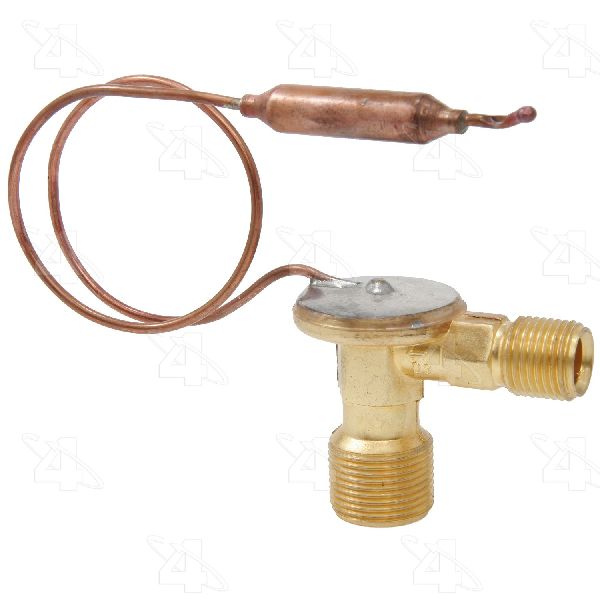

Four Seasons is a huge name in the aftermarket A/C world, known for making parts that fit well and are affordable. GPD (Global Parts Distributors) is another strong choice, often praised by mechanics for good fitment and offering complete kits. Both brands are a solid choice for a reliable repair that balances cost and quality.
Pro Tip: Replace the Receiver/Drier Too
Whenever you open the A/C system to replace a part like the expansion valve, it is highly recommended to also replace the receiver/drier (or accumulator). This component removes moisture from the refrigerant, and a new one is cheap insurance against future problems and is often required to validate the warranty on a new compressor.
Honda Pilot Expansion Valve Replacement Cost
The cost to replace the expansion valve can vary. The part itself is inexpensive, but the labor can be significant because the valve is located behind the dashboard.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket A/C Expansion Valve | $24 - $55 |
| Shop Labor & Refrigerant Recharge | $225 - $330 |
| Total Estimated Cost | $250 - $385 |
Frequently Asked Questions
Where is the A/C expansion valve located on a 2003-2016 Honda Pilot?
The front A/C expansion valve is located on the firewall, behind the glove box. Accessing it requires removing the glove box and several surrounding panels. It is a labor-intensive job.
🎬 Watch a guide on replacing the valve without removing the dash.Can I replace the Honda Pilot expansion valve myself?
This is an advanced DIY job. While some experienced home mechanics have completed the replacement, it requires significant disassembly of the dashboard. More importantly, it requires specialized equipment to safely recover the old refrigerant and then vacuum and recharge the system. For most owners, this job is best left to a professional mechanic.
Are there any recalls for the A/C expansion valve on the Honda Pilot?
No, there are no specific recalls for the A/C expansion valve on 2003-2016 Honda Pilots. Searches on the NHTSA database did not show any recalls for this specific component. There is a Technical Service Bulletin (TSB) for later model Pilots (2019-2021) related to a leaking A/C compressor shaft seal, which also causes the A/C to blow warm air, but this does not directly involve the expansion valve.
What happens if I don't replace a bad expansion valve?
Continuing to run your A/C with a faulty expansion valve can cause more damage. A valve that is stuck can strain the A/C compressor, potentially leading to a much more expensive failure. At best, you will have an A/C system that doesn't cool the cabin effectively.
Helpful Videos
Technical Specifications
OEM Part Numbers: 80221-S3V-A51 80220-S3V-A51 80221-STX-A01 80220-STX-A01 80221-STX-A41
Block Type Expansion Valve. Located at the firewall, behind the glove compartment. Requires complete evacuation and recharge of the A/C system for replacement.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
