A/C Compressor Guide for the 2003-2016 Volvo XC70
Is your Volvo's A/C blowing warm? Here's what you need to know before replacing the compressor.
- Before buying a new compressor, always check the A/C clutch air gap first; it's a very common and simple fix for intermittent A/C on these Volvos.
- If replacing the compressor, you must also replace the receiver/drier and expansion valve to ensure system longevity and warranty coverage.
- Choose high-quality aftermarket brands like Denso, Valeo, or Mahle for the best reliability, as they are often the original equipment suppliers.
- A/C system repair requires special tools for refrigerant recovery and recharging; this job is best left to a qualified professional.
Is Your Volvo's A/C Failing? Don't Assume It's the Compressor Yet
When the air from your vents isn't cold, it's easy to suspect a major failure. While the A/C compressor can fail, on the 2003-2016 Volvo XC70, there's a very common issue that is much simpler to fix. Many owners replace the entire compressor when they don't need to.
First, Check the Compressor Clutch Gap

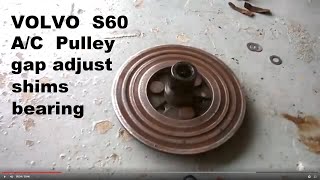

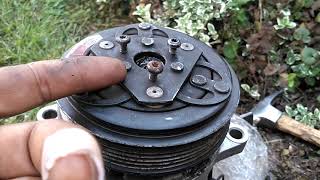

The most frequent A/C problem on these Volvos is not the compressor itself, but the clutch that engages it. Over time, the air gap between the clutch plate and the pulley widens. When the gap becomes too large, the electromagnet isn't strong enough to pull the clutch in and engage the compressor, especially when the engine bay is hot. This results in A/C that works intermittently or not at all when you're stopped at a light. Before buying a new compressor, have a mechanic measure this air gap. Often, 🎬 Watch: See how the clutch gap looks out of the vehicle. simply removing a small metal washer (a shim) can fix the problem for little to no cost in parts.
Symptoms of a Failing A/C Compressor
If the clutch gap is within specification, you may have a genuine compressor issue. Look for these signs:
- Warm Air: The most obvious symptom is air from the vents that is not cold or is only slightly cool.
- Loud Noises: Grinding or shrieking sounds when you turn on the A/C can indicate failing internal bearings in the compressor. 🎬 See how to check for grinding noises from your compressor.
- Intermittent Cooling: The A/C works sometimes and then stops, often related to engine speed or temperature.
- Visible Leaks: You might see oily residue on the body of the compressor, which is a sign of leaking refrigerant oil.
Choosing the Right Aftermarket Compressor
If you've confirmed the compressor needs replacement, you have several options. The original compressors for these Volvos were often made by Denso or Valeo. Choosing one of these brands in an aftermarket box is the closest you can get to original equipment quality.
Always Replace Other Components
When you replace the A/C compressor, you must also replace the receiver/drier (or accumulator) and the expansion valve. Failure to do so will likely void the warranty on your new compressor. If the old compressor failed internally, it may have sent metal shavings through the system. In this case, the entire system, including the condenser and evaporator, must be flushed clean before installing the new parts.
Brand Quality Tiers
- OEM-Quality Tier (Best): Brands like Denso, Valeo, and Mahle are often the original equipment manufacturers. They offer excellent reliability and fit, but come at a higher price. These are the best choice if you plan to keep your XC70 for a long time.

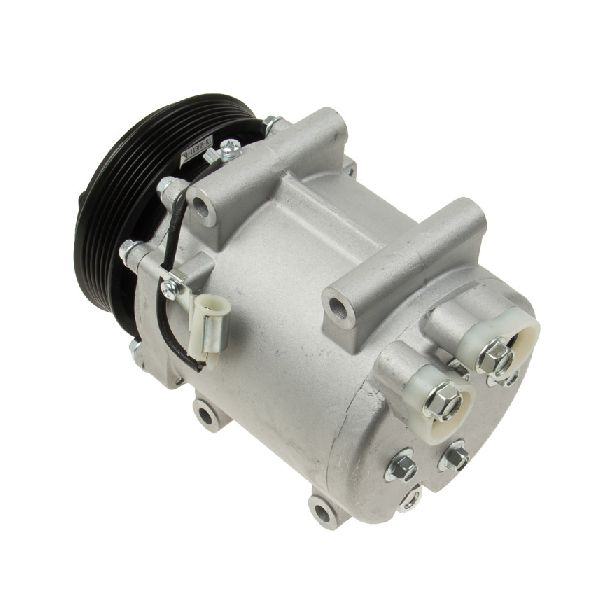

- High-Quality Aftermarket (Good): Nissens is a well-regarded brand known for producing quality cooling and climate system components that meet or exceed OEM standards. They offer a good balance of quality and price.

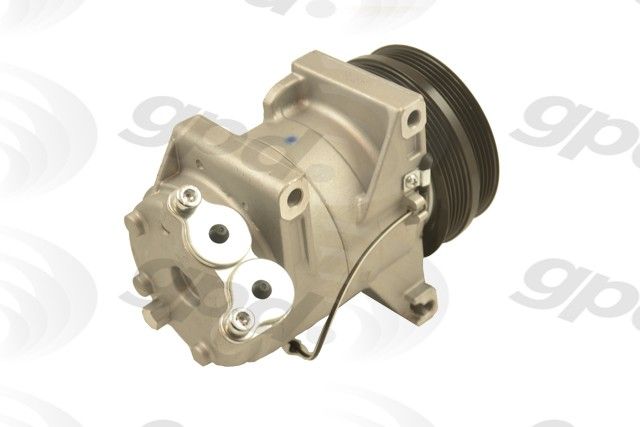

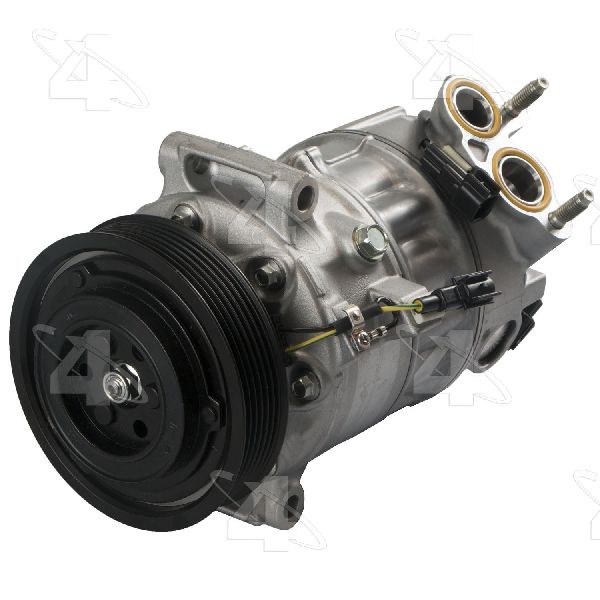

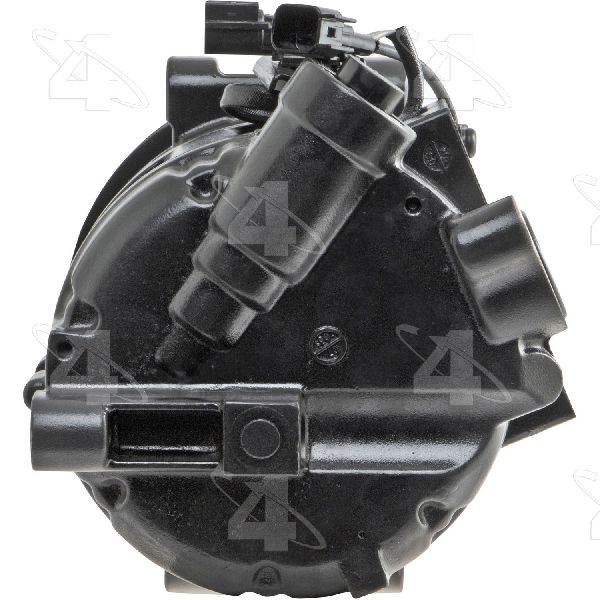

- Standard/Economy Tier (Budget): Brands like Four Seasons and Global Parts (GPD) are popular budget-friendly options. While they can be a good value for an immediate fix, their longevity can sometimes be mixed compared to premium brands.
Cost of Replacing Your XC70 A/C Compressor
The cost can vary significantly based on the parts you choose and your local labor rates. A professional must evacuate the old refrigerant and recharge the system with the correct amount after the repair, which adds to the cost.
| Component | Estimated Cost |
|---|---|
| New Aftermarket Compressor | $262 - $855 |
| New OEM Compressor | $821 - $1350+ |
| Shop Labor & System Recharge | $193 - $700 |
| Total Professional Replacement | $1,014 - $1,750+ |
Frequently Asked Questions
Do I have to replace the whole compressor or just the clutch?
While some clutches can be replaced separately, it is often difficult and not cost-effective. If the clutch bearing has failed, it's generally recommended to replace the entire compressor assembly, which comes with a new clutch already installed.
Were there any recalls for the A/C compressor on the 2003-2016 XC70?
No, searches of the National Highway Traffic Safety Administration (NHTSA) database show no recalls specifically for the A/C compressor on this vehicle. There was a recall for some 2016-2017 models related to a leaking A/C drain hose that could cause water to enter the cabin, but this is not a compressor failure.
What are TSBs and are there any for this A/C system?
A Technical Service Bulletin (TSB) is a notice from the manufacturer to its dealers about a known problem and a recommended fix. While no TSBs point to a specific compressor defect, several exist for diagnosing poor A/C performance, checking for stuck control valves, and ensuring proper system pressures.
Can I replace the A/C compressor myself?

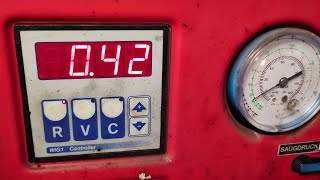

This is a job for an advanced DIYer. 🎬 Watch: A complete walkthrough of the compressor replacement process. While the physical replacement is possible, the A/C system is under high pressure and contains refrigerant that is harmful to the environment. It is illegal to vent this refrigerant into the atmosphere. The job requires specialized equipment to safely recover the old refrigerant and then properly vacuum and recharge the system with a precise amount of new refrigerant and oil. For most people, this job is best left to a professional shop.
Helpful Videos
Technical Specifications
OEM Part Numbers: 36001066 8602621 36051067 36011354 36011277 36050841 36013037
Compressor type varies by year and engine (e.g., DKS15CH, DKS17CH). All use a serpentine belt with a clutched pulley. The system uses R134a refrigerant. Always verify the exact part number for your specific vehicle year and engine configuration before ordering.
