A Comprehensive Guide to the Buick Regal HVAC Pressure Transducer (2003-2017)
If your Regal's A/C is blowing warm, this simple sensor could be the reason why.
- Symptoms of a bad transducer (warm A/C, intermittent cooling) are identical to low refrigerant; it's wise to check for leaks first.
- Replacement is very DIY-friendly due to a Schrader valve that prevents refrigerant loss, requiring only basic hand tools.
- One common OEM part number (13587668) fits both the 2003-2004 and 2011-2017 Regal generations.
- There are no known recalls or TSBs for this specific part on the Buick Regal.
Understanding Your Buick Regal Model Years
This guide covers two different generations of the Buick Regal sold in North America: the 2003-2004 models and the 2011-2017 models. It is important to note that Buick did not produce the Regal for the North American market between 2005 and 2010. Fortunately, the same HVAC pressure transducer is often used across both of these generations, simplifying the process of finding the right part.
Symptoms of a Failing HVAC Pressure Transducer
When the pressure transducer fails, it can no longer send accurate signals to the car's computer. This can cause a range of A/C problems that often mimic other issues, like low refrigerant. Here are the most common signs of a bad transducer in your Regal:
- Warm Air from Vents: The most common symptom is the A/C system blowing air that is warm or not as cold as it should be.
- Intermittent Cooling: The A/C may cycle on and off rapidly, causing the air temperature to fluctuate between cold and warm. You might hear a distinct clicking sound from the engine bay as the compressor clutch engages and disengages more than usual.
- A/C Compressor Won't Turn On: The transducer may send a false signal indicating the pressure is dangerously low or high, preventing the A/C compressor from engaging at all.

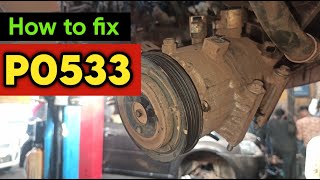

- Check Engine Light: A failing transducer can trigger a Check Engine Light. Common trouble codes include P0532 (A/C Refrigerant Pressure Sensor Circuit Low) and P0533 (A/C Refrigerant Pressure Sensor Circuit High). 🎬 Watch: Understanding P0533 and A/C pressure sensor circuit codes
Is It the Transducer or Just Low Refrigerant?
Many symptoms of a bad transducer are identical to those of a system that is simply low on refrigerant due to a leak. A faulty transducer can cause the problem, but it can also be correctly reporting a real pressure issue. Before replacing the sensor, it's a good idea to have the A/C system's pressure checked to rule out a refrigerant leak.
🎬 See how to test your A/C pressure switchChoosing the Right Aftermarket Part
When shopping for a new HVAC pressure transducer for your Regal, you'll find OEM and aftermarket options. For a simple electronic sensor like this, a quality aftermarket part often provides the best value.
- OEM (ACDelco): As the original equipment manufacturer for GM, ACDelco parts are the benchmark for fit, form, and function. They are the most expensive option but guarantee compatibility.
- Standard Aftermarket (Four Seasons, Global Parts): Brands like Four Seasons and Global Parts Distributors (GPD) are well-known in the aftermarket. They produce parts that meet or exceed OEM specifications at a more affordable price. For a non-moving part like a pressure transducer, these brands offer a reliable and cost-effective repair solution.
Cost Comparison for Buick Regal HVAC Pressure Transducer
| Part Type | Estimated Cost |
|---|---|
| New OEM (ACDelco) | $55 - $105 |
| New Aftermarket (Four Seasons, Global Parts) | $40.19 - $49.98 |
| Shop Labor | $75 - $150 |
Cost estimates are approximate and can vary based on location and supplier. The labor estimate includes potential diagnostic time.
DIY Installation is Possible
Replacing the HVAC pressure transducer is a beginner-friendly job. The sensor is located on one of the metal A/C lines in the engine bay and simply screws on. GM systems use a Schrader valve under the sensor, which acts like the valve on a tire. This means you can unscrew the old sensor and install the new one without losing your system's refrigerant, making the job quick and easy with just a basic wrench. No special A/C equipment is needed.

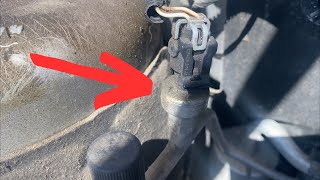

🎬 Watch: GM air conditioning pressure switch replacement walkthroughFrequently Asked Questions (FAQ)
Are there any recalls for the Buick Regal A/C pressure transducer?
No, there are no specific recalls issued by the NHTSA for the HVAC pressure transducer on any 2003-2004 or 2011-2017 Buick Regal models.
Do I need to empty the A/C system to replace this sensor?
No. The A/C system on your Regal is equipped with a Schrader valve at the sensor port. This valve seals the system when the sensor is removed, so you will not lose a significant amount of refrigerant.
Will a bad pressure transducer always cause a Check Engine Light?
Not always. The sensor can fail in a way that causes intermittent A/C operation without triggering a fault code immediately. However, if the failure is persistent, it will likely trigger codes like P0532 or P0533.
Is it better to buy an OEM or aftermarket transducer?
While the OEM ACDelco part is a guaranteed fit, a quality aftermarket brand like Four Seasons or Global Parts offers a reliable alternative for a lower price. Since this is a simple, non-mechanical sensor, many owners find aftermarket options to be a smart choice for this specific repair.
Helpful Videos
Technical Specifications
OEM Part Numbers: 13587668 22634172 13502759 22678731
Connector Shape: Round, Number of Terminals: 3
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
