Volkswagen Passat Brake Light Switch Guide for 2003-2017 Models
Understanding why a failing brake light switch in your Passat can trigger more than just brake light problems.
- A faulty brake light switch is a known issue, with a recall for 2003-2005 models.
- Symptoms often include an EPC warning light, not just brake light failure.
- Replacement is simple, inexpensive, and a good DIY task for most owners.
- Verify the exact part for your year/VIN, as designs changed between Passat generations.
Is Your Passat's Brake Light Switch Failing?
A faulty brake light switch on a 2003-2017 VW Passat is a common issue. It can create confusing and sometimes alarming symptoms that go beyond just the brake lights. Because the switch communicates with multiple vehicle systems, its failure can trigger several dashboard warning lights at once, making you think the problem is more serious than it is.
Known Issue: Brake Light Switch Recall
Volkswagen issued a safety recall (NHTSA Campaign ID #07V063000, VW Code N4) for 2003-2005 Passat models due to a brake light switch that could malfunction. The defect could cause the brake lights to stop working entirely or to stay on continuously, increasing the risk of a crash. The fix was to replace the original switch with a newly designed part. Even if your Passat is outside this year range, this history shows that switch failure is a known weak point for the brand.
Common Symptoms of a Bad Brake Light Switch
Look for these signs if you suspect your switch is going bad:
- Brake Lights Don't Work or Stay On: This is the most obvious symptom. The lights may fail intermittently at first. In some cases, they can get stuck on, draining your battery.
- EPC Warning Light: The Electronic Power Control (EPC) light illuminating on your dash is a classic VW symptom of a bad brake light switch. 🎬 Watch: Understanding why the EPC light appears on your Volkswagen.
- ABS and ESP/Traction Control Lights: Since the switch sends data to the braking system, you may see these warning lights as well.
- Cruise Control Won't Engage: The system sees a constant brake signal (or no signal) and will prevent cruise control from activating.
- Stuck in Park: Automatic transmission vehicles require a brake signal to allow the shifter to move out of Park.
Choosing the Right Aftermarket Brake Light Switch
The original brake light switches on some Passat models were known to be faulty, leading to a recall. This means a quality aftermarket part can be a reliable and cost-effective alternative to a new OEM part from the dealer. Here’s a look at the available brands:
- Premium Aftermarket (Standard Ignition, Vemo): Brands like Standard Motor Products (SMP) and Vemo are well-regarded in the industry for producing parts that meet or exceed original equipment (OE) specifications. They are often trusted by professional mechanics for their reliability and proper fit.
- Quality Aftermarket (Rostra Powertrain): Rostra is an ISO-certified manufacturer that even supplies some parts directly to automakers. While they are more known for transmission components, their switches are built to high standards.
- Standard/Economy (Facet): Facet is an Italian brand that offers a budget-friendly option. While many of their parts work without issue, some forum users have reported receiving parts that did not work correctly out of the box, so quality can be inconsistent.
Pro Tip: Given the low cost of this part and the safety-critical function, choosing a premium or quality aftermarket brand is a smart investment for peace of mind.
| Part Type | Estimated Cost | Notes |
|---|---|---|
| New OEM (Dealer) | $40 - $70 | Updated design from the original recalled part. |
| New Aftermarket | $28 - $60 | Your price range. Quality varies by brand. |
| Shop Labor | $50 - $90 | Typically takes less than an hour. |
Frequently Asked Questions (FAQ)
Is it difficult to replace a Passat brake light switch myself?
No, this is a very DIY-friendly job. The switch is located above the brake pedal and is typically held in place by a clip or a simple twist-lock mechanism. You will need to remove the lower dash trim panel for access, but the replacement itself usually takes less than 30 minutes with basic tools.

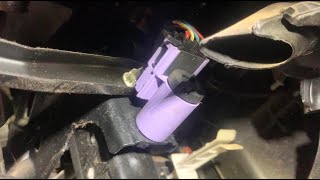

🎬 See this step-by-step walkthrough for replacing the switch yourself.Do I need to adjust the new brake light switch?
Most modern switches are self-adjusting. During installation, you typically press the brake pedal down, insert the new switch until it's seated, and then release the pedal. The plunger on the switch will set itself to the correct depth. Always follow the instructions included with your specific part.
Why did the EPC light come on but my brake lights still work?
The brake light switch has multiple internal contacts that send signals to different computers in the car. It's possible for the contact that controls the EPC and cruise control signal to fail, while the contact for the brake lights continues to work for a while. An EPC light is an early warning that the switch is failing and should be replaced.
How do I make sure I'm ordering the right switch for my Passat?
The 2003-2017 year range covers several Passat generations (B5.5, B6, B7/NMS). There are different switch designs, including 2-pin and 4-pin versions. Some mount on the pedal bracket, while some later models may have a switch on the master cylinder. It is essential to use your vehicle's VIN or visually inspect the old part to match it with the new one before ordering.
🎬 Learn how to professionally diagnose a faulty switch using scan tools.Helpful Videos
Technical Specifications
OEM Part Numbers: 1C0945511A 1K2945511 1K2945511RDW
Typically a 4-pin, plunger-style switch located on the brake pedal bracket. Design and pin count can vary by specific model year and generation.
