Ford Expedition Door Lock Actuator Guide (2003-2019)
Having trouble with your Ford Expedition's power door locks? Here’s what you need to know before you buy a new actuator.
- A buzzing or grinding noise from the door is the most common first sign of a failing actuator.
- For 2018-2019 models, check for TSB 20-2421, as your issue might be related to water intrusion in the latch cables.
- Aftermarket brands like Dorman and Standard Ignition offer a good balance of quality and value for this repair.
- Replacement is a manageable DIY job requiring basic tools and about two hours, but involves removing the entire inner door panel.
Is Your Expedition's Door Lock Acting Up?
A failing door lock actuator is a common issue on many vehicles, including the 2003-2019 Ford Expedition. The symptoms usually start small and get worse over time. You might first notice a strange noise, or one door that doesn't always lock with the others. Eventually, it can fail completely, leaving a door unlocked or, in some cases, stuck in the locked position.
Common Failure Symptoms
- Unusual Noises: A buzzing, grinding, or clicking sound from inside the door when you use the power locks is often the first sign. This means the small motor or plastic gears inside the actuator are starting to wear out.
- Erratic Operation: The door lock may work sometimes but not others. It might lock but not unlock, or unlock but not lock. In some cases, the locks might cycle rapidly on their own. 🎬 Watch how to diagnose and fix common driver door problems.
- Total Failure: The power lock for one or more doors stops working entirely. You have to use the physical key or manually pull the lock tab to secure the door.
- Stuck Lock: In some instances, the actuator can fail in a way that jams the lock mechanism, making it difficult or impossible to open the door even with the manual lock tab.
Known Issues and Bulletins
For 2018-2019 Expedition models built on or before June 7, 2020, Ford issued Technical Service Bulletin (TSB) 20-2421. This TSB addresses difficulty latching, unlatching, locking, or unlocking doors, which may be caused by water getting into the door handle cables. The fix involves replacing the entire door latch assembly. A similar issue was noted for 2018-2021 models in freezing temperatures under SSM 50571. While not a recall for the actuator itself, it's a related and documented problem for these model years.
Choosing the Right Aftermarket Actuator
When your actuator fails, you have a choice between OEM (Original Equipment Manufacturer) parts from Ford and aftermarket options. For a vehicle like the Expedition, aftermarket parts offer significant savings and can be a reliable choice if you select a good brand.
Brand Quality Tiers

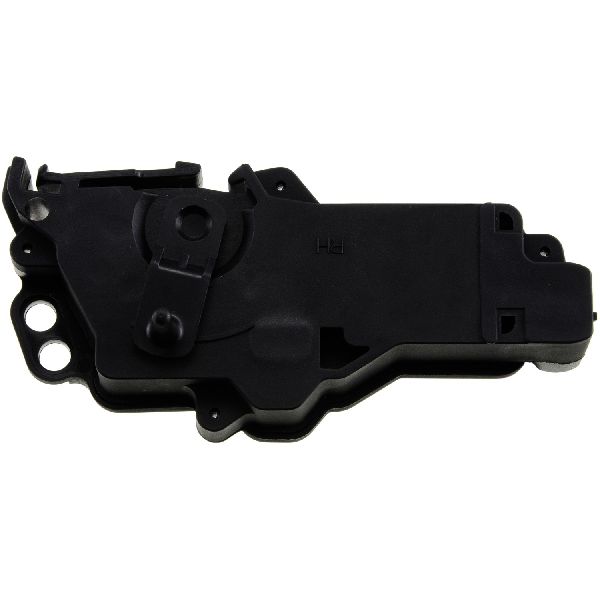

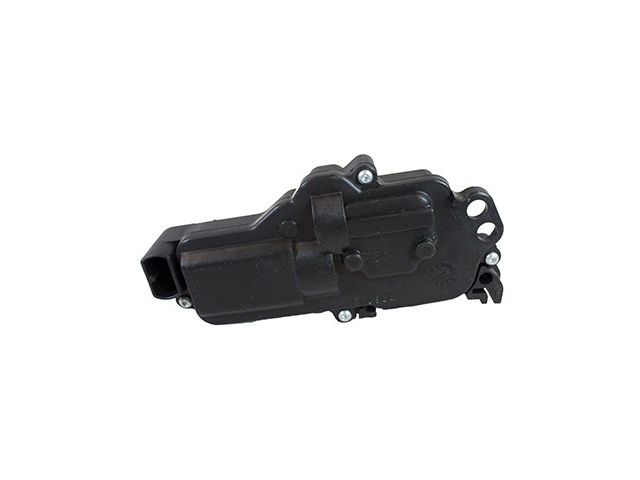

- OEM-Level Brands (Motorcraft, Continental): Motorcraft is Ford's own parts brand, so it's a direct replacement for what came on your truck. Continental is often an OEM supplier to Ford and other automakers, so their quality is typically equivalent to the original part. These are your most reliable, but also most expensive, options.
- Top-Tier Aftermarket (Standard Ignition, Dorman): Brands like Standard Motor Products (Standard Ignition) and Dorman are well-regarded in the aftermarket. They specialize in electrical components and often engineer their parts to meet or exceed original specifications. Dorman, for example, is a very common replacement part for this issue. These brands offer a great balance of quality and price.

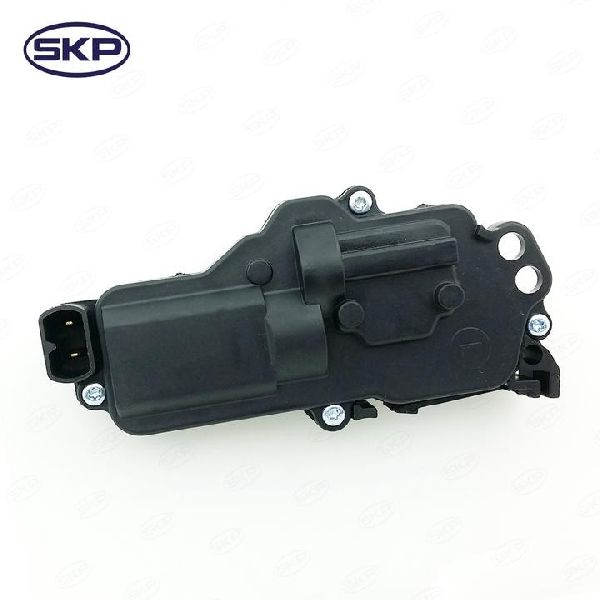

- Value Brands (Replacement, Skyward): These brands focus on providing the most affordable options. They are a good choice for budget-conscious repairs, but may not have the same long-term durability or precise fit as the higher-tier brands. For a part that is labor-intensive to access, consider spending a little more for a better-quality brand to avoid doing the job twice.
| Part Type | Estimated Price Range |
|---|---|
| New Aftermarket | $15.54 - $92.75 |
| New OEM (Motorcraft) | $105 - $176 |
| Shop Labor Cost | $125 - $184 |
Pro Tip: Replace in Pairs?
Door lock actuators tend to fail around the same time, especially the front doors which are used most often. If you're taking the time to remove a door panel to replace one, and your vehicle has high mileage, consider replacing the actuator on the opposite side as well to save yourself future labor.
Frequently Asked Questions
Is it hard to replace a Ford Expedition door lock actuator?
Replacing the actuator is a moderately difficult job for a DIYer. It requires removing the interior door panel, peeling back the weather barrier, and working in a tight space to unbolt the old actuator and disconnect its linkages. It typically takes 1.5 to 2.5 hours. 🎬 See a full walkthrough of the actuator replacement process. If you are not comfortable with this, a professional mechanic can do the job for you.
Do I need special tools to replace the actuator?
You will need a basic set of tools, including sockets (like 7mm, 8mm), a Phillips screwdriver, and Torx drivers (T20, T27 are common). A set of plastic trim removal tools is highly recommended to avoid scratching or breaking the clips 🎬 Watch this guide on safely removing your door panel. on your door panel.
My locks work with the switch but not the key fob. Is it the actuator?
Not necessarily. If the locks work with the door switch but not the remote, the problem could be the key fob battery, the fob itself, or the vehicle's security module. An actuator failure typically affects a single door regardless of whether you use the switch or the fob.
Can a bad door lock actuator drain my battery?
Yes, it's possible. A malfunctioning actuator can get stuck in a cycle or create a short circuit, causing a continuous small drain on the battery. If you have a dead battery along with door lock problems, the actuator could be the culprit.
Helpful Videos
Technical Specifications
OEM Part Numbers: JL1Z-78219A64-C JL1Z-78219A65-C KL1Z-78219A65-A KL1Z-78219A65-B
The door lock actuator for the Ford Expedition is an integrated electronic motor and gear assembly. It is typically sold as part of the complete door latch assembly. The specific part number varies by door position (front/rear, left/right) and sometimes by trim level features like Passive Entry.
