Jeep Wrangler (2003-2019) EVAP Leak Detection Pump Guide
That check engine light for a P0456 code on your Jeep Wrangler is likely the EVAP leak detection pump.
- This is a very common issue on 2007-2018 JK Wranglers, causing P0456/P0457 codes and a 'gascap' light.
- The replacement is extremely easy for a DIYer, taking less than 30 minutes with no special tools.
- Always replace the O-ring seal with the pump; it's critical for preventing leaks.
- Before replacing the pump, try a new OEM gas cap first, as it's a cheaper and common failure point.
Is Your Check Engine Light On?
A glowing check engine light on your Jeep Wrangler's dashboard is often the first and only sign of a problem with the Evaporative Emissions System Leak Detection Pump (LDP). This issue is extremely common, especially on the 2007-2018 JK Wrangler. You usually won't notice any difference in how your Jeep drives, but you will not pass an emissions test until it's fixed.
When you or a mechanic scans the vehicle's computer, you will likely see one of these codes:
- P0456: Small EVAP System Leak (the most common code)
- P0457: EVAP System Leak Detected (Gas Cap Loose/Off)
- P0455: Large EVAP System Leak
You might also see a "GASCAP" message on your instrument cluster, even if the cap is tight.
Confirm Your Wrangler Model Year First!
The term "Leak Detection Pump" applies to different systems in the 2003-2019 year range. Ordering the right part is critical.
- 2007-2018 Wrangler (JK): This is the most common model with this specific part. The LDP is a white, rectangular module that twists into the charcoal canister located on the driver's side, just in front of the rear axle. Most aftermarket pumps are designed for this model.

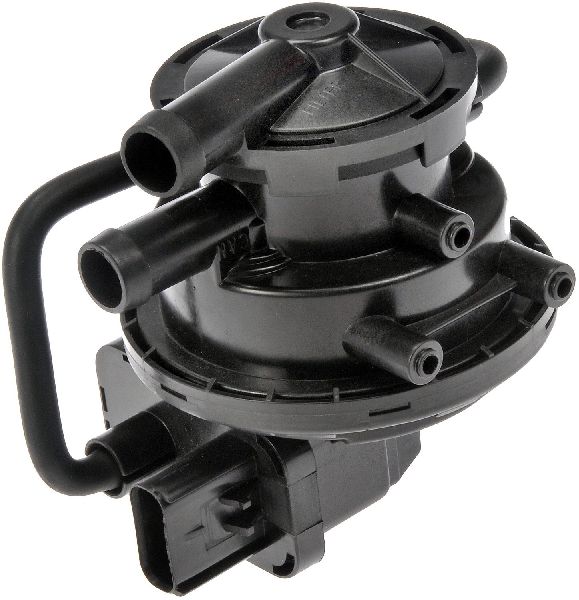

- 2003-2006 Wrangler (TJ): These models also use a leak detection pump, but the EVAP system is different. The components are located in the passenger-side rear wheel well area. The parts are not interchangeable with the JK. Double-check the part fitment for your specific year.
- 2018-2019 Wrangler (JL): The newer JL Wrangler uses a completely different EVAP system. Parts for the JK will not fit.
Choosing the Right Aftermarket Leak Detection Pump
Since the original Mopar pump can fail, a quality aftermarket part is a smart choice. Aftermarket brands often offer comparable quality at a better price. Here’s a breakdown of the available brands:
- Standard Ignition (SMP): Often considered a premium aftermarket brand. Mechanics trust SMP for its quality and reliability, which often meets or exceeds OEM standards. This is a top-tier choice if you want peace of mind.
- Dorman: A very popular and widely available brand that provides good value. Dorman sometimes improves on the original factory design. While quality can vary by part, their leak detection pumps are a common and successful fix for many Jeep owners.
- Crown Automotive: A brand specializing in Jeep parts. They are a well-known option in the Jeep community, offering a balance of value and vehicle-specific focus.
Pro Tip: Many forum users report that very cheap, no-name pumps from online marketplaces tend to fail quickly. Sticking with a reputable brand like Standard, Dorman, or Crown is a safer bet.
Cost to Replace a Jeep Wrangler Leak Detection Pump
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket | $41.95 - $184.58 |
| New OEM (Mopar) | $70 - $200 |
| Shop Labor | $75 - $150 |
| Total DIY Cost | $41.95 - $184.58 |
| Total Shop Cost | $115 - $350 |
Frequently Asked Questions (FAQ)
Is it hard to replace the leak detection pump on a JK Wrangler?
No, it is one of the easiest repairs you can do. It requires no special tools. The pump is located on the EVAP canister in front of the rear driver's side wheel. You simply disconnect one electrical plug and one hose, press a small tab, and twist the pump about 20 degrees to remove it. The entire job can be done in under 30 minutes.
Should I replace the O-ring too?
Yes, absolutely. A bad seal will cause the same error codes. Most aftermarket pumps come with a new O-ring. The original Mopar part sometimes does not, so you must buy it separately. Always use the new O-ring that comes with your part.
Could the problem just be my gas cap?
Yes. A worn-out or loose gas cap is a very common cause of EVAP codes. Before buying a new pump, make sure your gas cap is tight. If the light returns, spending a few dollars on a new OEM gas cap is a wise first step before replacing more expensive parts.
I replaced the pump and gas cap, but the light is still on. What now?
If a new pump and cap don't solve the issue, you likely have a leak elsewhere in the system. The most common culprits are cracked rubber EVAP hoses, especially the lines that run near the battery in the engine bay. The next step would be to have a mechanic perform a "smoke test," which fills the system with a harmless vapor to visually pinpoint the source of the leak.
Helpful Videos
Technical Specifications
OEM Part Numbers: 4861962AB
Also known as: Evaporative System Integrity Module (ESIM), Fuel Vapor Leak Detection Pump. Location (JK): Driver side, mounted to the charcoal canister, in front of the rear axle.
