Lincoln Navigator (2003-2021) Engine Oil Pressure Switch Explained
Don't ignore your oil light—understand what it means for your Navigator's engine and how to fix it right.
- Never drive with an active oil pressure warning light; doing so risks catastrophic engine damage.
- A faulty switch is a common issue and can mimic the symptoms of a major engine problem.
- For this specific part, using the OEM Motorcraft replacement is highly recommended for reliability and to avoid repeat repairs.
- Before replacing the switch, it's wise to have a mechanic perform a manual pressure test to rule out a more serious internal engine issue.
Is Your Navigator's Oil Light On? Here's What It Could Mean
Seeing the red oil pressure light on your dashboard is a serious warning. It could mean your engine is in immediate danger due to low oil pressure, or it could be a sign of a much simpler problem: a faulty engine oil pressure switch. This sensor is a common failure point that can create a lot of stress, but understanding the symptoms can help you diagnose the issue correctly.
Symptoms of a Failing Oil Pressure Switch
- Oil Pressure Light On or Flickering: The most common sign is the oil pressure warning light coming on, even when you know the oil level is full. The light might stay on constantly or flicker intermittently.
- Incorrect Gauge Readings: If your Navigator has a pressure gauge, a bad switch can cause it to read zero, max out completely, or jump around erratically.
- Check Engine Light: A faulty switch can send bad data to the vehicle's computer, triggering the Check Engine Light. A common trouble code associated with this is P0521 (Engine Oil Pressure Sensor/Switch Range/Performance).
- Visible Oil Leak: The switch itself can develop a leak over time. You might see oil residue on the sensor or drips on the ground below it.
Known Issues for Certain Model Years
While there are no widespread recalls for the oil pressure switch itself, some Navigators have related factory bulletins (TSBs). For example, some 2018-2020 models with the 3.5L High-Output engine have a TSB for excessive oil consumption (TSB 20-2423), which can cause a legitimate low oil pressure warning. Some 2018 models also had a technical service bulletin (SSM 47072) related to the P0521 trouble code appearing after a crank, no-start event. Always check for TSBs related to your specific year and engine.
Choosing the Right Aftermarket Switch
When replacing the oil pressure switch, you have a choice between OEM (Motorcraft) and aftermarket brands. While saving money is tempting, this is one part where quality matters.
- OEM (Motorcraft): This is the original part your Navigator was built with. It's widely recommended by mechanics for this specific job because it ensures perfect fitment and the most reliable performance. Given the labor that can be involved, using an OEM part helps ensure you won't have to do the job twice.
- Premium Aftermarket (e.g., Standard Ignition): Brands like Standard Ignition (also known as Standard Motor Products) are well-regarded in the aftermarket. They are known for producing quality components that are a reliable alternative to OEM, often at a slightly lower price.
- Value Aftermarket (e.g., True Tech): These brands offer the lowest price point. While they can be a good budget option for simpler repairs, for a critical sensor like an oil pressure switch, the potential for premature failure might outweigh the initial savings.
Pro Tip: Many mechanics strongly advise using an OEM Motorcraft sensor for this repair. Access to the switch can be difficult, so using a part you can trust to last is a smart investment to avoid repeat labor costs.
Cost to Replace a Lincoln Navigator Oil Pressure Switch
The total cost depends on the part you choose and who does the work. The part itself is not very expensive, but labor can be a significant portion of the final bill if the switch is hard to access on your specific engine.
| Part/Service | Estimated Cost |
|---|---|
| New OEM (Motorcraft) Part | $20 - $95 |
| New Aftermarket Part | $20 - $48 |
| Shop Labor | $130 - $200 |
| Total Estimated Cost (Shop Repair) | $150 - $295 |
Frequently Asked Questions
Where is the oil pressure switch located on my Navigator?

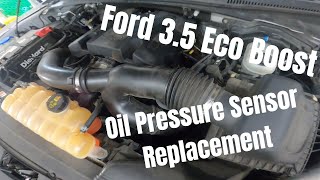

The oil pressure switch is typically screwed into the engine block, often located near the oil filter housing. Depending on the engine (5.4L V8 or 3.5L V6), its exact position 🎬 Watch: Step-by-step 3.5L Ecoboost oil pressure switch replacement walkthrough. and accessibility can vary. You may need to raise the vehicle to see and reach it.
Can I drive my Navigator with the oil pressure light on?
No. You should pull over and shut off the engine as soon as it is safe to do so. The light indicates a potential lack of oil pressure, which can destroy your engine in a very short amount of time. Even if it's just a bad sensor, you can't know for sure without a proper diagnosis. It is best 🎬 See how to check actual engine oil pressure on a 5.4L. to have the vehicle towed.
Is an aftermarket oil pressure switch good enough?
While premium aftermarket brands like Standard Ignition are generally reliable, the consensus for this part on Ford/Lincoln vehicles is to use the OEM Motorcraft switch. The risk of a cheap aftermarket sensor failing prematurely often isn't worth the small cost savings, especially if it leads to a repeat repair or, worse, fails to warn you of a real oil pressure problem.
What does the code P0521 mean?
P0521 is a generic diagnostic trouble code for "Engine Oil Pressure Sensor/Switch Range/Performance." It means the vehicle's computer has detected that the sensor's reading is out of its expected range—either too high, too low, or not changing when it should be. 🎬 Watch: Understanding the causes and fixes for the P0521 code. This could be caused by a bad sensor, wiring issues, or an actual mechanical problem with the engine's oil pressure.
Helpful Videos
![How to Fix P0521 Engine Code in 4 Minutes [2 DIY Methods / Only $6.87]](https://img.youtube.com/vi/W9EL9QHCDMo/mqdefault.jpg)
Technical Specifications
OEM Part Numbers: 6U5Z-9278-D GN1Z-9D290-D GN1Z-9D290-B F75Z-9278-CB 1U5Z-9278-DA ML3Z-9D290-A SW-8392 SW-8368 OPS-1
The specific part number and connector type (1-pin vs 3-pin) varies significantly depending on your Navigator's model year and engine (5.4L V8 vs 3.5L V6). Always verify the correct part for your vehicle's VIN before ordering. Some switches come with thread sealant pre-applied.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
