2004-2006 BMW 545i Windshield Washer Pump Replacement Guide
If your washer fluid isn't spraying, a new pump is a common and straightforward fix you can do yourself.
- The windshield washer pump is a common failure item, but it is an easy and affordable DIY replacement.
- Always replace the rubber grommet/filter when installing a new pump to prevent leaks.
- Your 545i may have two pumps; the smaller one is for the windshield, and the larger one is for headlights.
- Before replacing the pump, check for simple issues like a clogged filter or empty reservoir.
Is Your BMW 545i Windshield Washer Not Working?

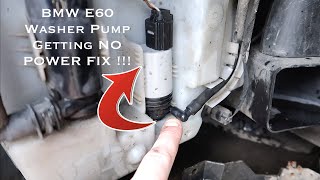

A common issue for the E60 generation, including the 2004-2006 545i, is a failing windshield washer system. Often, the problem is a dead pump, a clogged filter, or a leaking grommet. If you pull the lever and hear nothing, or just a faint hum 🎬 Troubleshoot electrical issues if your pump is getting no power. with no fluid, the pump is the likely culprit. This guide will walk you through choosing the right aftermarket part and understanding the replacement process.
Check the Simple Things First
Before buying a new pump, make sure your washer fluid reservoir is full. Also, check the spray nozzles on the hood for clogs. Sometimes, the issue is a clogged filter grommet at the base of the pump, which can be cleaned. A BMW Technical Service Bulletin (TSB) notes that using plain tap water can cause an algae-like substance to build up and clog the pump's strainer.
Symptoms of a Failing Windshield Washer Pump
- No Sound: You pull the washer lever and hear no humming sound from the front passenger side of the car.
- Pump Runs, No Fluid: You can hear the pump motor running, but little to no fluid sprays onto the windshield. This can point to a weak pump or a clogged filter.
- Leaks: You notice blue or green fluid puddles under the front passenger side of your car. This is often caused by a degraded rubber grommet where the pump enters the reservoir, or a crack in the pump body itself. 🎬 See how to find leaks and fix your washer pump.
- Weak Spray: The fluid barely reaches the windshield, indicating the pump is losing pressure.
Choosing the Right Aftermarket Washer Pump
For the 2004-2006 BMW 545i, you don't need to pay dealership prices for a reliable washer pump. Quality aftermarket brands offer excellent value. Your vehicle may have two pumps in the reservoir: a smaller one for the windshield and a larger one for the headlights. This guide focuses on the main windshield washer pump.
Brand Quality Tiers
- URO Parts: URO is a popular aftermarket choice for European cars, known for its budget-friendly prices. For a simple part like a washer pump, many DIYers find it to be a perfectly suitable replacement that gets the job done without the high cost of an OEM part. Reviews are generally positive, citing good fit and function.
- Trico: While Trico is a giant in the world of wiper blades, they also produce washer pumps. They are designed for easy installation and are considered a reliable stock replacement option.
Always Replace the Grommet
The small rubber grommet that seals the pump to the reservoir is a critical part. It often becomes hard and brittle with age, causing leaks. It's highly recommended to replace this grommet (which often includes a new filter screen) whenever you replace the pump to ensure a leak-free seal. It's an inexpensive part that can save you from doing the job twice.
Cost of Replacing a BMW 545i Windshield Washer Pump
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Pump (Trico, URO Parts) | $13.87 - $38.34 |
| New OEM (Genuine BMW) Pump | $60 - $88 |
| Shop Labor | $75 - $150 |
Frequently Asked Questions (FAQ)
Where is the washer pump located on my 2004-2006 545i?
The windshield washer pump is located at the bottom of the washer fluid reservoir. You can access it by jacking up the front passenger side of the car, removing the wheel, and pulling back the front section of the plastic wheel well liner.
Can I replace the washer pump myself?
Yes, this is a great DIY job for a beginner. It requires basic tools like a jack, jack stands, and sockets to remove the wheel and fender liner screws. The pump itself pulls straight out of the reservoir. The entire process typically takes about an hour.
🎬 Watch this step-by-step DIY guide for the E60 washer pump.My 545i has headlight washers. Is it a different pump?
Yes. If your car has headlight washers, you will see two pumps in the reservoir. The larger, outer pump is for the headlights, and the smaller, inner pump is for the windshield. They are separate parts, though they may look similar.
Are there any recalls for the washer pump on the BMW 545i?
No, there are no specific recalls from the NHTSA for the windshield washer pump on the 2004-2006 BMW 545i. There have been recalls for the main engine electric water pump on some BMWs, but this is a completely different part from the windshield washer pump.
I hear the pump motor, but no fluid comes out. Is the pump bad?
Not necessarily. If the motor runs, the electrical part is working. The problem is likely a blockage. The most common culprit is the filter screen on the pump's grommet, which can get clogged with debris or algae. You can try cleaning this filter before replacing the entire pump.
Helpful Videos
Technical Specifications
OEM Part Numbers: 67127302589 67126934159
Fits into the main washer fluid reservoir, typically located in the front passenger-side wheel well. The system may contain a second pump for headlight washers. The windshield pump is the smaller of the two.
