A Comprehensive Guide to the 2004-2006 Lexus ES330 A/C Condenser
If the A/C in your Lexus ES330 is blowing warm, this guide will help you diagnose the problem and choose the right replacement condenser.
- The A/C receiver/drier is integrated with the condenser on the ES330 and must be replaced as a single unit.
- Denso is the OEM supplier; choosing an aftermarket Denso condenser provides original quality at a lower cost.
- A blinking A/C light is often a cheap magnetic clutch relay, not an expensive condenser failure. Check this first.
- Replacement requires specialized equipment to evacuate and recharge the refrigerant, making professional help necessary for the final steps.
Is Your Lexus ES330 A/C Blowing Warm Air?
When the sophisticated climate control in your ES330 stops providing cool air, a failing A/C condenser is a common suspect. Because it sits at the front of the vehicle, it is vulnerable to damage from road debris and front-end impacts. Understanding the symptoms can help you pinpoint the issue before it leads to more expensive repairs.
Common Failure Symptoms
- Warm Air From Vents: This is the most obvious sign. If the condenser is leaking or clogged, it cannot cool the refrigerant, resulting in warm or lukewarm air.
- Poor Cooling at Low Speeds: If your A/C works better on the highway than it does in city traffic, it can indicate poor airflow over a dirty or damaged condenser.
- Visible Leaks or Damage: You may see bent or crushed fins on the condenser from rocks or debris. An oily residue on the condenser surface is a clear sign of a refrigerant leak.
- A/C Light Blinking: While this can be related to many issues, a common problem on the ES330 is a faulty magnetic clutch relay. This is a simple, inexpensive part to replace and should be checked before assuming the entire compressor or condenser is bad.
Check This First!
If your A/C light is blinking, the issue may be a faulty magnetic clutch relay, not the condenser. This is a well-documented issue for this generation of ES330. The relay is located in the engine bay fuse box and is a much cheaper and easier fix. Try swapping this relay before condemning more expensive components.
🎬 Watch this guide to fixing a blinking A/C light.Choosing the Right Aftermarket Condenser
For the 2004-2006 ES330, you don't need to pay high dealer prices for a quality part. The original manufacturer, Denso, sells its parts on the aftermarket, offering OEM quality without the OEM price tag. Here’s a breakdown of available brands.
Brand Quality Tiers

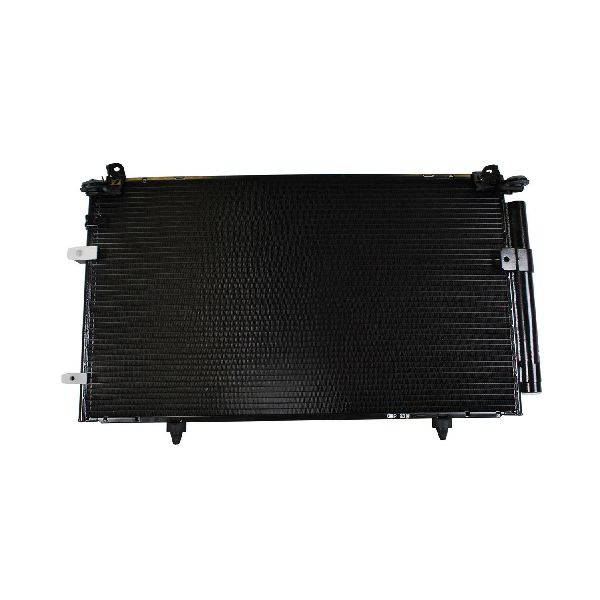

- OEM-Equivalent (Best): Denso is the original equipment manufacturer for Lexus. Choosing a Denso aftermarket condenser is the closest you can get to the original part, ensuring perfect fit and performance. Forum users consistently recommend Denso as the top choice.

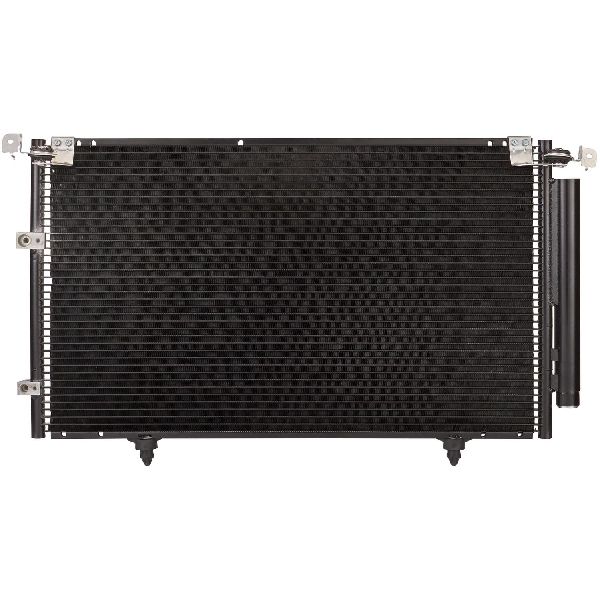

- Reputable Aftermarket (Good): Brands like Spectra and CSF Radiator are well-known in the aftermarket. They offer a good balance of price and quality. While generally reliable, fit and finish might not be as perfect as Denso, but they are a solid choice for a daily driver.

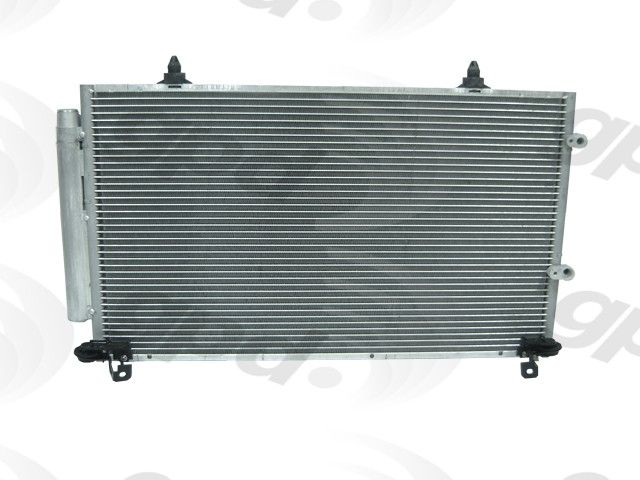

- Budget Aftermarket (Value): Brands such as APDI, Global Parts, and One Stop Solutions offer the most affordable options. These parts meet basic requirements and can be a good value, but their long-term durability may not match the higher-tier brands.
Pro Tip: Always Replace the Drier and O-Rings
On the ES330, the receiver/drier is integrated with the condenser. Any quality replacement will include it. You must also replace the small rubber O-rings at the line connections to prevent leaks. Failing to do so can cause your new condenser to fail and will void the warranty on most A/C parts.
Known Issues, Recalls, and TSBs
There are no official recalls or technical service bulletins (TSBs) from Lexus specifically for the A/C condenser on the 2004-2006 ES330. However, there is one related recall to be aware of:
- NHTSA Recall 11V539000: This recall is for the engine's crankshaft pulley on 2004-2005 models. The pulley drives the belt for the A/C compressor. If it fails, you will lose A/C function and power steering. A Lexus dealer can check if your vehicle is affected and perform the repair for free.
Replacement Cost for Your Lexus ES330
Replacing the A/C condenser is a two-part job: the physical installation and the system evacuation and recharge, which requires special equipment. The table below shows estimated costs.
| Part/Service | Estimated Cost |
|---|---|
| New OEM Condenser | $400 - $460 |
| New Aftermarket Condenser | $99 - $134 |
| Shop Labor | $256 - $376 |
| Total Professional Replacement 🎬 See a full walkthrough of the compressor and condenser replacement. | $716 - $836 |
Frequently Asked Questions (FAQ)
Is replacing the ES330 condenser a DIY job?
This is an advanced DIY job. While the physical part replacement is straightforward for a skilled mechanic, the A/C system must be legally and safely evacuated of refrigerant before work begins and then vacuum-tested and recharged afterward. This process requires expensive, specialized equipment. Most DIYers replace the part themselves and then take the car to a shop for the final evacuation and recharge service.
Do I have to remove the radiator to replace the condenser?
Yes, on the ES330, removing the radiator is necessary to get enough clearance to remove and replace the A/C condenser. While this adds steps to the job, it is the recommended procedure for a successful replacement.
🎬 Watch how to remove the radiator and condenser together.What kind of refrigerant does the 2004-2006 ES330 use?
The system uses R-134a refrigerant. The total capacity is approximately 1.32 lbs (21 oz). This information is also on a sticker under the hood.
Why did my new condenser fail after a few months?
The most common reason for a premature failure is system contamination. If the old A/C compressor failed and sent metal debris through the system, that debris can clog the new condenser. It is also critical to replace the receiver/drier (which is part of the condenser assembly on the ES330) and have the system properly vacuumed down to remove all moisture before recharging.
Helpful Videos
Technical Specifications
OEM Part Numbers: 8846006070 88460-06070
Configuration: Parallel Flow Condenser. Core Material: Aluminum. Special Feature: Integrated Receiver/Drier.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
