Lexus ES330 (2004-2006) Automatic Transmission Output Shaft Speed Sensor Guide
Solve your ES330's erratic shifting and dead speedometer by understanding this critical sensor.
- A bad output speed sensor is a common cause of harsh shifting and a dead speedometer on the ES330.
- The most common trouble code is P0720, which points directly to the output speed sensor circuit.
- This is a DIY-friendly repair for many, located on top of the transmission under the airbox.
- Ensure you buy the 'output' sensor, not the 'input' sensor, as they are different parts.
Symptoms of a Failing Output Speed Sensor
When the output speed sensor on your ES330 starts to fail, the signs are usually hard to ignore. Because this sensor directly tells the transmission when to shift, a bad sensor can make your car feel unpredictable. The most common problem is a lit Check Engine Light, often with a P0720 code.
🎬 Watch: Understanding the causes of a P0720 circuit malfunction.- Harsh or Erratic Shifting: The transmission may slam into gear, hesitate, or shift at the wrong times.
- Inoperative Speedometer: The speedometer needle may stay at 0 MPH or jump around randomly.
- Check Engine Light: A failing sensor will almost always trigger a Check Engine Light.
- Cruise Control Not Working: The cruise control system needs a steady speed signal, so it will stop working.
- ABS/TRAC Lights: In some cases, the ABS and traction control lights may also come on.
Choosing the Right Aftermarket Sensor
When replacing the output speed sensor, you have a choice between OEM and aftermarket parts. For the ES330, several quality aftermarket options exist that provide reliable performance without the higher cost of a dealer part. It's important to choose a reputable brand for electronic parts like this.
Brand Quality Tiers

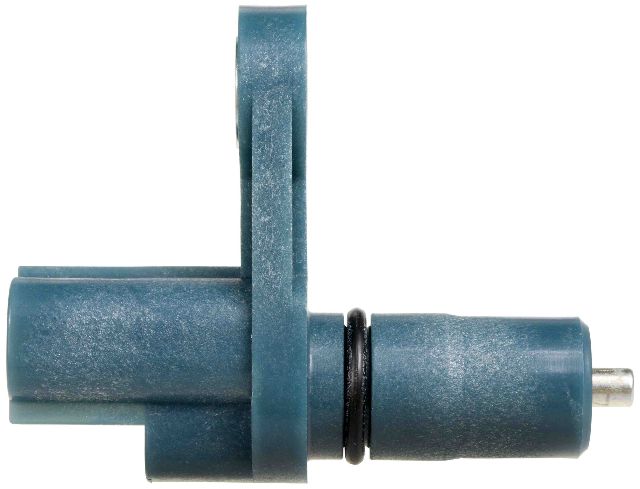

- Premium Aftermarket (NGK/NTK): NGK (under their NTK electronics brand) is a top-tier choice. They are known for making parts that meet or exceed original equipment (OE) standards for fit and performance. Their sensors are built with high-strength materials to resist heat and moisture, which is crucial inside an engine bay.
- Standard Aftermarket (Standard Ignition): Standard Motor Products (SMP) is a well-respected brand that has been trusted by professional mechanics for years. Their 'T-Series' line is designed to be a competitively priced, commercially acceptable product with proven quality for everyday repairs. This is a solid, reliable choice for most owners.

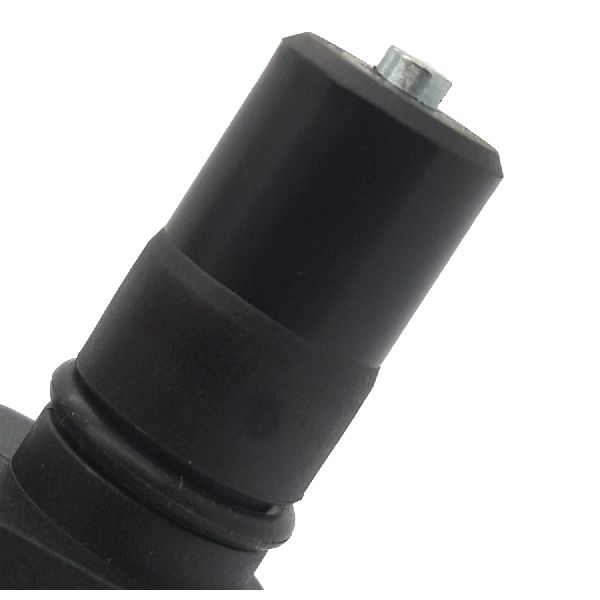

- Economy Aftermarket (True Tech): True Tech falls into the economy or budget-friendly category. While offering significant cost savings, the long-term durability and precision may not match premium brands. This can be a viable option for a short-term fix or if the budget is the primary concern.
Cost Comparison for ES330 Output Speed Sensor
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket | $68.95 - $300.09 |
| New OEM (Dealer) | $150 - $290 |
| Shop Labor | $50 - $100 |
| Total Professional Replacement (Aftermarket Part) | $120 - $400 |
Frequently Asked Questions (FAQ)
Where is the output speed sensor located on the 2004-2006 ES330?
The output speed sensor is located on the top, outer part of the automatic transaxle case. To access it, you will need to look down between the engine and the firewall. It is generally necessary to remove the air filter box assembly 🎬 See this step-by-step speed sensor replacement walkthrough. to get enough room to work. The sensor is held in place by a single 10mm bolt.
Can I replace this sensor myself?
Yes, this is a DIY-feasible job for many home mechanics. The main steps involve removing the air intake box for access, disconnecting the electrical connector, removing one bolt, and swapping the sensor. 🎬 Watch: How to test and replace the revolution sensor. The most challenging part is often reaching the sensor in a tight space. If you are not comfortable working in the engine bay, a mechanic can typically complete the job in about an hour.
What happens if I don't replace a bad output speed sensor?
Continuing to drive with a faulty sensor is not recommended. The harsh and unpredictable shifting can cause extra wear and stress on your transmission's internal components, potentially leading to more expensive damage over time. The lack of a working speedometer is also a safety risk.
Are there any recalls for this part on my Lexus?
No, searches of the National Highway Traffic Safety Administration (NHTSA) database show no recalls or specific Technical Service Bulletins (TSBs) for a widespread failure of the transmission output speed sensor on the 2004-2006 Lexus ES330. Failures are typically related to the vehicle's age and mileage.
Helpful Videos
Technical Specifications
OEM Part Numbers: 89413-08020 89413-24010 89411-33010 89413-33030
Externally mounted, single-bolt installation magnetic sensor. Often referred to as 'No. 1 Revolution Sensor'.
