A Lexus Mechanic's Guide to the 2004-2006 ES330 Radiator
Keep your ES330's V6 engine cool and prevent costly damage by understanding radiator failure.
- Radiator failure is common on the ES330 due to age; look for cracks in the plastic tanks and pink residue.
- Denso is an OEM-equivalent brand, offering the best quality for a worry-free replacement.
- For a complete repair, replace the radiator hoses, thermostat, and radiator cap at the same time.
- Driving with an overheating engine can cause catastrophic and expensive engine damage. Do not ignore the temperature gauge.
Is Your ES330 Radiator Failing?
On a 20-year-old luxury car like the 2004-2006 Lexus ES330, the radiator is a common part to fail. The original radiators have plastic tanks on the sides connected to an aluminum center section, or core. Over time, the plastic can become brittle and crack, causing leaks. Leaks can also start in the core itself.
Common Symptoms
- Engine Overheating: The most obvious sign. If your temperature gauge starts climbing into the red 🎬 Watch this example of an ES330 overheating and melting the tank cap., your cooling system is not working correctly.
- Visible Coolant Leaks: You might see puddles of bright pink or red fluid under the front of your car. Sometimes, the leak is slow and burns off before it hits the ground. Look for pink, crusty residue on the radiator itself, which indicates a slow leak.
- Low Coolant Level: You may notice the coolant level in the clear plastic overflow tank is low. A constantly dropping level means you have a leak somewhere in the system.
- Sweet Smell: Engine coolant has a distinct sweet smell. If you notice this smell after driving, it's a strong sign of a coolant leak.
A Note on Slow Leaks
Some ES330 owners report very slow leaks that are hard to find. You might not see fluid on the ground, but you'll see the coolant level drop over weeks or months. Check the top and bottom of the radiator for any white or pink dried coolant stains. These are tell-tale signs of a leak that needs to be addressed before it gets worse.
Choosing the Right Aftermarket Radiator
You do not need to buy a radiator from the Lexus dealership to get a quality part. The original equipment (OE) manufacturer for many Toyota and Lexus parts is Denso. Buying a Denso-branded radiator from an aftermarket seller is like getting the same quality part without the dealership price. Other brands also offer excellent quality.
Brand Quality Tiers
- Tier 1: OEM-Equivalent Quality. These brands are known for fitting perfectly and lasting a long time. They are the best choice for a worry-free repair.

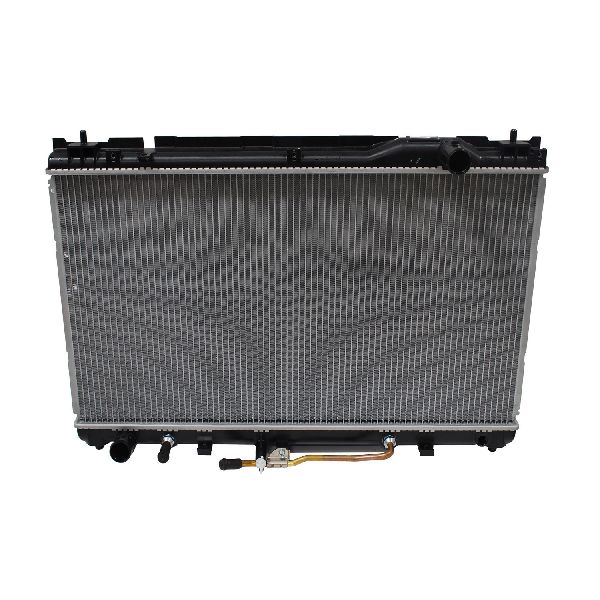

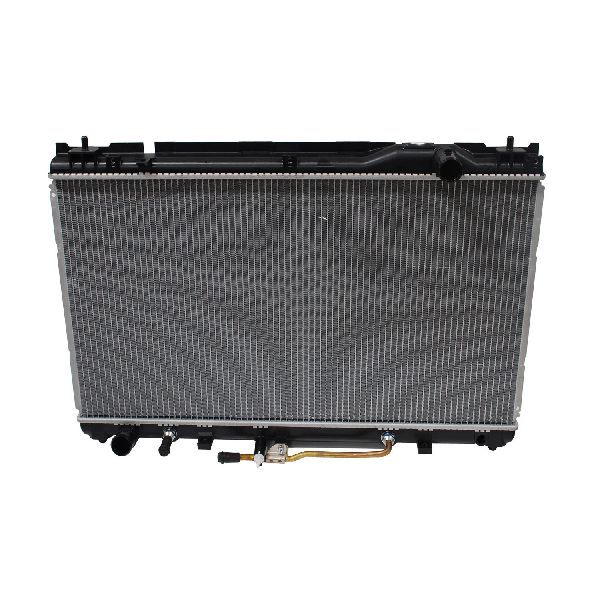

Brands: Denso, Koyorad, Nissens - Tier 2: Quality Aftermarket. These are reputable brands that offer a good balance of quality and price. They are a solid choice for most owners.

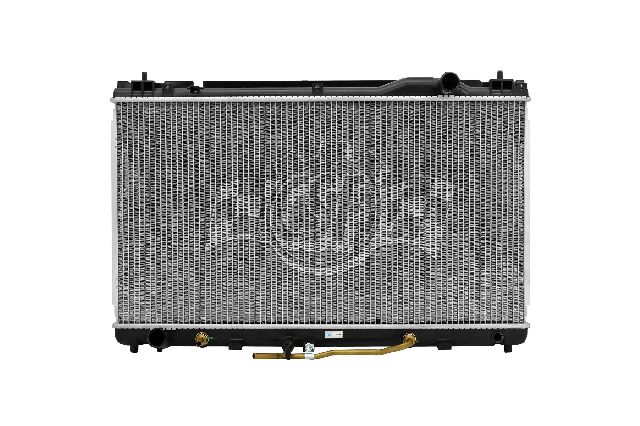

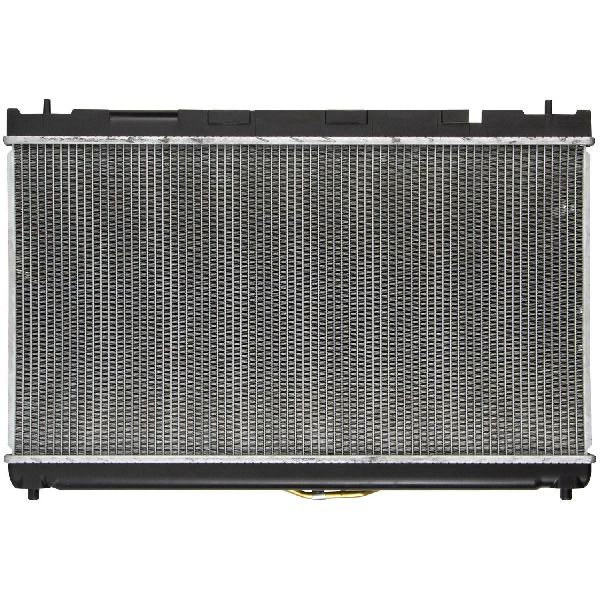

Brands: CSF Radiator, Spectra - Tier 3: Economy Brands. These are the most affordable options. They will get the job done but may not have the same long-term durability or perfect fit as higher-tiered brands.
Brands: ACDelco, Global Parts, One Stop Solutions
Pro Tip: Replace More Than Just the Radiator
Since you have to drain the cooling system anyway, it's a smart idea to replace the upper and lower radiator hoses 🎬 See this quick guide on replacing the upper radiator hose., the thermostat, and the radiator cap at the same time. These parts are inexpensive and wear out over time. Replacing them all at once can prevent another cooling system failure down the road.
Cost to Replace a 2004-2006 Lexus ES330 Radiator
The cost can vary depending on who does the work and what parts you choose.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Radiator (DIY) | $48 - $187 |
| New OEM Radiator (Part Only) | $580 - $780 |
| Shop Labor | $171 - $251 |
| Total Professional Replacement (Aftermarket Part) | $220 - $440 |
| Total Professional Replacement (OEM Part) | $750 - $1,030 |
Frequently Asked Questions
Is replacing the radiator a DIY job?
Yes, for someone with some mechanical experience. The job takes about two hours and requires basic hand tools. You will need to safely lift the front of the car, drain the coolant, remove plastic covers, and disconnect hoses and electrical connectors for the fans. There are many online videos showing the process for the ES330 or the similar Toyota Camry.
🎬 Follow this step-by-step video to replace your ES330 radiator.What type of coolant does the ES330 use?
Your Lexus ES330 requires Toyota Super Long Life Coolant, which is a pink, 50/50 pre-mixed fluid. Do not mix it with other colors or types of coolant, as this can cause problems in your cooling system. If your car currently has green or orange coolant, the system should be completely flushed before adding the correct pink coolant.
Were there any recalls for the ES330 radiator?
No, there have been no specific recalls or technical service bulletins (TSBs) issued by Lexus or the NHTSA for radiator failure on the 2004-2006 ES330. There was a recall for a crankshaft pulley, but it is unrelated to the radiator itself.
Does the new radiator come with a new cap?
Usually, no. Aftermarket radiators do not typically include a new radiator cap. It is highly recommended to buy a new, high-quality cap (Denso or OEM is best) to ensure the system holds pressure correctly.
Helpful Videos
Technical Specifications
OEM Part Numbers: 16400-20270 16400-20261 16400-20320 16400-0A240 16410-YZZAD 16410-YZZAE
The radiator for the 2004-2006 Lexus ES330 is a crossflow type with a plastic tank and aluminum core construction. It includes an integrated transmission fluid cooler for the automatic transmission. Ensure any replacement matches these specifications.
