Guide to Replacing the Catalytic Converter on a 2004-2006 Lexus RX330
Facing a P0420 or P0430 check engine light? Here is what you need to know before buying a new aftermarket catalytic converter for your RX330.
- The RX330 has three converters; P0420 indicates a Bank 1 (firewall side) issue, and P0430 indicates a Bank 2 (radiator side) issue.
- This vehicle's computer is very sensitive; low-cost aftermarket converters often fail to resolve the check engine light.
- Consider higher-quality aftermarket brands like MagnaFlow or a CARB-compliant part for a better chance of success.
- Always investigate and fix the root cause of the failure (like bad O2 sensors or engine misfires) before replacing the converter.
Understanding Your RX330's Catalytic Converter System
The 2004-2006 Lexus RX330 is equipped with a 3.3L V6 engine and has a more complex exhaust system than many cars. It uses three separate catalytic converters. Two of them are integrated directly into the exhaust manifolds, which are bolted to the engine. The third converter is located further downstream in the exhaust system.
- Bank 1 Converter: This is the exhaust manifold/converter assembly located on the cylinder head closest to the firewall (the rear of the engine bay). It is often associated with the P0420 trouble code.
- Bank 2 Converter: This is the exhaust manifold/converter assembly on the cylinder head closest to the radiator 🎬 Watch a step-by-step guide on replacing the Bank 2 converter. (the front of the engine bay). It is often associated with the P0430 trouble code.
- Rear/Downstream Converter: This third converter is located under the vehicle, after the two manifold converters merge.
It is crucial to correctly identify which converter has failed before purchasing a replacement. A code reader can point you to the correct bank (P0420 for Bank 1, P0430 for Bank 2), but a professional diagnosis is recommended to rule out other issues like oxygen sensor failure or exhaust leaks.
OEM vs. Aftermarket Converters for the RX330
Lexus RX330s are known for being particularly sensitive when it comes to replacement catalytic converters. The vehicle's computer (ECU) closely monitors converter efficiency. While OEM converters from Lexus are expensive, they are designed to meet these exact specifications.
Aftermarket converters are a more affordable option, but quality varies significantly. Cheaper, budget-friendly aftermarket converters may not contain enough precious metals to satisfy the RX330's ECU, leading to a recurring check engine light even after replacement. This is a common complaint among RX330 owners.
A Note on CARB vs. Federal (EPA) Converters
Catalytic converters are sold in two main grades: Federal (EPA) and CARB (California Air Resources Board). CARB-compliant converters are built to a higher standard with more precious metals and are required for vehicles registered in California and other states that have adopted CARB rules. Even if not required in your state, choosing a CARB-compliant or higher-quality "OEM Grade" aftermarket converter can increase the chances of it working correctly with your RX330 and preventing the check engine light from returning.
Choosing the Right Aftermarket Brand
When shopping for an aftermarket converter for your RX330, it's helpful to think of brands in tiers:

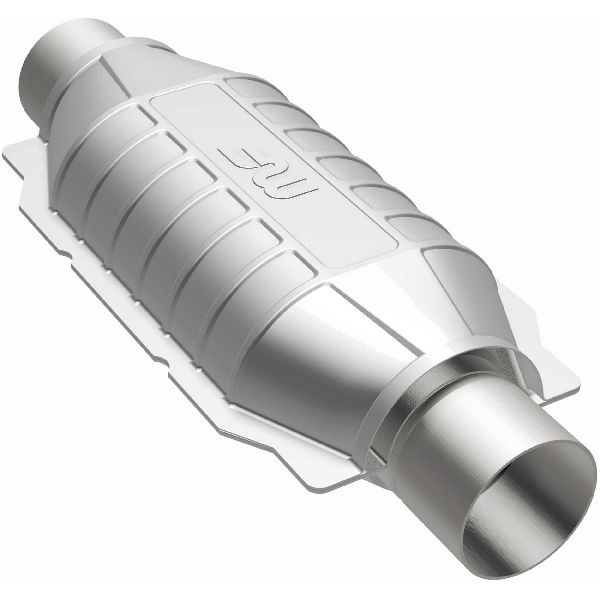

- Premium Aftermarket (Higher Success Rate): Brands like MagnaFlow are frequently recommended by mechanics and RX330 owners for their higher quality construction and better performance. They are often available in direct-fit and OEM-grade options, which can help keep the check engine light off.

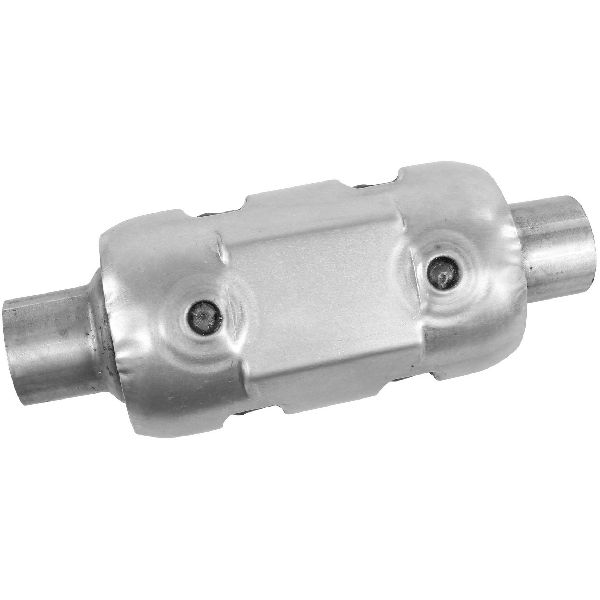

- Standard Aftermarket (Budget-Focused): Brands such as Walker Exhaust, AP Exhaust, Eastern Catalytic, Davico, and Evan Fischer offer more budget-friendly options. While these can be a good value, there is a higher risk that they may not meet the efficiency requirements of the RX330's sensitive emissions system, potentially leading to persistent P0420/P0430 codes.
Cost Comparison
| Part Type | Estimated Cost (Part Only) | Notes |
|---|---|---|
| New OEM | $725 - $925 per side | Highest quality and guaranteed compatibility. Prices are for each manifold converter. |
| New Aftermarket | $133 - $1134 | Wide range. Higher-priced units are often CARB-compliant or premium brands like MagnaFlow. |
| Shop Labor | $300 - $800+ | Varies by location and which converter is being replaced. The rear (Bank 1) converter is significantly more difficult and time-consuming. | 🎬 See how to tackle the difficult Bank 1 rear converter replacement.
Frequently Asked Questions (FAQ)
Why did my catalytic converter fail?
Converters typically fail because of another problem. Common causes include engine misfires, burning oil, or a coolant leak, which can send unburned fuel or contaminants into the exhaust, overheating and destroying the converter's internal structure. 🎬 Learn more about common warning signs of a failing catalytic converter. Always diagnose and fix the root cause of the failure before installing a new converter.
Why is my check engine light still on after replacing the converter?
This is a common issue with the RX330. It can happen if the aftermarket converter isn't efficient enough for the car's computer, if the root cause of the original failure wasn't fixed, or if an oxygen sensor is also faulty. Using a higher-quality aftermarket or OEM-grade part can help prevent this.
Should I replace my oxygen sensors at the same time?
It is highly recommended. A failing oxygen sensor can cause the same P0420/P0430 codes and can even lead to the failure of a new catalytic converter. Replacing the upstream and downstream oxygen sensors with the converter is a good practice to ensure the whole system works correctly.
What's the difference between Bank 1 and Bank 2?
On the RX330's V6 engine, "Bank 1" refers to the set of cylinders and the associated catalytic converter located near the firewall. "Bank 2" is the bank of cylinders near the radiator. The code P0420 corresponds to Bank 1, and P0430 corresponds to Bank 2.
Helpful Videos
Technical Specifications
OEM Part Numbers: 25051-20040 25052-20190 17410-0A410 17410-20450
System includes three catalytic converters: Bank 1 (rear manifold, by firewall), Bank 2 (front manifold, by radiator), and one downstream converter. Replacement requires specifying Federal (EPA) or CARB compliance.
