Lexus RX330 (2004-2006) Power Steering Pressure Switch Guide
Experiencing stalling or jerky steering in your RX330? A failing power steering pressure switch could be the culprit.
- A key symptom of failure is the engine stalling or idling roughly only when you turn the steering wheel at low speeds.
- The switch is located on the power steering pump, screwed into the high-pressure line banjo bolt.
- This is a simple and accessible DIY replacement that can be done in under an hour with basic tools.
- Check for fluid leaks from the switch or its connector before assuming the part has failed electrically.
Symptoms of a Failing Power Steering Pressure Switch
A bad power steering pressure switch can create noticeable issues. The most common problem is the engine stumbling or stalling when you turn the steering wheel at low speeds or while stopped. You might also notice an erratic or rough idle that corresponds with turning the wheel. In some cases, the switch itself can leak power steering fluid. If the sensor's electrical circuit fails, it can trigger the Check Engine Light on your dashboard.
Check for Leaks First
The power steering pressure switch is often located on the power steering pump or the high-pressure line. Before replacing the switch, check it and the surrounding hoses for any signs of fluid leaks. 🎬 Watch how to replace the high-pressure hose if you find leaks. Sometimes, a leak can mimic sensor failure or cause the sensor's electrical connector to become contaminated with oil, leading to a bad signal.
Choosing the Right Aftermarket Part for Your RX330
When replacing the power steering pressure switch, you have options outside of the expensive OEM part. Aftermarket brands offer a cost-effective solution. They can be categorized into different quality tiers:
- Better: Standard Ignition (SMP) - Standard is a well-regarded aftermarket manufacturer known for producing parts that meet or exceed OEM specifications. They perform 100% testing on their switches for both mechanical and electrical performance and use quality materials like copper alloy conductors. This is a reliable choice for a long-term repair.
- Good: True Tech - While "True Tech" can refer to several entities, including repair shops and parts brands, it generally falls into the category of standard replacement parts. These parts are designed to be a direct-fit replacement and offer a balance of quality and value.
- Value: Replacement - This is a generic term for budget-friendly parts. They are the most affordable option and will restore the original function, but may not have the same long-term durability or undergo the same rigorous testing as higher-tiered brands.
OEM vs. Aftermarket Quality
For a simple electronic switch like this, a quality aftermarket part from a reputable brand like Standard Ignition is often just as reliable as the original Lexus part, but at a fraction of the cost. The key is choosing a brand known for quality control. Budget parts will work but may have a shorter lifespan.
Cost of Replacing the RX330 Power Steering Pressure Switch
| Part Type | Estimated Cost |
|---|---|
| New OEM (Lexus) | $75 - $110 |
| New Aftermarket | $32.66 - $67.43 |
| Shop Labor | $50 - $100 |
Frequently Asked Questions (FAQ)
Is there a recall for the power steering pressure switch on the 2004-2006 RX330?
No, there are no specific recalls for the power steering pressure switch itself. However, there was a recall for the engine crankshaft pulley on 2004-2005 RX330 models. A failure of this pulley could cause the power steering belt to detach, resulting in a sudden loss of power steering assist.
Where is the power steering pressure switch located on the RX330?
On the V6 engine in the 2004-2006 Lexus RX330, the power steering pressure switch is located on the power steering pump. It is screwed into the top of the banjo bolt that connects the high-pressure hose to the pump.
Can I replace the RX330 power steering pressure switch myself?
Yes, this is a DIY-feasible repair for someone with basic tools. The process involves disconnecting the electrical connector, placing a drain pan to catch a small amount of fluid, and unscrewing the old switch. You will then screw in the new switch, reconnect the harness, and top off the power steering fluid.
🎬 See a step-by-step walkthrough of the pressure switch replacement.What diagnostic trouble code is associated with a bad power steering pressure switch?

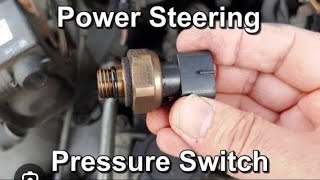

A failing power steering pressure switch circuit will typically trigger the diagnostic trouble code P0550. 🎬 Watch this guide to troubleshooting and fixing the P0550 code. This code specifically points to a malfunction in the sensor's circuit, which could be the sensor itself, the wiring, or a poor connection.
Helpful Videos
Technical Specifications
OEM Part Numbers: 89438-33010
The switch is located on the power steering pump for the 3.3L 3MZ-FE V6 engine. It is a screw-in type sensor with a single electrical connector.
