A Practical Guide to the 2004-2006 Lexus RX330 Power Steering Pump
Understand the common noises, leaks, and replacement options for your RX330's power steering pump.
- A whining noise that gets louder when turning is the #1 symptom of a failing power steering pump on the RX330.
- Check for the crankshaft pulley recall (NHTSA 11V539000), as a failure can cause a sudden loss of power steering.
- Use only DEXRON-II or DEXRON-III Automatic Transmission Fluid (ATF), not generic power steering fluid.
- When replacing the pump, inspect the high-pressure hose for leaks, as it is a common failure point.
Is Your RX330 Power Steering Pump Failing?
A failing power steering pump on a 2004-2006 Lexus RX330 will give you clear warning signs. Ignoring them can lead to a complete loss of power assist, making the vehicle difficult to steer. The most common issue owners report is noise, but leaks are also a major concern.
Common Failure Symptoms
- Whining or Groaning Noises: This is the most frequent complaint. You may hear a whining sound that gets louder when you turn the steering wheel. It is often most noticeable during a cold start and may quiet down as the engine warms up.
- Stiff Steering: The steering wheel feels heavy and difficult to turn, especially when parking or driving at low speeds. This happens when the pump can't create enough pressure.
- Fluid Leaks: You might see red or dark brown fluid spots under the front of your vehicle. Leaks can come from the pump body, the O-ring seals, or the attached hoses. Over time, the rubber hoses connected to the pump can become brittle and leak where they are crimped to the metal parts.
- Foamy Fluid: If air gets into the system, often through a bad seal on the pump, the power steering fluid in the reservoir can look foamy or have bubbles.
Important Recall Information: Crankshaft Pulley
There was a major safety recall (NHTSA Campaign ID: 11V539000) for 2004-2005 RX330 models. The issue was with the engine's crankshaft pulley, not the pump itself. The pulley could fall apart, causing the belt that drives the power steering pump to come off. This results in a sudden and complete loss of power steering. It is critical to ensure this recall work has been performed on your vehicle.
Choosing the Right Aftermarket Pump
For a vehicle like the 2004-2006 RX330, a new aftermarket power steering pump is often the most cost-effective choice. The original Lexus (OEM) pump is very expensive, and a quality aftermarket part can provide good performance for the remaining life of the vehicle.
New Aftermarket vs. Remanufactured:

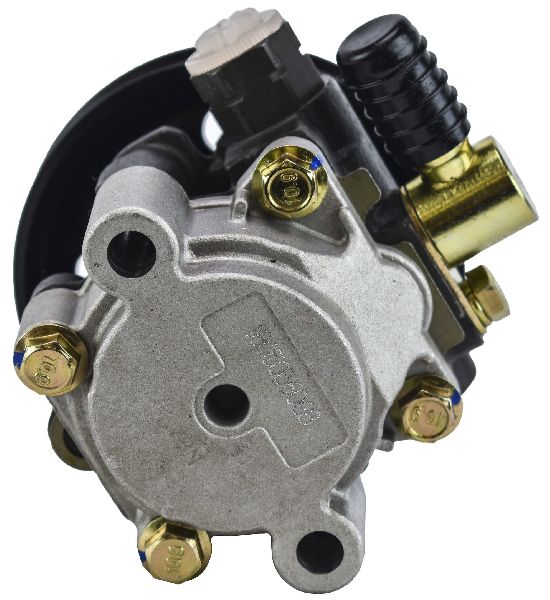

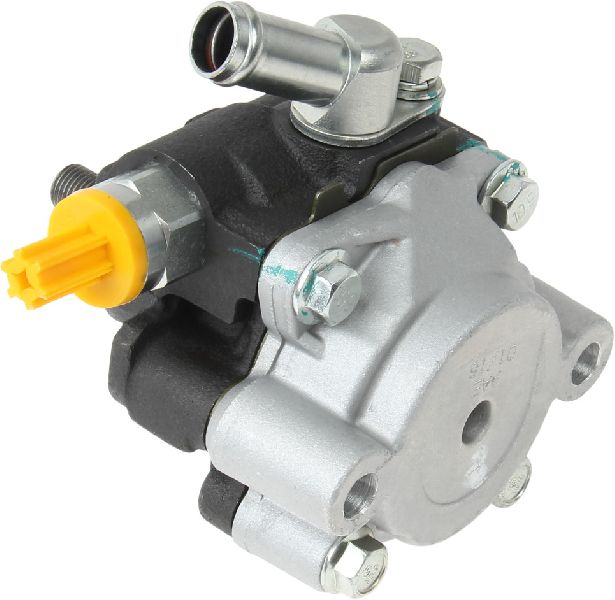

- New Aftermarket: Brands like BBB Industries, Atlantic Automotive Enterprise (AAE), and Replacement offer completely new pumps. These are built to match the original specifications and do not use any old parts. This is often the preferred choice to avoid issues that can sometimes come with rebuilt parts.

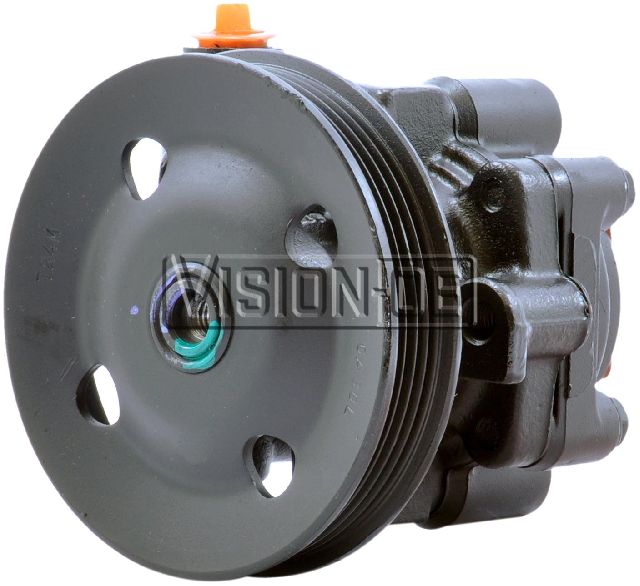

- Remanufactured: Brands like Cardone and BBB Industries also offer remanufactured (rebuilt) pumps. These are original pumps that have been taken apart, cleaned, and rebuilt with new seals, bearings, and other components that wear out. They are a budget-friendly option, but quality can vary.
Forum discussions among Lexus owners show some have had issues with aftermarket pumps being noisy right out of the box or failing early. While many have no problems, it's a good idea to buy from a supplier with a solid warranty and return policy.
Pro Tip: Replace Hoses and Fluid
When replacing the pump, it's a smart move to also replace the power steering hoses, especially the high-pressure line, which is a known leak point. 🎬 See how to replace the high-pressure hose and intake Always flush the system and use the correct fluid—DEXRON-II or DEXRON-III type Automatic Transmission Fluid (ATF), not standard power steering fluid. Using the wrong fluid can damage the new pump.
Expected Replacement Costs
The cost to replace your RX330's power steering pump will vary based on the parts you choose and who does the work. The job typically takes a professional mechanic 2-3 hours.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Pump | $130 - $250 |
| Remanufactured Pump | $130 - $200 |
| New OEM (Lexus) Pump | $320 - $550+ |
| Shop Labor | $250 - $450 |
| Total (DIY) | $130 - $250 |
| Total (Installed at Shop) | $380 - $700 |
Frequently Asked Questions
What type of power steering fluid does the 2004-2006 Lexus RX330 use?
The RX330 uses Automatic Transmission Fluid (ATF) that meets DEXRON-II or DEXRON-III specifications. Do not use fluid labeled only as "Power Steering Fluid," as it can cause damage. Many multi-vehicle import ATFs are compatible.
Is it hard to replace the RX330 power steering pump myself?
This is a moderately difficult job for a DIY mechanic. It requires lifting the vehicle safely, removing the serpentine belt, and working in a tight space. Bleeding the air out of the system after installation is a critical step that must be done correctly. 🎬 Watch: How to correctly fill and bleed the steering system If you are not experienced, it may be best to leave this job to a professional.
My pump is leaking. Do I have to replace the whole thing?
It depends on where the leak is coming from. Sometimes, a leak is just from a bad O-ring on a hose connection, which is a simple and cheap fix. However, if the leak is from the pump's main shaft seal or the body of the pump, the entire unit must be replaced.
What is a TSB and are there any for the RX330 power steering pump?
A TSB (Technical Service Bulletin) is a notice from the manufacturer to dealers about a common problem and how to fix it. While there are no TSBs for the pump itself, Lexus did issue bulletins (L-SB-0016-14, L-SB-0107-12) for leaks from the steering *rack*, which can sometimes be confused with a pump leak.
Helpful Videos
Technical Specifications
OEM Part Numbers: 44310-0E010 44320-48040 44310-48070 44310-0E020
Fluid Type: Automatic Transmission Fluid (ATF) DEXRON-II / DEXRON-III
