A Guide to Replacing Suspension Strut Bellows on the 2004-2006 Lexus RX330
Protecting your Lexus's smooth ride starts with this small but critical suspension part.
- A torn bellow on your RX330 will cause your expensive struts to fail prematurely.
- Always replace bellows when you replace your struts; the labor is already being done.
- KYB is a trusted aftermarket brand that is well-regarded by other Lexus owners.
- A wheel alignment is required after replacing front struts and bellows to prevent tire damage.
Is Your RX330's Ride Quality Fading? Check the Bellows.

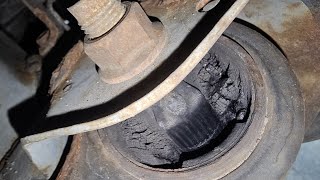

If your 2004-2006 Lexus RX330 feels more bouncy or less controlled than it used to, the struts may be wearing out. Often, the root cause is a failed strut bellow. These simple rubber or plastic boots are your first line of defense for the expensive struts. Over time, they become brittle from heat and exposure, leading to cracks and tears. A quick visual inspection behind the wheel is often 🎬 See a mechanic inspect a high-mileage RX330 for suspension issues. all that's needed to see if they are damaged.
A Note on Air Suspension Models
A small number of RX330s came with a factory-installed air suspension. This guide is for the much more common standard coil spring suspension. Air suspension components are significantly different and more expensive. Many NHTSA complaints for this vehicle relate to air suspension failures. These aftermarket bellows will not fit air suspension struts.
Symptoms of a Failing Strut Bellow
The primary symptom is the physical condition of the part itself. You don't need to be a mechanic to spot a problem.
- Visible Damage: Look for cracks, splits, or completely torn sections in the accordion-like boot. It may look dry-rotted or have pieces missing.
- Secondary Symptoms: A failed bellow doesn't cause immediate issues, but it leads to strut failure. Symptoms of a bad strut include a bouncy, floating ride, clunking noises over bumps, the front end diving during braking, and uneven tire wear called 'cupping'.
Choosing the Right Aftermarket Bellows
When replacing struts on your RX330, it is critical to install new bellows at the same time. Since the labor is the same, reusing old boots is a bad idea. For aftermarket options, quality is tied to the material's durability.
Tier 1: Trusted OE-Style Brands (KYB)
KYB is a well-known Japanese company that manufactures original equipment struts for many automakers, including Toyota and Lexus. Their aftermarket parts are highly regarded and often meet or exceed OEM quality. Forum members on ClubLexus frequently use and recommend KYB struts and accessories for the RX330. A KYB bellow is a reliable choice that is expected to last.
Tier 2: Value Brands (Skyward)
Value-focused brands offer a lower price point. However, there is very little public information or long-term owner reviews available for brands like Skyward regarding this specific part. While a bellow is a simple component, lower-quality materials may not withstand engine bay heat and road conditions, potentially cracking sooner than a premium part. For a part that protects a much more expensive component, spending a few extra dollars on a proven brand like KYB is a wise investment.
Pro Tip: Check for TSB SU001-04
Lexus issued a Technical Service Bulletin (TSB SU001-04) for some early 2004 RX330 models that produced a creaking or knocking noise from the front suspension over bumps. The issue was the front coil spring contacting the upper support. Lexus created an improved upper spring insulator (Part No. 48157-0E010) to fix it. If you are disassembling the strut to replace the bellow, it is the perfect time to install this updated insulator to prevent future noise issues.

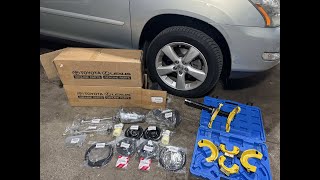

🎬 Watch a complete walkthrough of the front strut replacement process.Cost to Replace Suspension Strut Bellows on a 2004-2006 Lexus RX330
| Part / Service | Estimated Cost (Per Pair) |
|---|---|
| New OEM Bellows | $60 - $80 |
| New Aftermarket Bellows (KYB, Skyward) | $45 - $65 |
| Shop Labor (as part of strut replacement) | $250 - $500 |
| Total (Aftermarket Parts + Labor) | $295 - $565 |
Frequently Asked Questions (FAQ)
Can I drive with a torn strut bellow?
Yes, but it's not recommended for long. A torn bellow itself isn't dangerous, but it guarantees the eventual failure of your strut. A failed strut compromises handling, braking, and overall vehicle safety. It's best to replace it as soon as possible to avoid the higher cost of replacing a prematurely worn-out strut.
Can I replace just the bellow without replacing the whole strut?
Technically yes, but it is a difficult and potentially dangerous job. It requires removing the entire strut and using a spring compressor to disassemble it. Spring compressors are hazardous tools for inexperienced users. 🎬 Watch this step-by-step guide to replacing your front struts. Because of the high labor involved, it only makes sense to replace the bellows as part of a complete strut replacement job.
Should I replace bellows in pairs?
Yes. Suspension components should always be replaced in pairs (both front or both rear) to ensure even performance and predictable handling. Since you'll be replacing them with the struts, you will be doing the job in pairs anyway.
Do I need a wheel alignment after replacement?
Yes, a four-wheel alignment is mandatory after replacing front struts. The process of removing the strut assembly will alter your vehicle's alignment settings. Skipping the alignment will cause rapid and uneven tire wear and can affect handling.
Helpful Videos
Technical Specifications
OEM Part Numbers: 48157-0E010
The key OEM part number is for the updated front coil spring upper insulator mentioned in TSB SU001-04, which should be installed at the same time as the bellow on affected 2004 models. The common aftermarket front bellow kit is KYB SB102.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
