Lexus RX330 Transmission Speed Sensor Guide for 2004-2006 Models
Solve your RX330's erratic speedometer and harsh shifting by understanding and choosing the right replacement speed sensor.
- A bad speed sensor on an RX330 typically causes an erratic speedometer, harsh shifting, and a P0500 check engine code.
- Your Lexus has multiple speed sensors; the transmission output sensor is the one that controls the speedometer.
- This is a simple DIY replacement for most home mechanics, as the sensor is on the outside of the transmission.
- High-quality aftermarket brands like Delphi, Standard Ignition, and Beck Arnley are reliable and cost-effective alternatives to OEM parts.
Understanding Speed Sensor Failures in Your RX330
If you're experiencing strange transmission behavior or an unreliable speedometer in your 2004-2006 Lexus RX330, a failing vehicle speed sensor is a likely culprit. This component is essential for smooth driving, and when it starts to go bad, the symptoms are often very noticeable. It's important to distinguish between the transmission speed sensors and the wheel speed sensors (also called ABS sensors); while they all measure speed, the transmission output sensor is the one primarily responsible for the issues covered here.
Symptoms of a Failing Vehicle Speed Sensor
A bad transmission speed sensor will give you clear warning signs. Ignoring them can lead to unsafe driving conditions and potential damage to your transmission.
- Erratic or Dead Speedometer: The speedometer needle may jump around randomly, read incorrectly, or drop to zero while you are driving.
- Harsh or Delayed Shifting: Your automatic transmission may shift hard, slam into gear, or hesitate to shift at the proper speed. This is because the transmission controller loses its primary reference for vehicle speed.
- Cruise Control Inoperative: The cruise control system relies on a steady speed signal to function. If the sensor fails, the cruise control will usually stop working.
- Check Engine Light: A faulty speed sensor will almost always trigger a Check Engine Light and store a diagnostic trouble code, most commonly P0500. 🎬 Watch: How to fix a P0500 speed sensor code fast. You may also see VSC and TRAC warning lights illuminate on the dashboard.
Diagnose Before You Replace
While the P0500 code points to the speed sensor, forum discussions with other RX330 owners show that the issue can sometimes be caused by damaged wiring or a problem in the instrument cluster (combination meter) itself. It's wise to have the circuit tested to confirm the sensor is the true cause of the failure 🎬 See this breakdown of speed sensor malfunction causes and symptoms. before spending money on parts.
Choosing the Right Aftermarket Speed Sensor
You do not need to buy an expensive OEM sensor from the dealer to fix your RX330. For a component like this, many aftermarket brands offer excellent quality and reliability at a much lower price. We can group the available brands into tiers based on their general reputation in the automotive repair world.
Tier 1: Premium Aftermarket
These brands are known for their high-quality manufacturing and are often trusted by professional mechanics. They are an excellent alternative to OEM.
- Delphi: A major OEM supplier with a strong reputation for electronic components.
- Standard Ignition (SMP): A long-standing, reputable brand for all types of automotive sensors.
- Beck Arnley: Known for sourcing parts from various manufacturers, often including the original OEM supplier, and repackaging them.
Tier 2: Standard Aftermarket
These brands provide reliable, quality parts that meet or exceed OEM specifications and are a great value for most DIY repairs.
- Holstein
- Walker Products
- Vemo
Tier 3: Economy Brands
These are budget-friendly options that get the job done.
- True Tech
For a critical sensor like the VSS, sticking with a Tier 1 or Tier 2 brand is highly recommended. The price difference is usually small, but the quality control and longevity are generally better, ensuring you won't have to do the job twice.
Cost of Replacing the Lexus RX330 Speed Sensor
| Part Type | Estimated Cost |
|---|---|
| New OEM | $135 - $160 |
| New Aftermarket | $68 - $136 |
| Shop Labor | $100 - $160 |
| Total Professional Replacement | $168 - $296 |
Frequently Asked Questions
Where are the speed sensors located on my 2005 RX330?
Your RX330 has multiple speed sensors. The ones that control the transmission and speedometer (input and output sensors) are mounted externally on the transaxle housing. There are also individual wheel speed sensors located at each wheel hub, which are used for the ABS and VSC systems.
What is the difference between an input and output speed sensor?
The input (or turbine) speed sensor measures the speed of the transmission's input shaft. The output speed sensor measures the speed of the output shaft. The output sensor's reading is used to calculate the vehicle's actual road speed for the speedometer and for making final shift decisions.
Can I replace the transmission speed sensor myself?
Yes, this is a very DIY-friendly job for someone with basic tools. The sensor is located on the outside of the transmission and is typically held in by a single bolt. You will need to safely raise the vehicle for access, disconnect the electrical connector, remove the bolt, and swap the old sensor for the new one. Always use a new O-ring.
🎬 Watch: Step-by-step Toyota and Lexus speed sensor repair walkthrough.Are there any recalls for the speed sensor on the RX330?
No, there have been no recalls issued by Lexus or the NHTSA for a faulty vehicle speed sensor on the 2004-2006 RX330.
Helpful Videos
Technical Specifications
OEM Part Numbers: 89413-48010 89413-08010 89413-33010 89411-33010

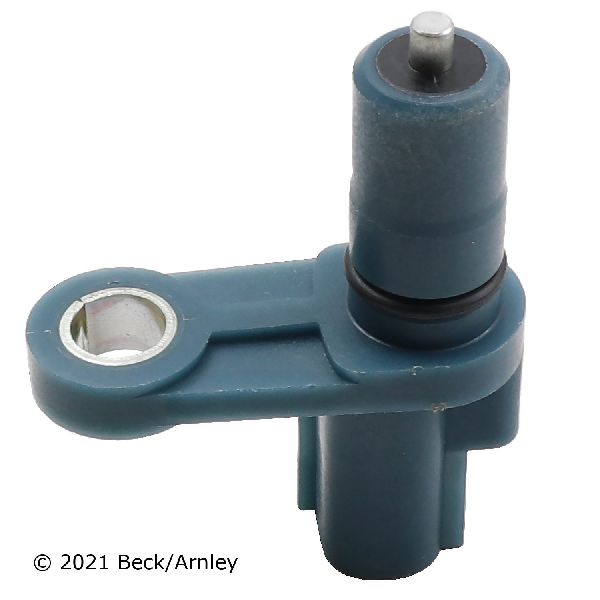

Typically a 2-pin magnetic sensor that mounts to the exterior of the automatic transaxle housing with a single bolt.
