A Mechanic's Guide to the 2004-2006 Scion xA Drive Belts
Learn to spot the signs of a failing belt and choose the right replacement for your xA's engine.
- The 2004-2006 Scion xA has two drive belts: a main accessory belt and a separate power steering V-belt.
- Tension is set manually by moving the alternator; there is no automatic tensioner, which makes DIY replacement more challenging.
- A broken main belt will cause the engine to overheat quickly because it drives the water pump.
- Reputable aftermarket brands like Continental, Dayco, and Gates are excellent, cost-effective alternatives to OEM parts.
Understanding Your xA's Two-Belt System

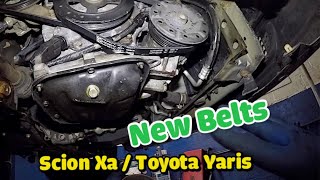

Unlike many modern cars with a single serpentine belt, the 2004-2006 Scion xA uses two separate belts. The main accessory belt is a flat, ribbed belt that drives the alternator, water pump, and A/C. A second, smaller V-belt drives the power steering pump. When shopping for parts, it's important to know which belt you need to replace, or if you should replace both at the same time. 🎬 Watch: Step-by-step guide to replacing both the alternator and power steering belts. This guide focuses primarily on the main accessory drive belt.
Symptoms of a Failing Drive Belt
A worn belt will give you clear warning signs. Ignoring them can leave you stranded with an overheating engine.
- Squealing or Chirping Noises: This is the most common symptom. The noise is often worse on cold mornings or when you first turn on the air conditioner.
- Visible Wear and Tear: Inspect the belt for cracks, fraying, missing ribs, or a glazed, shiny appearance. Any visible damage means the belt is due for replacement.
- Battery Warning Light: If the belt slips or breaks, it can't turn the alternator properly, which will cause the battery light on your dashboard to illuminate.
- Engine Overheating: The most serious symptom. If the belt fails, the water pump stops spinning, and the engine will overheat very quickly. Pull over immediately if you see the temperature gauge rise.
Known Issue: Manual Tensioner and Pulley Problems
The Scion xA does not have an automatic belt tensioner. Tension is set manually by loosening the alternator and prying it into position. 🎬 See how to manually set belt tension on the 1.5L engine. This can make replacement tricky for a DIYer. Furthermore, some owners have reported issues with belts repeatedly failing or flipping over. This is often caused by an underlying problem, such as a misaligned or failing pulley, or a worn-out harmonic balancer (the main crankshaft pulley), which can wobble and throw the belt. If you are replacing belts frequently, have a mechanic inspect all pulleys for wobble or damage.
Choosing the Right Aftermarket Belt: OEM vs. Aftermarket
The original Toyota belts are high quality, often made by brands like Bando or Dayco. However, top-tier aftermarket brands offer comparable, and sometimes superior, performance for the price. For the Scion xA, you do not need to pay a premium for a dealer part to get reliable performance.
Brands like Gates, Continental, and Dayco are well-regarded in the industry and by professional mechanics. They are all considered excellent choices and will perform reliably in your Scion. There is no significant quality difference between these top brands for this specific vehicle, so choosing based on price and availability is a safe bet. Avoid unknown, no-name brands, as the small savings are not worth the risk of being stranded.
| Part / Service | Estimated Cost |
|---|---|
| New Aftermarket Belt (Continental, Dayco, Gates) | $14 - $31 |
| New OEM Belt | $20 - $35 |
| Shop Labor | $75 - $150 |
| Total Professional Replacement (Aftermarket Part) | $90 - $180 |
Frequently Asked Questions
Can I replace the serpentine belt on my Scion xA myself?
Yes, it is possible for a knowledgeable DIYer. However, the 2004-2006 Scion xA does not have an automatic tensioner. You will need to loosen the alternator bolts, use a pry bar to create the correct tension on the new belt, and then tighten the bolts while holding that tension. This can be difficult in the tight engine bay. If you are not comfortable with this process, it is a relatively inexpensive job for a professional mechanic.
🎬 Watch this walkthrough of the 1NZ-FE serpentine belt replacement process.Should I replace both the main belt and the power steering belt at the same time?
It is highly recommended. Both belts are made of the same material and have been exposed to the same conditions. The labor to access one belt makes it cost-effective to replace both simultaneously to prevent a future failure of the second belt.
How often should the serpentine belt be replaced?
There is no strict mileage interval, but belts should be inspected at every oil change. As a general rule, consider replacing the belts every 60,000 to 90,000 miles, or sooner if you see any signs of cracking, fraying, or other wear. Age is also a factor; a belt on a 15-year-old car should be replaced regardless of mileage.
What is a 'gatorback' belt and do I need one?
The 'Gatorback' was a popular belt made by Goodyear known for its unique cogged design that helped reduce noise on problem vehicles. Goodyear's belt division was acquired by Continental, and the design is now sold under the Continental Elite line. While it's a high-quality belt, it is not strictly necessary for the Scion xA. A standard belt from Continental, Gates, or Dayco will work perfectly well.
Helpful Videos
Technical Specifications
OEM Part Numbers: 90916-02556 90916-02705 90916-02575

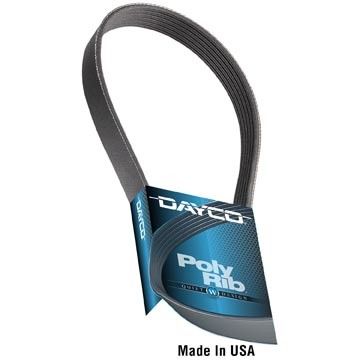

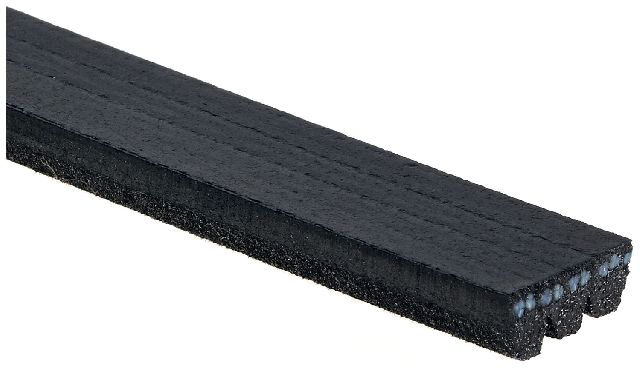

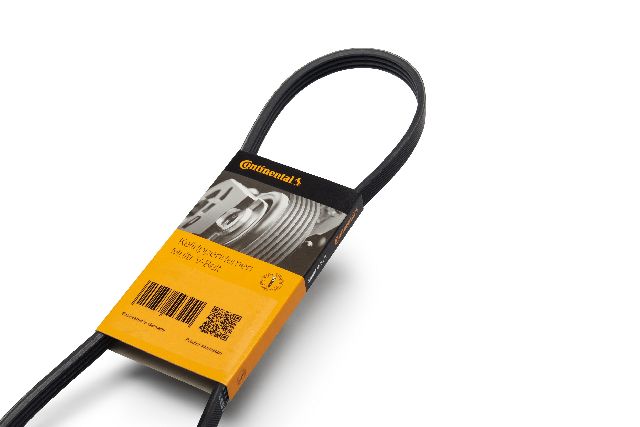

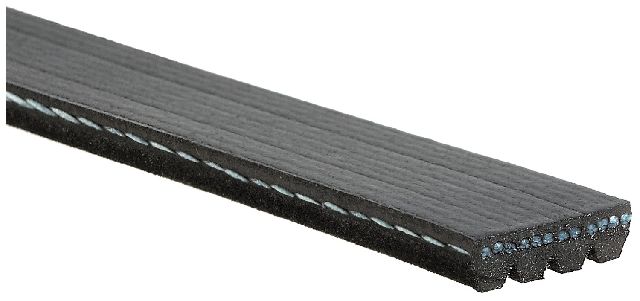

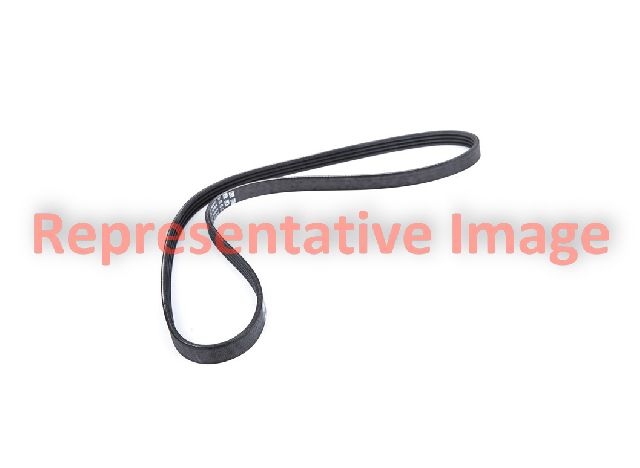

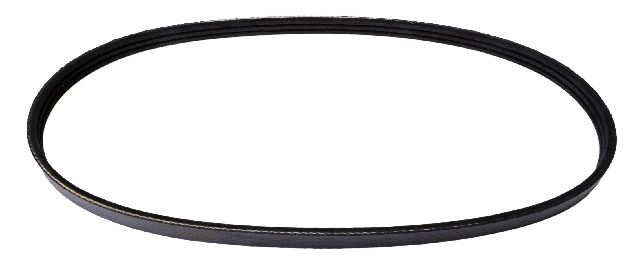

The main accessory belt (for Alternator, Fan, Water Pump, A/C) is a 4-rib belt, approximately 47.6 inches (1205-1210mm) long. The power steering belt is a 3-rib belt, approximately 33.5 inches (850mm) long. Always verify the specific part number for your vehicle.
