Scion xA Spark Plug Replacement Guide for 2004-2006 Models
Keep your 1.5L 1NZ-FE engine running smoothly with the right spark plugs and avoid common misfire issues.
- For best results, use OEM-quality Iridium spark plugs from NGK or Denso.
- Symptoms of failure include rough idle, poor gas mileage, and a check engine light with P030X codes.
- Replacing spark plugs on the Scion xA is an easy DIY job that can be done in under an hour with basic tools.
- While plugs are often pre-gapped, it's wise to verify the gap is 0.032 inches before installing.
Signs of Failing Spark Plugs in Your Scion xA
When your spark plugs start to wear out, your xA will give you several warning signs. The most common issue is an engine misfire, which can make the engine run rough, hesitate during acceleration, or even cause it to shake at idle. You might also notice a significant drop in fuel economy, as worn plugs can't burn fuel efficiently. Difficulty starting the engine, especially in cold weather, is another classic symptom. If the problem is bad enough, the check engine light will illuminate, often with codes like P0300 (random misfire) or P0301-P0304 for specific cylinders.
🎬 Watch this video to learn more about bad spark plug symptoms.Choosing the Right Aftermarket Spark Plugs
For the 2004-2006 Scion xA, the original equipment (OEM) spark plugs were typically made by Denso or NGK, both highly respected Japanese brands. When choosing aftermarket replacements, you can confidently stick with these brands for OEM-level quality and performance.
Spark Plug Brand Tiers for Scion xA
| Tier | Brands | Description |
|---|---|---|
| Tier 1: OEM Quality | NGK, Denso | These brands are the original suppliers for most Japanese vehicles, including your Scion. Choosing their Iridium or Platinum options provides the best performance and longest life, often exceeding 80,000 miles. They are a direct-fit replacement and highly recommended by owners and mechanics. |
| Tier 2: Reliable Alternatives | Bosch, Champion | These are well-known brands that offer quality spark plugs, often at a slightly lower price point. Their platinum and double platinum plugs are a good upgrade from standard copper plugs and provide reliable service. Some owners have reported issues with certain Bosch models, so sticking to NGK or Denso is often the safest bet. |
| Tier 3: Budget-Friendly | Autolite, Motorcraft | These brands offer basic copper or platinum plugs that will get the job done. They are a cost-effective option but will likely have a shorter service life than Iridium plugs and may need to be replaced more frequently, around every 30,000 miles. |
Pro Tip: Iridium and Platinum plugs offer the longest service life, often lasting up to 100,000 miles, while standard copper plugs are cheaper but may need changing every 30,000 miles. For the 1NZ-FE engine in the xA, NGK and Denso Iridium plugs are a popular and reliable choice among owners.
Known Issues, Recalls, or TSBs
Searches for recalls and Technical Service Bulletins (TSBs) related to spark plugs on the 2004-2006 Scion xA did not yield any specific results. The ignition system on this vehicle is generally considered reliable. However, there was a significant recall for the airbag control module on these models, which could cause the airbags to deactivate or deploy unexpectedly. This is unrelated to the spark plugs but is an important safety issue for all 2004-2006 xA owners to be aware of.
Frequently Asked Questions (FAQ)
What are the best spark plugs for a 2004-2006 Scion xA?
The best spark plugs are typically the OEM brands, NGK and Denso. Many owners prefer NGK Iridium IX or Denso Iridium plugs for their longevity and performance, which matches or exceeds the original factory parts.
How often should I replace the spark plugs on my Scion xA?
The replacement interval depends on the type of plug. Standard copper plugs should be checked or replaced around 30,000 miles. Long-life Iridium or Platinum plugs can last much longer, with some manufacturers suggesting intervals as high as 100,000-120,000 miles. However, many owners recommend checking them around 60,000 miles to be safe.
Is it difficult to change the spark plugs myself?
No, for the Scion xA, this is a very straightforward DIY job. The spark plugs are easily accessible on top of the 1NZ-FE engine. You will need a ratchet with an extension, a 10mm socket, and a spark plug socket. The entire job can usually be completed in under an hour.

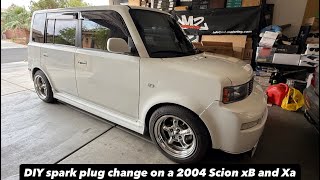

🎬 See how easy it is to change your own spark plugs.Do I need to gap the new spark plugs?
Most modern Iridium and Platinum spark plugs from brands like NGK and Denso come pre-gapped. However, it is always a good practice to double-check the gap with a feeler gauge before installation to ensure it wasn't altered during shipping. The correct gap for a stock Scion xA is typically 0.032 inches.

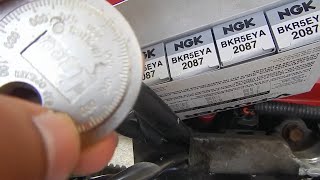

🎬 Follow this step-by-step guide to replace your Scion's spark plugs.What do misfire codes like P0300 or P0301 mean?
A P0300 code means "Random/Multiple Cylinder Misfire Detected." If you get a code like P0301, P0302, etc., the last digit indicates the specific cylinder that is misfiring (e.g., P0301 is cylinder 1). Worn-out spark plugs are one of the most common causes of these codes.
Helpful Videos
Technical Specifications
OEM Part Numbers: 90919-01176 90919-01244 90080-91229 90919-T1002 90080-91084
Engine: 1.5L 1NZ-FE. Quantity: 4 spark plugs required. Recommended Plug Type: Iridium or Platinum. Recommended Gap: 0.032 inches (0.8mm). Socket Size: 5/8" (16mm) spark plug socket.
