A Guide to the Engine Intake Manifold Gasket for the 2004-2007 Buick Rainier
Solving rough idles and check engine lights starts with the right intake manifold gasket.
- You must correctly identify your engine; the 4.2L I6 and 5.3L V8 use different, non-interchangeable gasket sets.
- For the 5.3L V8, choose a Fel-Pro PermaDryPlus gasket with a metal carrier (MS98016T) for a more durable repair than the original plastic design.
- Symptoms are typically a rough idle, poor performance, and a Check Engine Light with lean codes (P0171, P0174).
- While the intake is off on a V8, it is highly recommended to also replace the knock sensors and harness to save on future labor costs.
Is Your Rainier's Intake Gasket Failing?
A bad intake manifold gasket is a common issue that can cause a range of frustrating problems. Because this gasket seals the air intake system, a failure almost always results in a vacuum leak. Your engine's computer expects a certain amount of air, and when extra, un-measured air gets in, it throws the whole system off balance.
Key Differences: 4.2L I6 vs. 5.3L V8
It is critical to identify your engine before buying a gasket set, as they are not interchangeable. The 5.3L V8 has a well-known issue with its original factory gaskets. The plastic carrier material can become brittle and crack over time from engine heat and exposure to ethanol in modern fuels. The 4.2L I6 does not have this specific widespread issue with its original gasket design.
Symptoms of a Bad Intake Manifold Gasket
🎬 Watch a breakdown of the top 5 gasket failure signs.Common Signs of Failure
- Rough Idle: The engine may shake or run unevenly when stopped.
- Check Engine Light: A vacuum leak will often trigger codes like P0171 (System Too Lean Bank 1 🎬 Watch this P0171 diagnosis and 4.2L gasket repair walkthrough.), P0174 (System Too Lean Bank 2, on V8), or P0300 (Random/Multiple Misfire).
- Poor Engine Performance: You may notice hesitation during acceleration and reduced power.
- Decreased Fuel Economy: The engine's computer tries to compensate for the lean condition by adding more fuel, hurting your gas mileage.
- Engine Overheating: On some engine designs where coolant passes through the intake, a gasket failure can lead to coolant leaks and overheating.
Choosing the Right Aftermarket Gasket Set
When it comes to gaskets, the brand you choose can make a big difference, especially for the 5.3L V8.
| Brand Tier | Brands | Honest Assessment for Your Rainier |
|---|---|---|
| Premium / Upgraded | Fel-Pro | For the 5.3L V8, the Fel-Pro PermaDryPlus (Part MS98016T) is widely considered an upgrade over the original. It uses a durable aluminized steel carrier instead of the failure-prone plastic one. For both the 4.2L and 5.3L, Fel-Pro is a top-tier choice known for excellent materials and design for real-world repair conditions. |
| OEM-Equivalent | ACDelco | ACDelco is the original equipment manufacturer for GM. Their gaskets will restore original performance and fit perfectly. While their updated designs are reliable, the original plastic carrier design on the V8 was a known weak point. For the 4.2L, ACDelco is an excellent, reliable choice. |

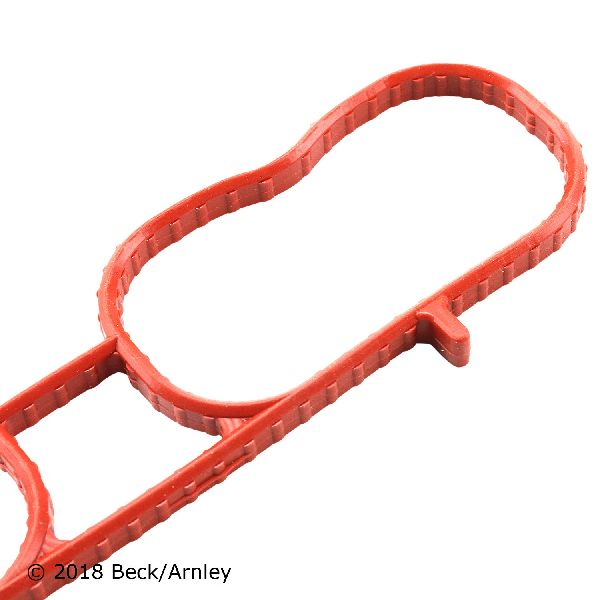

| Standard Aftermarket | Beck Arnley, Reinz, Victor Gaskets, Apex | These brands provide a cost-effective solution and generally meet OEM specifications. They are a good choice for a standard repair, especially on the 4.2L engine where the original design is not as problematic. Beck Arnley often re-packages parts from various sources, so quality can be consistent with OEM. |
Pro Tip for V8 Owners
If you have the 5.3L V8, strongly consider the Fel-Pro PermaDryPlus steel carrier gasket set. The small additional cost is well worth the peace of mind and protection against a future failure of the same part.
Frequently Asked Questions
Is the intake gasket for the 4.2L I6 the same as the 5.3L V8?
No. They are completely different engines with different intake manifold designs. You must purchase the specific gasket set for your engine. The V8 uses two separate gaskets (one for each cylinder bank), while the I6 uses a single gasket assembly.
Should I replace anything else at the same time?
Yes. While the intake manifold is off, it's a great time to inspect and replace other parts. On the 5.3L V8, the knock sensors and knock sensor harness are located under the intake manifold and should be replaced to avoid a difficult future repair. Also, consider replacing the thermostat and cleaning the throttle body on either engine.
Is Fel-Pro really a better choice than ACDelco for my V8?
For the 5.3L V8, the aftermarket Fel-Pro PermaDryPlus gasket with a metal carrier is an improved design that directly addresses the failure point of the original plastic GM gasket. While ACDelco has updated their parts, the Fel-Pro design is widely praised by mechanics as the superior, long-term solution for this specific problem.
Can I install the gasket myself?
This is a moderately difficult job for an experienced DIY mechanic. The 4.2L engine is more straightforward. The 5.3L V8 is more complex. The process involves removing fuel lines, electrical connectors, and the throttle body. It is crucial to follow the correct bolt tightening sequence and torque specifications to ensure the new gasket seals properly. If you are not comfortable with this level of work, it is best to have it done by a professional mechanic.
Helpful Videos
Technical Specifications
OEM Part Numbers: 89060413
Key aftermarket part number for the 5.3L V8 is Fel-Pro MS98016T, which features an upgraded steel carrier. Ensure the correct set is purchased based on your 4.2L or 5.3L engine.
