A Guide to the 2004-2007 Buick Rainier Engine Valve Cover Gasket Set
Stop oil leaks and engine misfires by choosing the right valve cover gasket set for your Rainier's 4.2L or 5.3L engine.
- A burning oil smell is a primary indicator of a failed valve cover gasket on your Rainier.
- If you have an engine misfire, check for oil in the spark plug wells; this is a very common failure requiring gasket replacement.
- For a durable repair, choose a quality aftermarket kit from brands like Fel-Pro or Victor Reinz that includes all seals and grommets.
- If you have a 5.3L V8 with high oil consumption, consider upgrading to the revised OEM left valve cover as noted in TSB 10-06-01-008E.
Is Your Buick Rainier Leaking Oil? Check the Valve Cover Gasket
If you own a 2004-2007 Buick Rainier, you might notice a burning oil smell or see smoke coming from the engine bay. A common cause for this is a failed engine valve cover gasket. This gasket hardens and cracks over time due to engine heat, allowing oil to leak out. On the Rainier, this oil often drips onto the hot exhaust manifold, causing the smell and smoke. Another very common issue, especially on the 4.2L inline-six engine, is for the spark plug tube seals to fail. This allows oil to fill the spark plug wells, which can ruin the ignition coils and cause engine misfires.
🎬 See how to safely remove oil from your spark plug wells.Known Issue: Oil in Spark Plug Tubes
A very common problem on the Rainier's 4.2L engine is a leaking valve cover gasket that allows oil to seep into the spark plug tubes. This oil soaks the ignition coil boots, causing the rubber to swell and degrade. This leads to engine misfires (codes P0300-P0312). If you find oil when changing your spark plugs or ignition coils, you must replace the valve cover gasket set to fix the root cause.
🎬 Learn more about why oil leaks into spark plug tubes.Choosing the Right Aftermarket Gasket Set
You don't need to buy an expensive OEM gasket from the dealer. Many aftermarket brands offer excellent quality, and some are even considered improvements over the original design. Gasket sets for your Rainier should include the main valve cover gasket, spark plug tube seals, and new bolt grommets. Here’s a breakdown of reliable brands.
Premium Aftermarket Brands
- Fel-Pro: Widely regarded by mechanics as a top-tier aftermarket brand. Fel-Pro gaskets, especially their PermaDry line, are known for excellent materials and design improvements that help prevent future leaks. They are a trusted choice for a long-lasting repair.
- Victor Reinz: Another high-quality brand that is often an Original Equipment Manufacturer (OEM) for many European cars. Their gaskets are known for being made of soft, pliable rubber that seals well. This is a solid alternative to Fel-Pro.
Quality Mid-Tier & OEM-Equivalent Brands

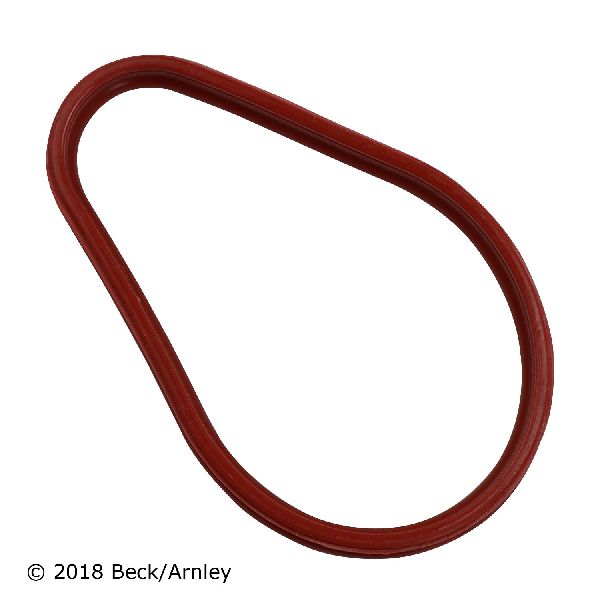

- Beck Arnley: This brand often acts as a re-packager of OEM parts. You might receive a gasket made by the original factory supplier in a Beck Arnley box. This makes them a reliable choice if you want OEM quality without the dealer price tag.

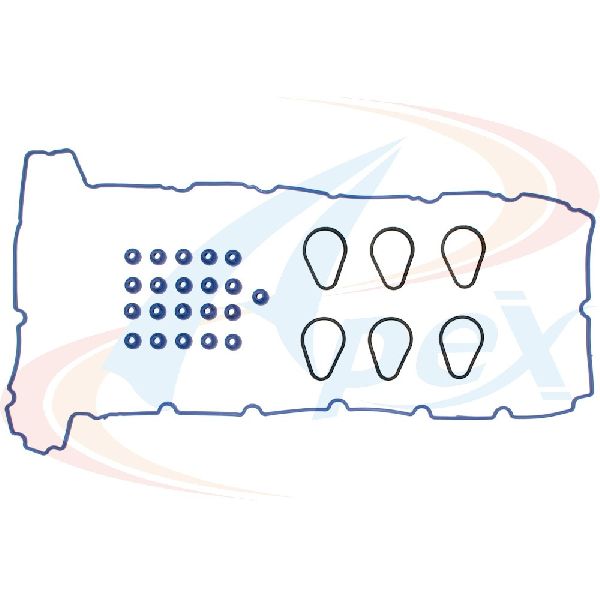

- Apex: This brand is available and offers a cost-effective solution. While not as well-known as Fel-Pro or Victor Reinz, it can be a suitable option for budget-conscious repairs.
Pro Tip: 5.3L V8 Owners
For 2007-2011 GM trucks with the 5.3L V8, a Technical Service Bulletin (TSB 10-06-01-008E) was issued for excessive oil consumption. The fix involves replacing the left-side (driver's side) valve cover with an updated design that has a better PCV baffle system. If your 5.3L Rainier is consuming oil, consider upgrading to the revised valve cover (GM Part #12570427 or #12642655, depending on year) instead of just replacing the gasket.
Aftermarket vs. OEM Gasket Costs
Here is an estimated cost breakdown for replacing the valve cover gasket set on a 2004-2007 Buick Rainier. Labor costs can vary significantly based on which engine you have (the 4.2L I6 is more labor-intensive than the 5.3L V8 for this job) and your location.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Gasket Set | $22 - $61 |
| New OEM Gasket Set | $30 - $55 |
| Shop Labor | $295 - $825 |
| Total Professional Replacement | $427 - $875 |
Frequently Asked Questions (FAQ)
Can I replace just the spark plug tube seals?
While the tube seals are often the main point of failure, they come as part of a complete valve cover gasket set. Since you have to remove the valve cover to access them, you should always replace the main gasket and bolt grommets at the same time to ensure a complete, leak-free seal.
Is this a difficult DIY job?
For the 4.2L engine, the job is moderately difficult. It requires removing the air intake, the Powertrain Control Module (PCM), and carefully navigating around fuel and A/C lines. For the 5.3L V8, access is generally easier. If you are an experienced DIYer with a good set of tools, it is feasible. Beginners may find it challenging.
🎬 Watch this step-by-step guide for replacing the gasket yourself.Do I need to use RTV sealant with the new gasket?
Most modern rubber gaskets are designed to be installed dry. However, it is standard practice to apply a small dab of RTV silicone sealant at the sharp corners where the timing cover meets the cylinder head. This helps prevent small leaks at these critical junction points.
Are there any recalls for this part?
No, there have been no recalls issued by the NHTSA for the engine valve cover gaskets on the 2004-2007 Buick Rainier. The common failures are due to age and heat degradation of the gasket material.
Helpful Videos
Technical Specifications
OEM Part Numbers: 89017827 (4.2L, 2006-2007) 89017729 (4.2L, 2004-2005) 12637683 (5.3L) 12570427 (5.3L, Left Side Cover Assembly - TSB Update)
Kit typically includes the valve cover gasket, spark plug tube seals, and bolt grommets. Material is typically molded rubber or silicone.
