A Guide to the 2004-2007 Ford Freestar Engine Cylinder Head Temperature Sensor
Learn about this critical sensor that protects your Freestar's engine from overheating damage.
- The Freestar uses a CHT sensor, not an ECT sensor, which can save your engine from damage during coolant loss.
- A P1299 trouble code is a critical warning that your engine's overheat protection system is active; stop driving immediately.
- Replacement is complex due to the sensor's location under the intake manifold and is not recommended for beginner DIYers.
- Before replacing the sensor, check for water intrusion near the PCM, a known issue that can cause similar symptoms.
Understanding the CHT Sensor on Your Freestar
The 3.9L and 4.2L V6 engines in the 2004-2007 Ford Freestar use a specific type of sensor to monitor engine temperature. Instead of a typical Engine Coolant Temperature (ECT) sensor that reads coolant, it uses a Cylinder Head Temperature (CHT) sensor. This sensor reads the metal temperature of the engine's head directly. This design provides a crucial advantage: it can detect an overheating condition even if there is a total loss of coolant, protecting your engine from severe damage like warped cylinder heads. When the sensor detects dangerously high temperatures, it tells the computer to enter a protective "limp mode," which reduces engine power and flashes the temperature light to get the driver's attention.
Symptoms of a Failing CHT Sensor
When the CHT sensor fails, it can send incorrect information to the engine's computer, leading to several noticeable problems:
- Check Engine Light: This is often the first sign. A code scan might reveal P1299, which means the engine's overheat protection mode is active.
- Engine Overheating: The sensor may fail to tell the computer to turn on the cooling fans when needed.
- Reduced Engine Power: The computer may trigger a fail-safe mode, limiting engine speed and power to prevent damage.
- Poor Fuel Economy: If the sensor wrongly reports that the engine is cold, the computer will enrich the fuel mixture, wasting gas.
- Rough Idle or Difficulty Starting: Incorrect temperature readings can throw off the ideal air-fuel mixture, affecting idle quality and startup.
Vehicle-Specific Issue: Check for Cowl Leaks
A known issue for the 2004-2007 Freestar is water leaking from the cowl area onto the Powertrain Control Module (PCM). According to Ford's Technical Service Bulletin (TSB) 06-14-10, this can cause a wide range of problems, including symptoms that mimic a bad sensor, like engine overheating and various diagnostic codes. Before replacing parts, it's wise to check the PCM and its connector for any signs of water damage or corrosion.
Choosing the Right Aftermarket CHT Sensor
For a part this critical to engine health, choosing a quality replacement is important. Here’s a look at the available brands:
- Standard Ignition (SMP): Often considered a top-tier aftermarket brand, Standard produces parts that meet or exceed original specifications and are known for their robust design. They are a reliable choice for a durable repair.
- Walker Products: With a long history in the automotive aftermarket, Walker is an ISO-certified manufacturer that engineers sensors to match OE fit and performance. This brand represents a solid, quality option.
- Global Parts: This brand typically falls into the standard or value-priced category. It provides a functional replacement that meets basic requirements for drivers on a tighter budget.
Cost to Replace the CHT Sensor
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Part | $23.90 - $26.83 |
| New OEM Part (Ford) | $35 - $60 |
| Shop Labor | $250 - $400 |
| Total Estimated Cost | $275 - $430 |
Note: Labor costs are estimated based on the 2-3 hours required for this job. Prices can vary by location and shop.
Pro Tip: The Right Tool for the Job
The CHT sensor on many Ford engines has a long electrical connector housing. A standard deep socket may not be deep enough to fit over it. To avoid frustration, make sure you have an extra-deep 19mm socket or a specialty tool designed for these sensors before you begin the job.
🎬 Watch this video for a helpful guide on replacing the sensor.Frequently Asked Questions
Where is the CHT sensor located on the 2004-2007 Ford Freestar?
The CHT sensor is located in one of the cylinder heads, underneath the upper and lower intake manifolds. Accessing it requires removing these manifolds, making the replacement more involved than a typical sensor.
Can I drive my Ford Freestar with a bad CHT sensor?
It is not recommended. If the sensor is faulty and the P1299 code is active, it means your engine is either overheating or the computer thinks it is. Continuing to drive could lead to severe and expensive engine damage. The limp mode is designed only to get you to a safe location or a repair shop immediately.
What is the difference between a CHT and an ECT sensor?
An ECT (Engine Coolant Temperature) sensor measures the temperature of the engine coolant. A CHT (Cylinder Head Temperature) sensor, used in your Freestar, measures the actual temperature of the engine's metal cylinder head. This allows it to detect an overheat condition even if all the coolant has leaked out, offering superior engine protection.
Is replacing the CHT sensor a DIY job?
For most home mechanics, this is a challenging job. Because the sensor is located under the intake manifolds, the repair requires significant disassembly. It is considered a DIY job only for experienced individuals who are comfortable with more advanced engine work. 🎬 See a demonstration of the cylinder head temperature sensor replacement process. For others, professional installation is recommended.
Helpful Videos
Technical Specifications
OEM Part Numbers: XL3Z-6G004-AA 8L3Z-6G004-A 9L8Z-6G004-C F65Z-6G004-AB 3L7Z-6G004-BA

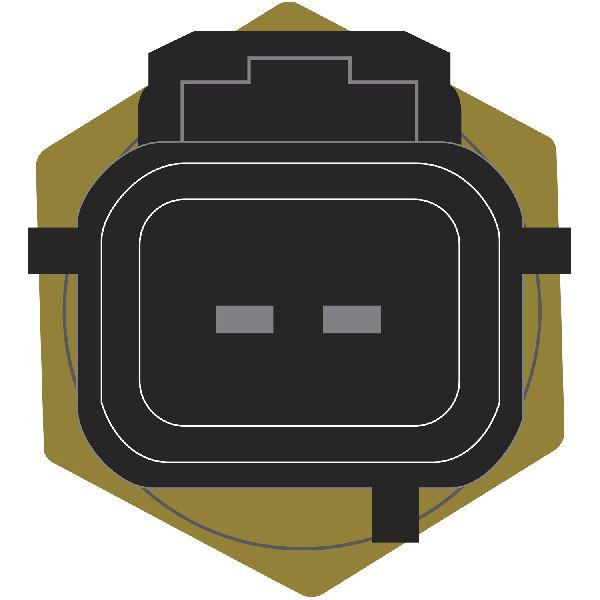

Location: Cylinder Head, under intake manifold Connector: 2-Pin Thread Size: M12-1.5 Socket Size: 19mm (extra deep recommended)
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
